Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Lanphan
-
Voltage:
-
380V
-
Power:
-
9000, 9KW-18KW/380V.50Hz
-
Weight:
-
580 KG
-
Dimension(L*W*H):
-
1850*1050*2100mm
-
Product Name:
-

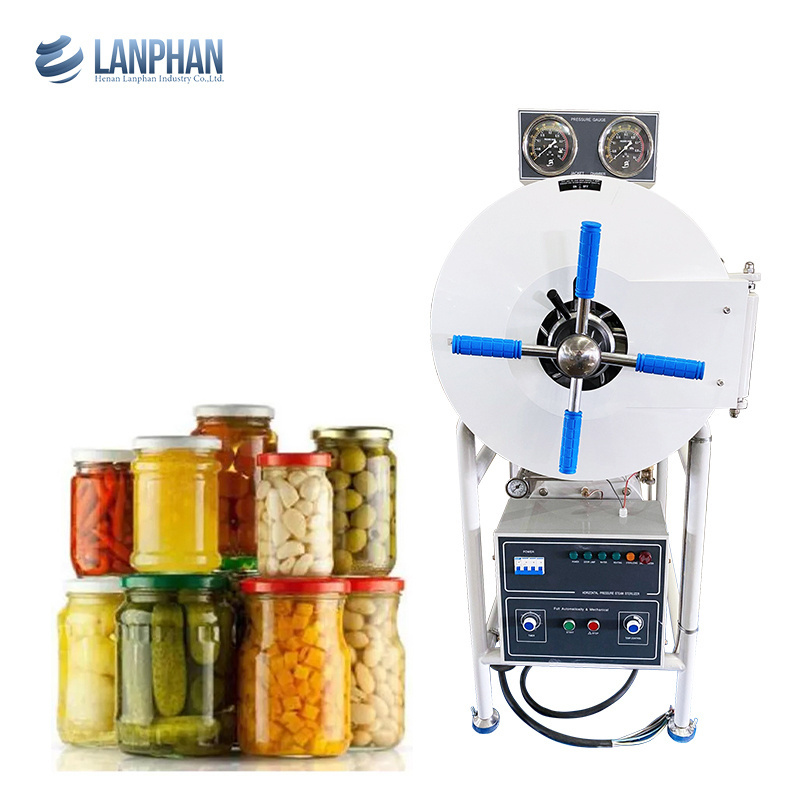

Horizontal autoclave
-
Model technical data:
-
WS-YDA
-
Sterilizing Chamber volume:
-
150L-500L
-
Working pressure:
-
0.22MPa
-
Working temperature:
-
134℃
-
Adjustment of temperature:
-
40℃~134℃
-
Time for sterilization:
-
0~60min
-
Time for drying:
-
0~60min
-
Heat average:
-
≤±2℃
Quick Details
-
Applicable Industries:
-
Mushroom Growing, Cannned Food, clinical experiments, Mushroom Substrate, solution culture medium, Research institutes
-
Marketing Type:
-
Hot Product 2023
-
Core Components:
-
microcomputer control system, steam generator, power supply system, shell, Sterilizing Chamber
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Lanphan
-
Voltage:
-
380V
-
Power:
-
9000, 9KW-18KW/380V.50Hz
-
Weight:
-
580 KG
-
Dimension(L*W*H):
-
1850*1050*2100mm
-
Product Name:
-
Horizontal autoclave
-
Model technical data:
-
WS-YDA
-
Sterilizing Chamber volume:
-
150L-500L
-
Working pressure:
-
0.22MPa
-
Working temperature:
-
134℃
-
Adjustment of temperature:
-
40℃~134℃
-
Time for sterilization:
-
0~60min
-
Time for drying:
-
0~60min
-
Heat average:
-
≤±2℃
Application Field
Product Structure
Product Parameters
| Technical data | WS-150YDA | WS-200YDA | WS-280YDA | WS-400YDA | WS-500YDA |
| Sterilizing chamber | 150L | 200L | 280L | 400L | 500L |
| volume | φ440×1000mm | φ515×1000mm | φ600×1000mm | Φ700×1100mm | Φ700×1300mm |
| working pressure | 0.22MPa | ||||
| working temperature | 134℃ | ||||
| Adjustment of temperature | 105℃ - 134℃ | ||||
| Time of sterilization | 0-60 min | ||||
| Time of drying | 0-60 min | ||||
| Heat average | ≤±2℃ | ||||
| Power | 9KW/380V 50Hz | 9KW/380V 50Hz | 12KW/380V 50Hz | 18KW/380V 50Hz | 18KW/380V 50Hz |
| Dimension | 1400×600×1300 | 1400×670×1650 | 1400×770×1780 | 1430×880×1830 | 1800×900×1820 |
| Transport dimension | 1550×750×1850 | 1560×820×1850 | 1680×920×2100 | 1600×1050×2100 | 1850×1050×2100 |
| G.W/N.W | 320/240 KG | 350/260 KG | 465/365 KG | 530/420 KG | 580/470 KG |
