Quick Details
-
Warranty:
-
30 Years
-
Brand Name:
-
JA Solar
-
Model Number:
-
JAM54D41-LB 430-455
-
Place of Origin:
-
China
-
Panel Dimensions:
-
1762*1134* 30 mm
-
Product name:
-
N type Bifacial doubla glass JA solar
-
Solar cell:
-
Mono N type 16BB
-
Junction Box:
-
IP68 ,3 Diodes
-
Weight:
-
22 Kg
-
Dimensions:
-
1762*1134*30mm
-
Front /Back Glass:
-
1.6mm/1.6mm
-
Cable:
-
4.0m (12AWG)
-
Connector:
-
MC4 EVO2A
-
No. of cells:
-
108(6*18) Cells
-
Cable length:
-
Portait:300mm(+)/400mm(-);800mm(+)/800mm(-)
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass, All Black, N-TYPE, TOPCON
-
Panel Efficiency:
-
22.0%
-
Warranty:
-
30 Years
-
Brand Name:
-
JA Solar
-
Model Number:
-
JAM54D41-LB 430-455
-
Place of Origin:
-
China
-
Panel Dimensions:
-
1762*1134* 30 mm
-
Product name:
-
N type Bifacial doubla glass JA solar
-
Solar cell:
-
Mono N type 16BB
-
Junction Box:
-
IP68 ,3 Diodes
-
Weight:
-
22 Kg
-
Dimensions:
-
1762*1134*30mm
-
Front /Back Glass:
-
1.6mm/1.6mm
-
Cable:
-
4.0m (12AWG)
-
Connector:
-
MC4 EVO2A
-
No. of cells:
-
108(6*18) Cells
-
Cable length:
-
Portait:300mm(+)/400mm(-);800mm(+)/800mm(-)

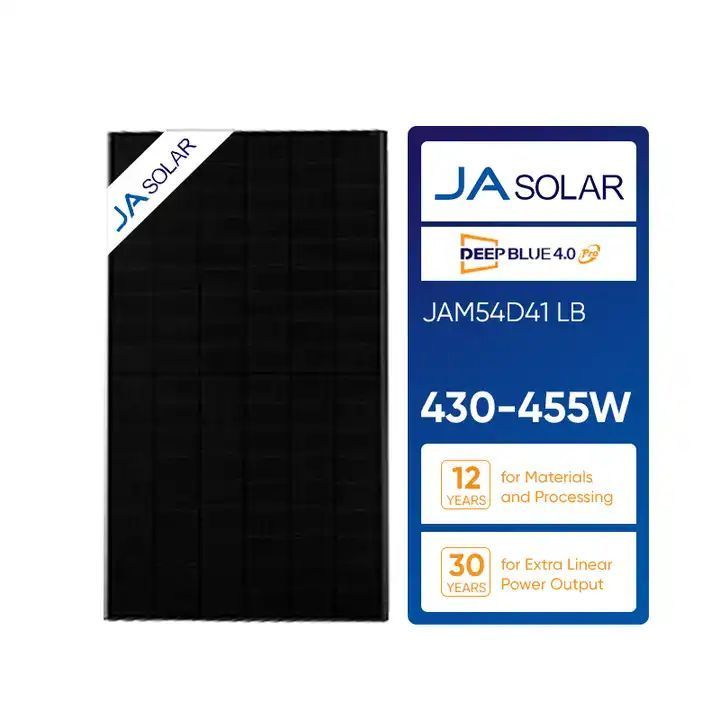

JA Solar 435W JAM54D41-435 LB Deep Blue Pro Full Black glass-glass n-type bifacial 430W 435W Solar panel with 30 year guarantee
Product Description
Specification
|
Panel Dimensions
|
1762*1134* 30 mm
|
|
Warranty
|
30 Years
|
|
Solar cell
|
108(6*18) Cells Mono N type 16BB
|
|
Junction Box
|
IP68 ,3 Diodes
|
|
Weight
|
22 Kg
|
|
Dimensions
|
1762*1134*30mm
|
|
Front /Back Glass
|
1.6mm/1.6mm
|
|
Cable
|
4.0m (12AWG)
|
|
Connector
|
MC4 EVO2A
|
|
Cable length
|
Portait:300mm(+)/400mm(-);800mm(+)/800mm(-)
Landscape:1200mm(+)/1200mm(-)
|
|
Electrical Characteristics
|
|
|
|
|
|
|
||||||
|
Type
|
JAM54D41-430-455/LB
|
|
|
|
|
|
||||||
|
Maximum Power (Pmax/W)
|
430
|
435
|
440
|
445
|
450
|
455
|
||||||
|
Open Circuit Voltage-VOC(V)
|
38.5
|
38.7
|
38.9
|
39.1
|
39.3
|
39.5
|
||||||
|
Maximum Power Voltage-VMPP(V)
|
32.13
|
32.29
|
32.47
|
32.65
|
32.82
|
33.00
|
||||||
|
Short Circuit Current-ISC(A)
|
14.14
|
14.23
|
14.31
|
14.40
|
14.48
|
14.56
|
||||||
|
Maximum Power Current-IMPP(A)
|
13.39
|
13.47
|
13.55
|
13.63
|
13.71
|
13.79
|
||||||
|
Module Efficiency (%)
|
21.5
|
21.8
|
22.0
|
22.3
|
22.5
|
22.8
|
||||||
|
Power Tolerance
|
0~+5W
|
|
|
|
|
|
||||||
|
Temperature coefficients of Isc
|
+0.046%/℃
|
|
|
|
|
|
||||||
|
Temperature coefficients of Voc
|
-0.260%/℃
|
|
|
|
|
|
||||||
|
Temperature coefficients of Pmax
|
-0.300%/℃
|
|
|
|
|
|
||||||
|
STC
|
Irradiance 1000W/m², Cell Temperature 25℃, AM=1.5
|
|
|
|
|
|
||||||
Packing & Delivery
Packing Configuration: 36pcs/pallet, 936pcs/40HQ container
