Quick Details
-
Model Number:
-
PSWH
-
Specification:
-
1/4"-8"
-
Length:
-
10-100M
-
Thickness:
-
2-12MM
-
Standard:
-
ISO9001:2008
-
Product name:
-

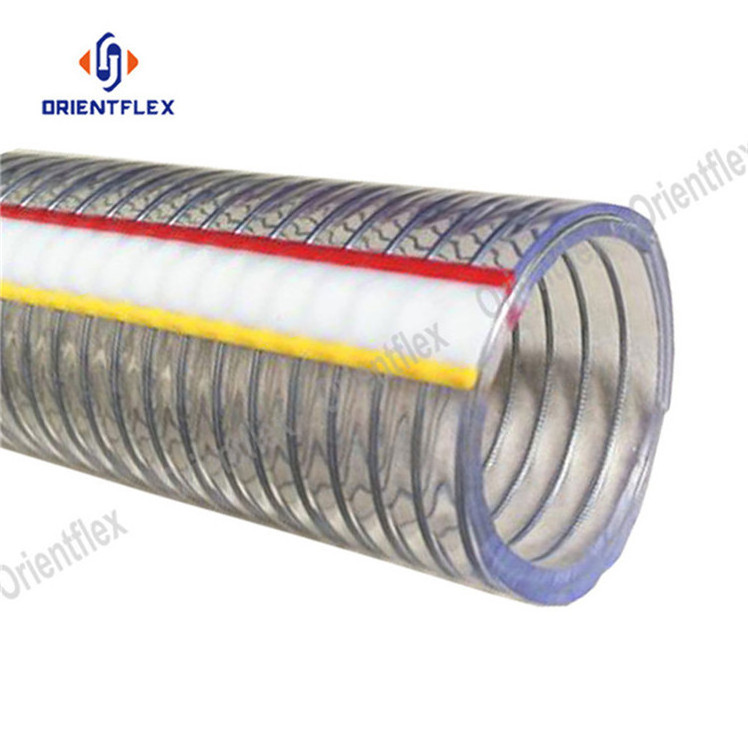

PVC Steel Wire Hose
-
Tube and cover:
-
Transparent PVC
-
Reinforcement:
-
Steel wire spiral
-
Application:
-
Suction and discharge of water,oil and powdery articles
-
Feature:
-
Anti-UV,anti-aging,long working life
-
Color:
-
Blue/Black/Red/White Customized
-
Working temperature:
-
-50℃ to +65℃
-
OEM:
-
Accpet
-
Sample:
-
Availiable
-
Packing:
-
Customized Packing
Quick Details
-
Processing Service:
-
Cutting
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Orientflex
-
Model Number:
-
PSWH
-
Specification:
-
1/4"-8"
-
Length:
-
10-100M
-
Thickness:
-
2-12MM
-
Standard:
-
ISO9001:2008
-
Product name:
-
PVC Steel Wire Hose
-
Tube and cover:
-
Transparent PVC
-
Reinforcement:
-
Steel wire spiral
-
Application:
-
Suction and discharge of water,oil and powdery articles
-
Feature:
-
Anti-UV,anti-aging,long working life
-
Color:
-
Blue/Black/Red/White Customized
-
Working temperature:
-
-50℃ to +65℃
-
OEM:
-
Accpet
-
Sample:
-
Availiable
-
Packing:
-
Customized Packing
Construction:
Tube and cover: transparent PVC
Reinforcement: steel wire spiral
Application:
The PVC steel wire spring hose is widely used for suction and discharge of water,oil and powdery articles in the industries,agriculture,engineering, foodstuffs and sanitation lines,the hose
used for foodstuffs is made of special food grade pvc.It is nontoxic,light,without odor and transparent.
The food grade PVC steel wire spring hose can be used for conveying milk,beverage,distilled liquor,beer,jam and other foods.
We can also insert the cooper wire into hose.This hose can avoid the block of the flowing in the hose due to static,and protect users from getting electric shock or electric current impingement.
Characteristic:
1.Light weight,flexible with small bending radius.
2.Durable against the external impact,chemical and climate
3.Transparent, easy to check the contents.
4.Anti-UV,anti-aging,long working life
Temperature: -10℃ (-50 ℉ )to + 65°C (+ 150°F)
| Item Code | I.D | O.D | Vacuum | W.P. | B.P. | L | ||||
| inch | mm | mm | psi | bar | psi | bar | psi | bar | m/roll | |
| PSWH-32 | 1-1/4" | 32 | 41 | -15 | -1 | 102 | 7 | 290 | 20 | 40 |
| 32 | 36 | -15 | -1 | 73 | 5 | 276 | 19 | 50 | ||
| 32 | 38.6 | -15 | -1 | 73 | 5 | 276 | 19 | 50 | ||
| 32 | 41 | -15 | -1 | 87 | 6 | 290 | 20 | 50 | ||
| 32 | 41.6 | -15 | -1 | 87 | 6 | 290 | 20 | 50 | ||
| PSWH-38 | 1-1/2" | 38 | 48 | -15 | -1 | 87 | 6 | 261 | 18 | 40 |
| 38 | 42.8 | -15 | -1 | 73 | 5 | 232 | 16 | 50 | ||
| 38 | 44 | -15 | -1 | 73 | 5 | 232 | 16 | 50 | ||
| 38 | 44.6 | -15 | -1 | 73 | 5 | 232 | 16 | 50 | ||
| 38 | 45.5 | -15 | -1 | 87 | 6 | 261 | 18 | 50 | ||
| 38 | 46.4 | -15 | -1 | 87 | 6 | 261 | 18 | 50 | ||
| PSWH-45 | 1-3/4" | 45 | 56 | -15 | -1 | 87 | 6 | 247 | 17 | 40 |
| 45 | 50 | -15 | -1 | 73 | 5 | 232 | 16 | 50 | ||
| 45 | 52 | -15 | -1 | 73 | 5 | 232 | 16 | 50 | ||
| 45 | 53 | -15 | -1 | 73 | 5 | 232 | 16 | 50 | ||
| PSWH-48 | 1-7/8" | 48 | 59 | -15 | -1 | 73 | 5 | 232 | 16 | 40 |
| 48 | 54.6 | -15 | -1 | 73 | 5 | 218 | 15 | 50 | ||
| 48 | 56.4 | -15 | -1 | 73 | 5 | 218 | 15 | 50 | ||
| 48 | 58 | -15 | -1 | 73 | 5 | 218 | 15 | 50 | ||
| PSWH-50 | 2" | 50 | 62 | -15 | -1 | 73 | 5 | 232 | 16 | 40 |
| 50 | 55.6 | -15 | -1 | 73 | 5 | 145 | 10 | 50 | ||
| 50 | 57.2 | -15 | -1 | 73 | 5 | 203 | 14 | 50 | ||
| 50 | 58.2 | -15 | -1 | 73 | 5 | 203 | 14 | 50 | ||
| 50 | 60 | -15 | -1 | 73 | 5 | 218 | 15 | 50 | ||
| PSWH-58 | 2-5/46" | 58 | 70 | -15 | -1 | 73 | 5 | 218 | 15 | 40 |
| PSWH-64 | 2-1/2" | 63 | 80 | -15 | -1 | 73 | 5 | 203 | 14 | 30 |
| 64 | 72.3 | -15 | -1 | 58 | 4 | 145 | 10 | 40 | ||
| 64 | 75 | -15 | -1 | 58 | 4 | 145 | 10 | 40 | ||
| 64 | 76 | -15 | -1 | 58 | 4 | 145 | 10 | 40 | ||
| 64 | 77 | -15 | -1 | 58 | 4 | 145 | 10 | 40 | ||
| PSWH-75 | 3" | 75 | 91 | -15 | -1 | 73 | 5 | 189 | 13 | 30 |
| 75 | 84 | -15 | -1 | 58 | 4 | 145 | 10 | 40 | ||
| 75 | 85 | -15 | -1 | 58 | 4 | 145 | 10 | 40 | ||
| 75 | 87 | -15 | -1 | 58 | 4 | 145 | 10 | 40 | ||
| 75 | 89 | -15 | -1 | 58 | 4 | 145 | 10 | 40 | ||
| PSWH-90 | 3-1/2" | 90 | 108 | -15 | -1 | 58 | 4 | 174 | 12 | 20 |
| PSWH-100 | 4" | 100 | 118 | -15 | -1 | 44 | 3 | 145 | 10 | 20 |
| 102 | 112 | -15 | -1 | 44 | 3 | 145 | 10 | 30 | ||
| 102 | 114 | -15 | -1 | 44 | 3 | 145 | 10 | 30 | ||
| 102 | 115 | -15 | -1 | 44 | 3 | 145 | 10 | 30 | ||
| 102 | 118 | -15 | -1 | 44 | 3 | 145 | 10 | 30 | ||
| PSWH-110 | 4-3/8" | 110 | 123 | -15 | -1 | 44 | 3 | 145 | 10 | 20 |
| PSWH-114 | 4-1/2" | 114 | 126 | -15 | -1 | 44 | 3 | 145 | 10 | 20 |
| PSWH-117 | 4-5/8" | 117 | 133 | -15 | -1 | 44 | 3 | 145 | 10 | 20 |
| PSWH-127 | 5" | 127 | 143 | -15 | -1 | 44 | 3 | 145 | 10 | 20 |
| PSWH-140 | 5-1/2" | 140 | 156 | -15 | -1 | 44 | 3 | 145 | 10 | 10 |
| PSWH-152 | 6" | 152 | 170 | -15 | -1 | 44 | 3 | 145 | 10 | 10 |
| PSWH-160 | 6-5/16" | 160 | 176 | -15 | -1 | 44 | 3 | 145 | 10 | 10 |
| PSWH-180 | 7" | 180 | 196 | -15 | -1 | 44 | 3 | 145 | 10 | 10 |
| PSWH-200 | 8" | 200 | 224 | -15 | -1 | 44 | 3 | 145 | 10 | 10 |
