Quick Details
-
Brand Name:
-
Changhe
-
Voltage:
-
Based on Local
-
Power:
-
6kw
-
Dimension(L*W*H):
-
1000*1000*1300mm
-
Weight (KG):
-
600
-
Size:
-
customized
-
Heating energy:
-
electric/gas/diesel/LPG
Quick Details
-
Machine Type:
-
powder coating oven, Drying Oven, Curing oven, Coating Equipment
-
Marketing Type:
-
Hot Product
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Changhe
-
Voltage:
-
Based on Local
-
Power:
-
6kw
-
Dimension(L*W*H):
-
1000*1000*1300mm
-
Weight (KG):
-
600
-
Size:
-
customized
-
Heating energy:
-
electric/gas/diesel/LPG
Products Description

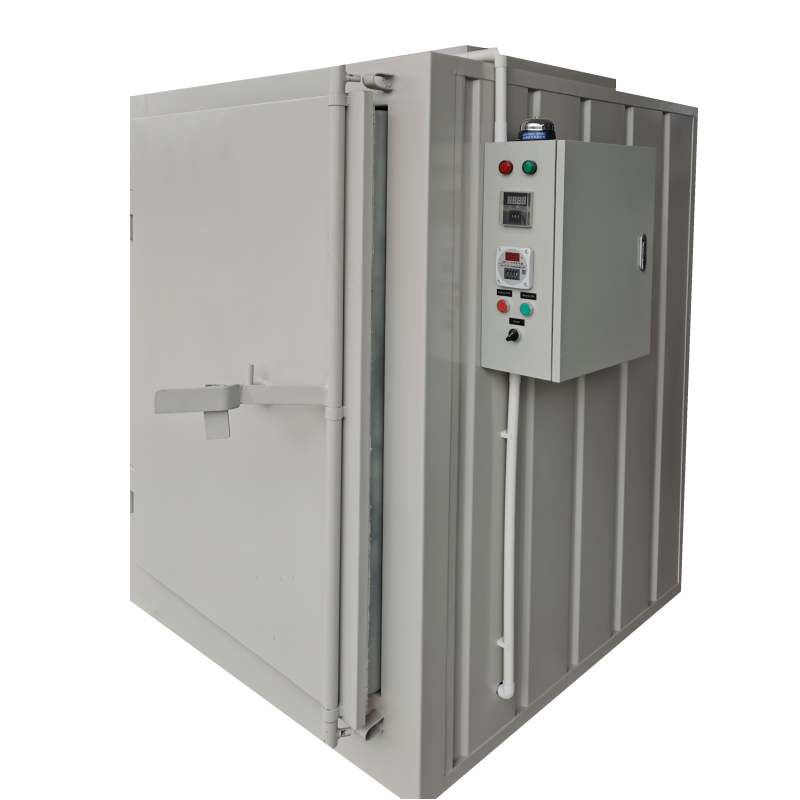

Electric Small Powder Coating Curing Oven
Working Size: Length1000 *Width1000*Height1300 mm
Heating source: could be Electric or Gas / Diesel / LPG
After powder spraying in the spray booth, the workpiece will be placed in the oven for powder curing. The powder is cured by high temperature baking and leveling, and becomes the final coating with different effects.
Heating source: could be Electric or Gas / Diesel / LPG
After powder spraying in the spray booth, the workpiece will be placed in the oven for powder curing. The powder is cured by high temperature baking and leveling, and becomes the final coating with different effects.
This powder coating oven is very suitable for car rims, bike and motorcycle accessories. The oven heated by electricity,which is environmental, energy-saving and maintenance-free. Quality curing process forms a solid and elegant coating coverage on the metal workparts surface.
Products Specification
|
Model
|
CH-101013D
|
|
|
Working Size (LxWxH)mm
|
1000 x 1000 x1300
|
|
|
Heating Source
|
Electric , LPG,Natural Gas, Diesel oil
|
|
|
Wall Insulation
|
100% new rock wool board with 100 mm thickness
|
|
|
Heating Temperature & Time
|
180° C (15-30min)
|
|
|
Temperature Stability
|
< ± 3-5°C
|
|
|
Voltage/ Frequency
|
415V/380V (50-60hz) , customized as local
|
|
|
Circulation / Air Flow
|
Vertical ,Variable through holes on the walls
|
|
|
Transportation
|
Trolley
|
|
|
The size, color and specifications can be customized all according to your needs.
|
|
|
Details Images
The process of making the oven in our factory
① The outer layer of the oven is formed by folding the edges and corners of galvanized sheet, increasing the firmness.
② Fill in the middle with 2 layers of rock wool, getting a thickness of 100mm.
③ Make the inner layer the oven
④ The door frame is made of bent 2.5 mm iron plate.
③ Make the inner layer the oven
④ The door frame is made of bent 2.5 mm iron plate.
Oven Component
Controller panel
The user-friendly panel gives you an easy access to set heating temperature, time and working of fan. Once the curing time arrives, the oven will stop heating automatically.
Circulation Fan
Powerful fan circles hot air in the oven chamber, ensures uniform heat distribution with temperature stability less than 3 degree.
100mm Rockwool
The oven utilizes a sandwich panel design. Rock wool insulation of at least 100mm is inserted between galvanized inner wall and color-steel external skins, effectively minimums temperature dropping.
Transportation Trolley
Product hang on the metal shelf, the metal shelf
will be into the oven. By using the trolley, trolley moving across the hall does not contaminate the inside of the oven, which provides high purity
painted elements.
will be into the oven. By using the trolley, trolley moving across the hall does not contaminate the inside of the oven, which provides high purity
painted elements.
