Quick Details
-
Type:
-
Hybrid Dvr 5-in-1
-
Resolution:
-
4CH 4K
-
Certificate:
-
CE FCC RoHS
-
Language:
-
Multi-language
-
Playback:
-
4ch Playback
-
Video input:
-
4Channels
-
SATA:
-
1 * 8T(Max) HDD
-
USB Interface:
-
1 * USB 2.0(supports
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GEVILION
-
Model Number:
-
XVR-TGS8104
-
Type:
-
Hybrid Dvr 5-in-1
-
Resolution:
-
4CH 4K
-
Certificate:
-
CE FCC RoHS
-
Language:
-
Multi-language
-
Playback:
-
4ch Playback
-
Video input:
-
4Channels
-
SATA:
-
1 * 8T(Max) HDD
-
USB Interface:
-
1 * USB 2.0(supports
Product Paramenters

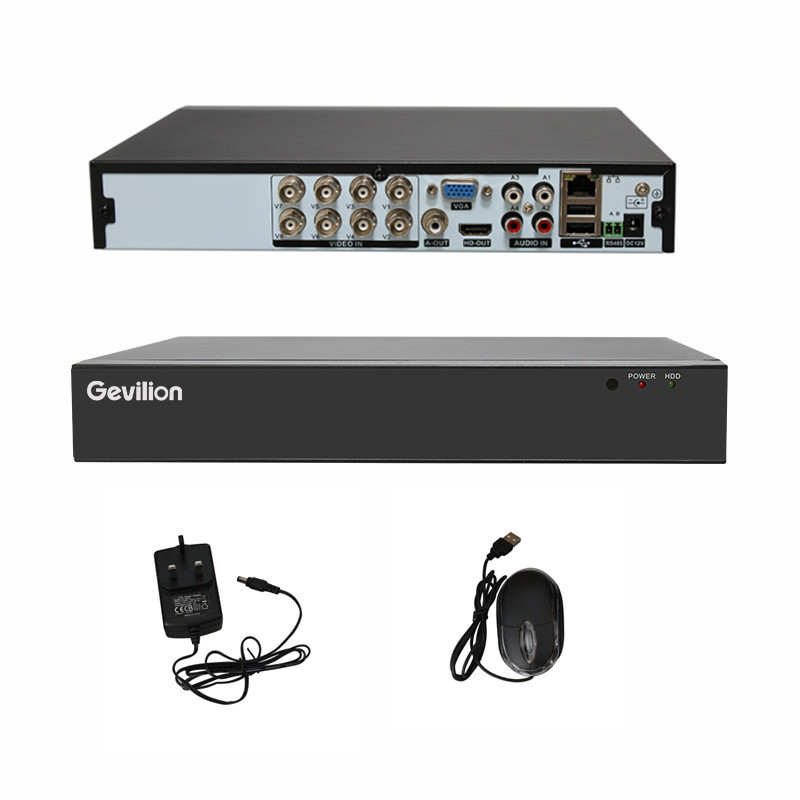

Hot sell Gevilion 4CH 4K 5MP TVI CVI AHD IP CVBS DVR HD Hybrid 265 CCTV 5 in 1 XVR Dahuai
|
FEATURES
|
|
Ø Support 265+ encoding, ultra-low bitrates, compatible with 264 surroundings;
|
|
Ø Support VGA, HDMI full HD output simultaneously;
|
|
Ø Support O-NVIF; access third party;
|
|
Ø Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;
|
|
Ø Support web, CMS, center platform management software XMEYE,
|
|
Ø Support various mobile monitoring (iPhone, Android);
|
|
Ø Remote Access, With DNS (ARSP),easy to monitor remotely
|
|
Ø Support UTC, control signal& video stream transmit through one single coaxial
|
|
Ø Support XVI/AHD/TVI/CVI/CVBS/IP six signals;
|
|
Ø Support intelligent analysis: functions like Perimeter alert, item retention, Video diagnosis, intelligent fast play and
intelligent retrieval |
Products Description
|
System
|
|
|
|
Operating System
|
HI3520DV400
|
|
|
Preview
|
1/4/8/9
|
|
|
Video
|
|
|
|
Encoding Format
|
265+
|
|
|
Monitor Quality
|
VGA(1080P at most); HDMI(4K at most)
|
|
|
Preview Ability
|
4*4K-N @ 15fps(6 in 1)/4*5M @ 12fps(6 in 1)/
4*4M @ 15fps(6 in 1) /4*3M @ 18fps(6 in 1) /4*1080P(6 in 1) |
|
|
Encode Ability
|
4*4K-N @7fps(6 in 1)/4*5M @ 6fps(6 in 1)/
4*4M @ 8fps(6 in 1) /4*3M @ 10fps(6 in 1) /4*1080P @ 18fps(6 in 1) |
|
|
Decode Ability
|
1*4K-N @ 7fps(6 in 1)1*5M @ 6fps(6 in 1)/
4*4M @ 8fps(6 in 1) /4*3M @ 10fps(6 in 1) /4*1080P @ 18fps(6 in 1) |
|
|
Multi-mode Input
|
Analog: 4*5M; 4*4M; 4*1080P
Digital to analog conversion: support(except 4*5M, 4+4 hybrid mode) Hybrid: 4*4M(analog) +4*4M(network) Network: 16*1080P; 8*5M |
|
|
Motion Detection
|
Each screen can be set to 192 (16 * 12) detection areas;
Multi-level sensitivity can be set (Limited local channel) |
|
|
Audio
|
|
|
|
Audio Compression
|
G.711A
|
|
|
Intercom
|
Support
|
|
|
Record & Playback
|
|
|
|
Record Mode
|
Manual>Alarm>Motion detection>Timing
|
|
|
Local Playback
|
4CH (analog input mode)
|
|
|
Search mode
|
Search by time, calendar, event, channel
|
|
|
Storage & backup
|
|
|
|
Video storage
|
HDD, network
|
|
|
Backup mode
|
Network, USB hard disk, USB burner, SATA burner
|
|
|
External Interface
|
|
|
|
Video Input
|
4CH BNC
|
|
|
Video Output
|
1CH VGA, 1ch HDMI
|
|
|
Loop Out
|
N/A
|
|
|
Audio I/O
|
1(4)/1
|
|
|
Alarm I/O
|
0/0
|
|
|
Network Interface
|
RJ45 10M/100M self-adaption
|
|
|
PTZ Control
|
1*RS485, Support kinds of PTZ protocols
|
|
|
USB
|
2* USB 2.0 ports
|
|
|
HDD
|
1*SATA ports (Max 8TB/per)
|
|
|
Wireless
|
3G, WIFI (extend via USB)
|
|
|
General
|
|
|
|
Power Supply
|
12V/2A
|
|
|
Power Consumption
|
<15W (without HDD)
|
|
|
Working Environment
|
Temperature: 0℃—+55℃, Humidity: 10%—90%, Atm: 86kpa—106kpa
|
|
