Quick Details
-
Brand Name:
-
jingbo
-
Model Number:
-
LWGY
-
Product Name:
-
Liquid Turbine Flow Meter
-
Medium:
-
Nonconductive Liquid
-
Connection:
-
Flange/ Thread/clamp
-
Accuracy:
-
1.0% 0.5% 0.2%
-
Material:
-
SUS 304
-
Output Signal:
-
4-20mA /pulse
-
Brand:
-
Jingbo Instrument
-
Power supply:
-
24VDC
-
Protection Class:
-
IP65 (higher Protection Grade)
-
Repeatability:
-
0.05%~0.2%
Quick Details
-
Type:
-
Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
-
Warranty:
-
2 years
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
jingbo
-
Model Number:
-
LWGY
-
Product Name:
-
Liquid Turbine Flow Meter
-
Medium:
-
Nonconductive Liquid
-
Connection:
-
Flange/ Thread/clamp
-
Accuracy:
-
1.0% 0.5% 0.2%
-
Material:
-
SUS 304
-
Output Signal:
-
4-20mA /pulse
-
Brand:
-
Jingbo Instrument
-
Power supply:
-
24VDC
-
Protection Class:
-
IP65 (higher Protection Grade)
-
Repeatability:
-
0.05%~0.2%
Product Description

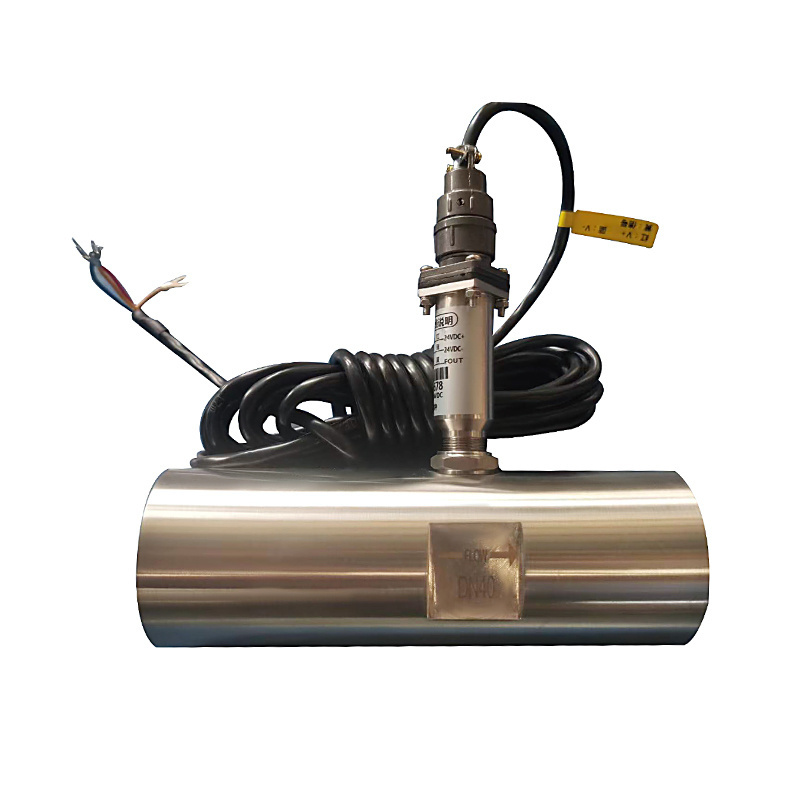

Intelligent fuel consumption flow meter is a high performance, high reliability flow meter for measuring the volumetric flow of low viscosity, clean media in closed piping. Widely used in steel, electric power, petroleum, chemical, coal, metallurgy, and other industries.
|
Technical parameters
|
|
|
|
Implementation standards:
|
Turbine flowmeter sensor(JB/T9246~19999)
|
|
|
Caliber&connection:
|
Thread connection: DN4,6,10,15,20,25,32,40;
Flange connection: DN (15,20,25,32,40)50,65,80,100,125,150,200; Clamp connection: DN4, 6, 10, 15, 20, 25, 32, 40, 50, 65, 80 |
|
|
Accuracy:
|
±0.1%,±0.5%,±0.2%(Optional)
|
|
|
Range ratio:
|
1:10;1:15;1:20
|
|
|
Sensor material:
|
SS304 stainless steel,SS316(L)stainless steel,etc.
|
|
|
Working environment:
|
Medium temperature:-20℃~+120℃
Ambient temperature:-20℃~+20℃ Relative humidity:5%~90% Atmospheric pressure:86KPA~106KPA |
|
|
Signal output:
|
Pulse ,4~20ma
|
|
|
Communication output:
|
RS485,HART
|
|
|
Working power supply:
|
A:DC 24V lithium battery
|
|
|
Signal line interface:
|
Basic type, Explosion proof type
|
|
|
Explosion proof grade:
|
ExiaΙΙCT4 or ExdΙΙBT6
|
|
|
Protection level:
|
IP65 or higher
|
|
