Quick Details
-
Weight:
-
200kg
-
Size:
-
1*0.5*0.7m
-
Weight (KG):
-
260 kg
-
After-sales Service Provided:
-
Online support
-
Capacity:
-
5~320m3/h
-
Micro bubble size:
-
10-30 microns.
-
Application:
-
Waste Water Treatment
-
Type:
-
Water Filter Parts
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Spark
-
Material:
-
Wooden box, Stainless Steel, Carbon steel
-
Weight:
-
200kg
-
Size:
-
1*0.5*0.7m
-
Weight (KG):
-
260 kg
-
After-sales Service Provided:
-
Online support
-
Capacity:
-
5~320m3/h
-
Micro bubble size:
-
10-30 microns.
-
Application:
-
Waste Water Treatment
-
Type:
-
Water Filter Parts

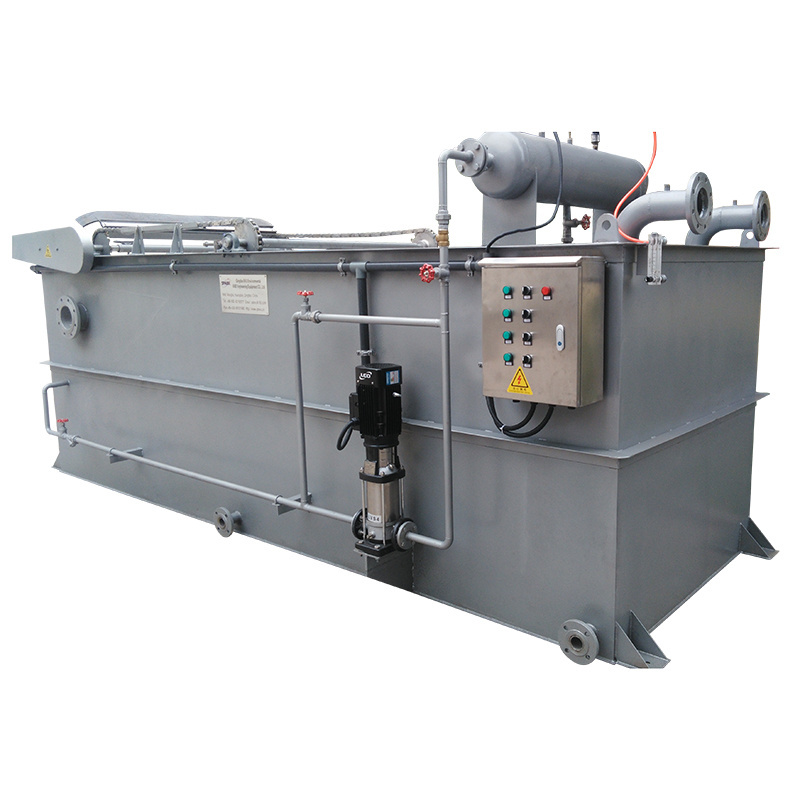

Small Containerized DAF for removing oil and solids waste water treatment
WQ P series dissolved air floatation machine is mainly used for solid-liquid or liquid -liquid separation. Large sum of micro bubbles produced by dissolving and releasing system adhere to solid or liquid particles which with the same density as waste water to make the whole float to the surface thus achieve the goal of separation.
By mixing suitable flocculants and coagulants into wastewater, oil & grease removal rate can be > 95%, SS removal rate can be > 90%, and at the same time can remove around 5 0% COD and BOD in pretreatment process.
|
Model |
Capacity (m3/h) |
Mainbody dimension(M) |
Liquid-water pump power (KW) |
Air compressor power ( KW) |
Total power (KW) |
|
WQP-5 |
5 |
3.0*1.0*1.2 |
1.1 |
-- |
1.5 |
|
WQP-10 |
10 |
3.5*1.2*1.5 |
1.5 |
-- |
1.9 |
|
WQP-20 |
20 |
5.0*1.5*1.5 |
3 |
-- |
3.4 |
|
WQP-30 |
30 |
6.0*1.8*2.0 |
4 |
-- |
4.4 |
|
WQP-50 |
50 |
7.0*2.0*2.0 |
7.5 |
3 |
11.12 |
|
WQP-7 0 |
70 |
9.0*2.0*2.0 |
7.5 |
3 |
11.5 |
|
WQP-80 |
80 |
9.5*2.5*2.0 |
7.5 |
4 |
14.1 |
|
WQP-100 |
100 |
12.0*2.5*2.0 |
11 |
4 |
17.6 |
|
WQP-150 |
150 |
14.0*3.0*2.5 |
15 |
5.5 |
23.8 |
|
WQP-200 |
200 |
16.0×3.0×2. 5 |
18 |
5.5 |
27.1 |
