- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Huaming
-
Model Number:
-
HM6530
-
Product name:
-
water well camera
-
Main control box:
-
12V/220V
-
Winch:
-
Trolley or horizontal winch
-
camera size:
-
65mm
-
Camera pixels:
-
750TVL
-
monitor:
-
10 inch high brightness industrial control display
-
Lens angle:
-
120 degrees
-
Camera lamp:
-
9 LED beads in front and LED light beads in side
-
Logging cable:
-
300m
-
Special Features:
-
PAN-TILT
-
Certification:
-
other
Quick Details
-
Network:
-
other
-
Function:
-
Waterproof / Weatherproof, Wide Angle
-
Customized support:
-
Customized logo, OEM, ODM
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Huaming
-
Model Number:
-
HM6530
-
Product name:
-
water well camera
-
Main control box:
-
12V/220V
-
Winch:
-
Trolley or horizontal winch
-
camera size:
-
65mm
-
Camera pixels:
-
750TVL
-
monitor:
-
10 inch high brightness industrial control display
-
Lens angle:
-
120 degrees
-
Camera lamp:
-
9 LED beads in front and LED light beads in side
-
Logging cable:
-
300m
-
Special Features:
-
PAN-TILT
-
Certification:
-
other
overview

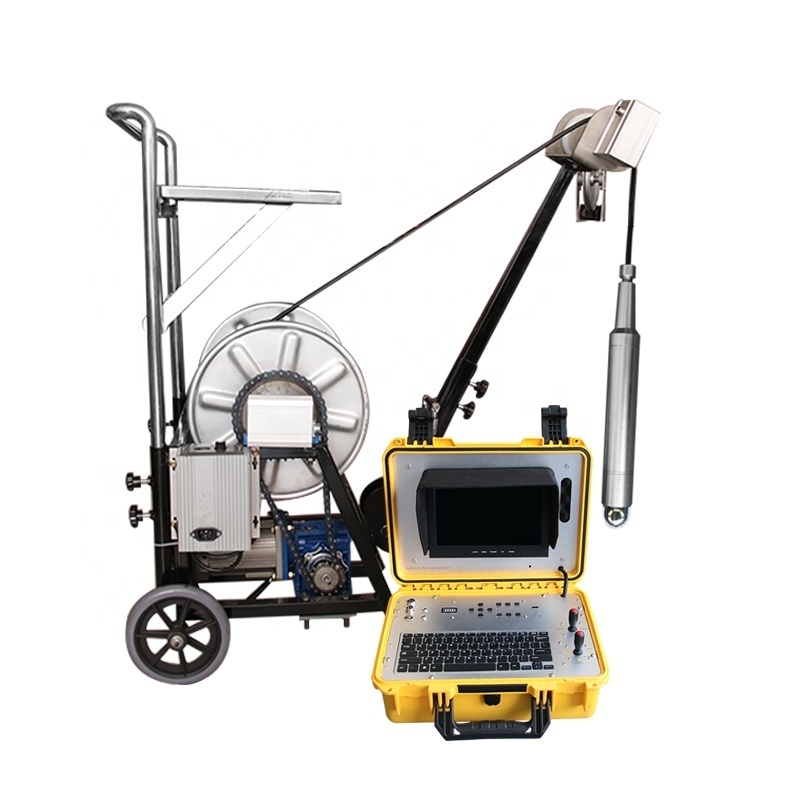

factory price 300m pan tilt camera water well borehole camera with electric winch is mainly used in underwater, borehole, water well drilling hole engineering, hydrology, mining, petroleum, geotechnical, civil and other units or departments.
factory price 300m pan tilt camera water well borehole camera with electric winch can be used to observe the characteristic of geologic body in drill hole, well hole, well drilling, oil well and pile foundation etc, such as rock structure, geological structure, rock strike, faults, fissures, dissection, underwater and undersea survey.
product feature
|
factory price 300m pan tilt camera water well borehole camera with electric winch |
|
|
Main control box |
12V/220V |
|
Winch |
Trolley or horizontal winch |
|
Display |
10 inch high brightness industrial control display |
|
Video system |
32G (U disk) |
|
|
Underground TV with 65 mm diameter pan tilt cameras adopts Japanese SONY700 line low illumination camera, with 360 degrees horizontal rotation |
|
Depth counter |
depth is accurate to 0.05 meters |
|
Logging cable |
6 core tensile, length 3 00 meters |
|
Centralizer |
High elastic stainless steel centralizer |
|
Hold-all |
Connecting cables and accessories |
|
Detailed product parameters (pictures are for reference only, please refer to physical objects) |
|
|
Main control box |
Control box: ABS control box Waterproof: IP68 grade Function description: two five-way joysticks control probe operation One-click AutoPan automatic scanning Speed setting/ dynamic switching 10 levels of built-in auxiliary lighting adjustment Depth count 10.1 inch HD display External storage expansion Keyboard operation |
|
|
|
|
pan tilt camera |
* Camera Material: stainless steel
* Camera size: Φ
65
mm
*300mm
*Resolution: 700TVL *Focus can be adjusted, viewing angle: 60° *Clear vision: 100~600MM *Rotation angle: horizontal 360°, vertical 180° *LED lights: support 10 levels of fine dimming *HD glass lens: 3.9 cone glass lens/ F2.0 *Camera shell material: 304 *Waterproof rating: 20 MPa |
|
|
|
|
Trolley or horizontal winch |
|
|
|
|
|
|
* 10 inch BNC/VGA//USB industrial control display:
* Size 280 x 180 x 40 mm
* contrast ratio:450:1
* Resolving power:1280*800 |
|
Logging cable
|
* Cable material; light-resistant and heat-resistant material
|
