Quick Details
-
Application:
-
Villa
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHISUNG
-
Model Number:
-
CSPY-S1-DC
-
Product Name:
-
Electric Sliding Automatic Gate Opener Kit Automation
-
Power supply:
-
220V/AC 110V/AC 50/60Hz
-
Electric Motor:
-
DC12V,7.5A DC24V,3.5A,80W
-
Max. Gate Weight:
-
500 Kg
-
Open(close) speed:
-
12M/MIN
-
Remote Control:
-
433.92MHz
-
Material:
-
Copper turbine
-
Leaf max leghth (m):
-
6m
-
Noted:
-
if need solar panel,gear racks,sensors,contact sales
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
NONE
-
Application:
-
Villa
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHISUNG
-
Model Number:
-
CSPY-S1-DC
-
Product Name:
-
Electric Sliding Automatic Gate Opener Kit Automation
-
Power supply:
-
220V/AC 110V/AC 50/60Hz
-
Electric Motor:
-
DC12V,7.5A DC24V,3.5A,80W
-
Max. Gate Weight:
-
500 Kg
-
Open(close) speed:
-
12M/MIN
-
Remote Control:
-
433.92MHz
-
Material:
-
Copper turbine
-
Leaf max leghth (m):
-
6m
-
Noted:
-
if need solar panel,gear racks,sensors,contact sales
Quality Solar Powered 80W Dc Motor Automatic Sliding Gate Opener Kit
Poster
Product Description
| Model | CSPY-S1-DC |
| Material | Copper turbine |
| IP Rating | IP45 |
| Max.Gate Weight (KG) | 500kg |
| Leaf max leghth (m) | 6m |
| Rated Absorbed power (w) | 80W |
| Working Frequency | 90% |
| Motor voltage and current(V) | DC12V,7.5A |
| DC24V,3.5A | |
| Limit switch | Spring limit |
| Limit switch quantity | 2,Open door limit and close door limit |
| Teeth gear | 12 Teeth gear |
| Motor Speed | 2500RPM/MIN |
| Push force (N) | 500N |
| Max linear load free speed(m/sec) | 12M/MIN |
| Remote control | 30-50meters,433.92 MHz |
| Thermal Protection(℃) | 140℃ |
| Recovery temperature(℃) | -20℃-50℃ |
| Gross weight | 12KG |
Product Details
Chisung CSPY-S1 DC500 Model
DC Electric Motor,Max.gate weight 500kg, Max.gate width 6m, Solar Powered System Compatible,Suitable for Residential or Commercial small heavy sliding gate

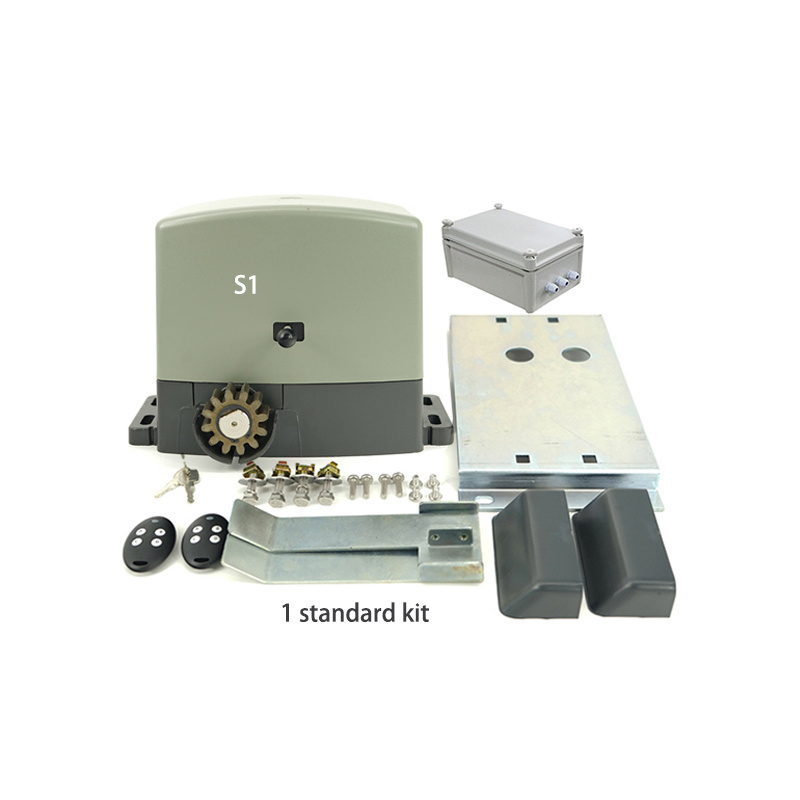

The One Complete Set Packing include:
DC 12v or 24v 80W 1 motor with case,1 control board and control box,2 remote control,1 user manual and mounting brackets,16kg,Together 1 cartons.
Noted:Others spare part should contact sales .
