Quick Details
-
Warranty:
-
Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZHAOWEI
-
Model Number:
-
ZWSM022022-14
-
Torque:
-
Rated torque: 1Nm
-
Product Name:
-

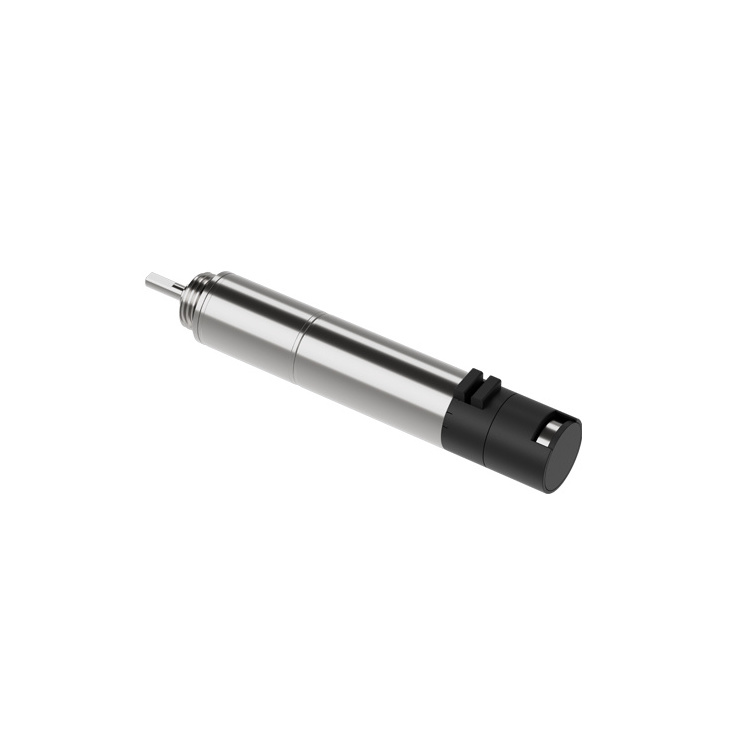

22mm High performance gear motor
-
current:
-
1200mA max
-
Rated Speed:
-
392rpm
-
max speed:
-
507rpm
-
max rated torque:
-
1.99Nm
-
max instant torque:
-
2.9Nm
-
Voltage:
-
24v
-
Motor Diameter:
-
22mm
-
gearbox length:
-
32.8mm
-
total length:
-
64.8mm
Quick Details
-
Speed(RPM):
-
45rpm
-
Continuous Current(A):
-
Rated current: 1200mA, max
-
Efficiency:
-
IE 2
-
Warranty:
-
Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZHAOWEI
-
Model Number:
-
ZWSM022022-14
-
Torque:
-
Rated torque: 1Nm
-
Product Name:
-
22mm High performance gear motor
-
current:
-
1200mA max
-
Rated Speed:
-
392rpm
-
max speed:
-
507rpm
-
max rated torque:
-
1.99Nm
-
max instant torque:
-
2.9Nm
-
Voltage:
-
24v
-
Motor Diameter:
-
22mm
-
gearbox length:
-
32.8mm
-
total length:
-
64.8mm
| ZWSMD022022 22mm gearbox data | ||||||
| Gearbox number | 1 | 2 | 3 | 4 | 5 | |
| Continuous output torque (MAX) | 1 | 2.9 | 4.3 | 5.5 | 5.5 | Nm |
| Instant mobilization torque (MAX) | 1.25 | 3.6 | 5.3 | 6.5 | 6.5 | Nm |
| Reduction ratio | 3.71 | 9.7,14 |
43,66 |
94,112,134,159,190,246 |
415 ,592,989,1526 | / |
| Outer diameter | 22mm | mm | ||||
| Gearbox length | 24.3 | 32.8 | 40.4 | 46.5 | 52.6 | mm |
| Maximum efficiency | 96 | 92 | 90 | 87 | 83 | % |
| Recommended temperature range | -30~+100 | -30~+100 | -30~+100 | -30~+100 | -30~+100 | ℃ |
| Gearbox weight | 53 | 65 | 76 | 88 | 102 | G |
| Maximum transmission power | 66 | 36 | 20 | 11 | 6 | W |
| Air load average empty return | 82.5 | 45 | 25 | 14 | 7 | W |
| Air load average empty return | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | ° |
| The maximum axial load | 80 | 80 | 80 | 80 | 80 | N |
| The maximum radial load | 100 | 145 | 150 | 150 | 150 | N |
| Output Bearing | Pearl bearing | |||||
| Axial gap | 0~0.1 | mm | ||||
| *Note: The above data does not include the motor, the overall sale of the deceased and the motor, the specific parameters can be customized according to the customer's requirements. | ||||||
ZWSMD22022 22mm High-performance brushless gearbox motor
Product advantages:
1-Version that can provide machine processing
2-Use high-performance material
3- Provide an improved version that can work in the temperature change range and special environmental conditions
4-can be improved according to customer requirements
| ZWSMD022022 Motor Data | ||
| Product model | ZWSMD022022 | |
| Environmental temperature | -40 ...+100 ℃ | |
| Maximum transmission power | 30W | |
| Maximum continuous torque | 3.7nm | |
| Maximum continuous input speed | 4000RMPM | |
| Output terminal bearing | Rolling Pearl Bearing | |
| model | Rated voltage (V) | Air load data | Load data |
Total length (mm) |
Gearbox rated torque (NM) |
(NM) |
Reduction ratio |
(mm) |
|||
|
Air-load speed (rpm) |
No-load current (mA max) |
Load speed (rpm) |
Load current (A Max) |
Torque (gf.cm) |
|||||||
| ZWSMD022022-4 | 24 | 1914 | 150 | 1482 | 1 | 552 | 56.3 | 1 | 1.25 | 4 | 24.3 |
| ZWSMD022022-10 | 24 | 732 | 200 | 567 | 1.2 | 1383 | 64.8 | 2.9 | 3.6 | 10 | 32.8 |
| ZWSMD022022-14 | 24 | 507 | 200 | 393 | 1.2 | 1996 | 64.8 | 2.9 | 3.6 | 14 | 32.8 |
| ZWSMD022022-43 | 24 | 165 | 250 | 128 | 1.5 | 5999 | 72.4 | 4.3 | 5.3 | 43 | 40.4 |
| ZWSMD022022-66 | 24 | 108 | 250 | 83 | 1.5 | 9207 | 72.4 | 4.3 | 5.3 | 66 | 40.4 |
| ZWSMD022022-94 | 24 | 76 | 300 | 59 | 1.8 | 12676 | 78.5 | 5.5 | 6.5 | 94 | 46.5 |
| ZWSMD022022-112 | 24 | 63 | 300 | 49 | 1.8 | 15103 | 78.5 | 5.5 | 6.5 | 112 | 46.5 |
| ZWSMD022022-134 | 24 | 53 | 300 | 41 | 1.8 | 18070 | 78.5 | 5.5 | 6.5 | 134 | 46.5 |
| ZWSMD022022-159 | 24 | 45 | 300 | 35 | 1.8 | 21441 | 78.5 | 5.5 | 6.5 | 159 | 46.5 |
| ZWSMD022022-190 | 24 | 37 | 300 | 29 | 1.8 | 25622 | 78.5 | 5.5 | 6.5 | 190 | 46.5 |
| ZWSMD022022-246 | 24 | 29 | 300 | 22 | 1.8 | 33173 | 78.5 | 5.5 | 6.5 | 246 | 46.5 |
| ZWSMD022022-415 | 24 | 17 | 350 | 13 | 2.2 | 53390 | 84.6 | 5.5 | 6.5 | 415 | 52.6 |
| ZWSMD022022-592 | 24 | 12 | 350 | 9 | 2.2 | 76161 | 84.6 | 5.5 | 6.5 | 592 | 52.6 |
| ZWSMD022022-989 | 24 | 7 | 350 | 6 | 2.2 | 127235 | 84.6 | 5.5 | 6.5 | 989 | 52.6 |
| ZWSMD022022-1526 | 24 | 5 | 350 | 4 | 2.2 | 196320 | 84.6 | 5.5 | 6.5 | 1526 | 52.6 |
|
In 2024, we introduced new high-performance gear motors for medical, automotive, precision instruments, aerospace, industrial equipment and other demanding fields. We can provide High-performance gearbox motor replace maxon motor 6mm ,8mm,10mm,12mm,16mm,19mm,22mm,26mm,32mm,38mm,42mm |
