Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Kangbeite
-
Dimension(L*W*H):
-
6500*1200*1800mm
-
Weight:
-
1500 KG
Quick Details
-
Packaging Type:
-
Bags, Film, Foil, Pouch
-
Packaging Material:
-
Plastic, Paper
-
Voltage:
-
380V/50hz,or customize
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Kangbeite
-
Dimension(L*W*H):
-
6500*1200*1800mm
-
Weight:
-
1500 KG
Product Description

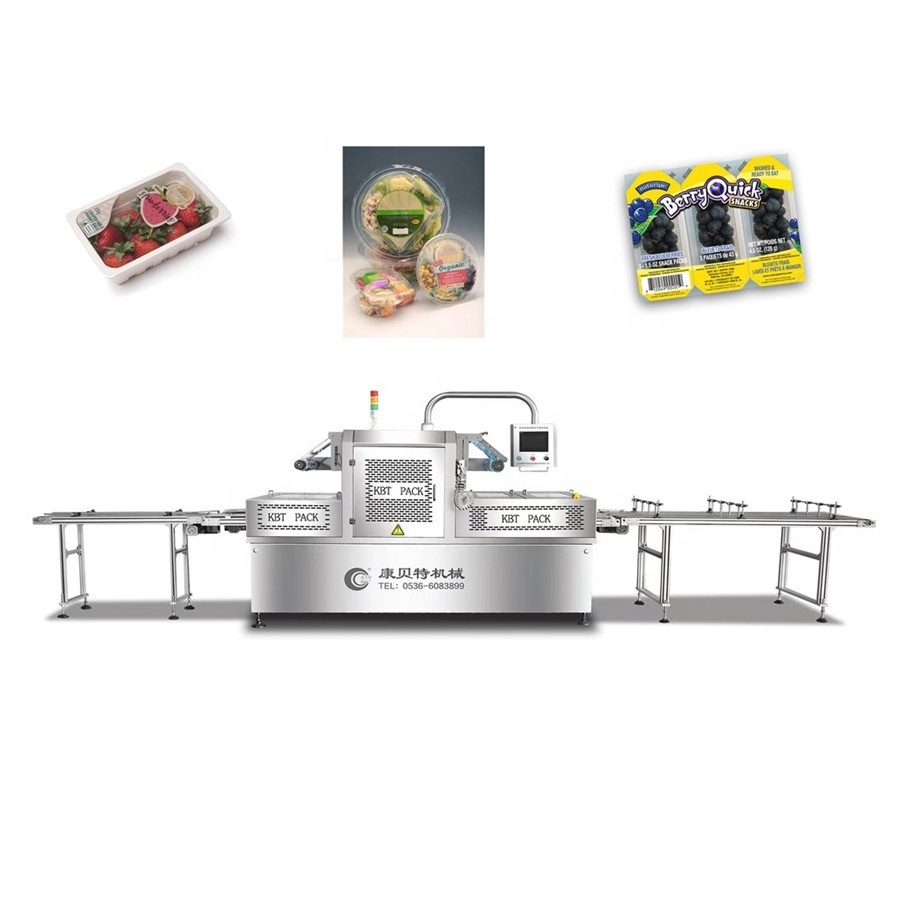

This machine is suitable for
palletizing various foods
. It can continuously and automatically complete vacuuming, filling mixed fresh-keeping gases (usually mixed gases CO, Na and 02), sealing, packaging, cutting and packaging product unloading (assembly line: IT can be connected with metal detection, weighing and labeling system).
Packaging Samples
Trade Shows
After Sales Service
1.Whole machine has one year warranty exclude wearable parts such as silicone plate, film, and so on.
2.Overseas installing service available.
3.We have multiple after-sale service including online guiding, engineering, service install and tuning service and so on.
2.Overseas installing service available.
3.We have multiple after-sale service including online guiding, engineering, service install and tuning service and so on.
4.Special overseas engineering service is available, price to be negotiated.
5.Other items or services requirements can be negotiated.
6.Provide the necessary accessories for the machine.
5.Other items or services requirements can be negotiated.
6.Provide the necessary accessories for the machine.
Technical parameters
|
Model No.
|
KBT - 550
|
|
Maximum size of packing tray (4 trays at a time)
|
Customization
|
|
Maximum width of rolled film
|
Customization
|
|
Maximum diameter of rolled film
|
300mm
|
|
Modified atmosphere packaging speed
|
1600 - 2400box/h
|
|
Power supply
|
380V/50HZ, or customize
|
|
Air pressure
|
0.6-0.8Mpa
|
|
Total power
|
10.5KW
|
|
Motor power of vacuum pump
|
2.2KW
|
|
Vacuum pump
|
R5-100 BuschR5-100
|
|
Gas replacement rate
|
≥ 99%
|
|
Air mixing accuracy deviation
|
< 1%
|
|
Residual oxygen
|
< 0.5%
|
|
Machine weight
|
1500kg
|
|
Overall dimension
|
6500*1200*1860mm
|
Company Introduction
About us
Shandong Kangbeite Food Packaging Machinery Co., Ltd. is a professional manufacturer of packaging machines with over 10 years’ experience. Our mission is to supply high quality affordable packaging solution for worldwide customers. We deliver over 200 sets of thermoforming packaging machines, hundreds of modified atmosphere packaging machines and vacuum sealing machines each year.
Packing&Shipping
Packing: plywood box
Sea transportation: Qingdao, Shandong, Ningbo Port, Tianjin Port, Shanghai Port and other seaports
