Multi-Function Drilling Rig XMZ130T For Foundation Support Anchor Drilling Micro Pile Concrete Jet Mixing Pile

Multi-Function Drilling Rig XMZ130T For Foundation Support Anchor Drilling Micro Pile Concrete Jet Mixing Pile

FOB Reference Price: Get Latest Price

≥1 Pieces

US $318000

≥2 Pieces

US $316000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight:: 8000 KG

Marketing Type:: Hot Product 2023

Drilling Diameter:: 7, 73-89-102-114mm

Drilling Depth:: 3050mm

Mobility:: crawler movement

Engine Model:: QSF2.8t3TC71

Rated Power:: 53kW/2200rpm

Maximum torque:: 14.1kNm

Maximum speed:: 68r/min

Maximum hoist force:: 70kN

Maximum feed force:: 70kN

Maximum hoist speed:: 40m/min

Maximum feed speed:: 40m/min

Feed stroke:: 2800mm

Maximum horizontal drilling height:: 4100mm

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: ORIEMAC

Dimension(L*W*H):: 5210*1500*2650mm

Weight:: 8000 KG

Marketing Type:: Hot Product 2023

Drilling Diameter:: 7, 73-89-102-114mm

Drilling Depth:: 3050mm

Mobility:: crawler movement

Engine Model:: QSF2.8t3TC71

Rated Power:: 53kW/2200rpm

Maximum torque:: 14.1kNm

Maximum speed:: 68r/min

Maximum hoist force:: 70kN

Maximum feed force:: 70kN

Maximum hoist speed:: 40m/min

Maximum feed speed:: 40m/min

Feed stroke:: 2800mm

Maximum horizontal drilling height:: 4100mm

PRODUCT DISCRIPTION

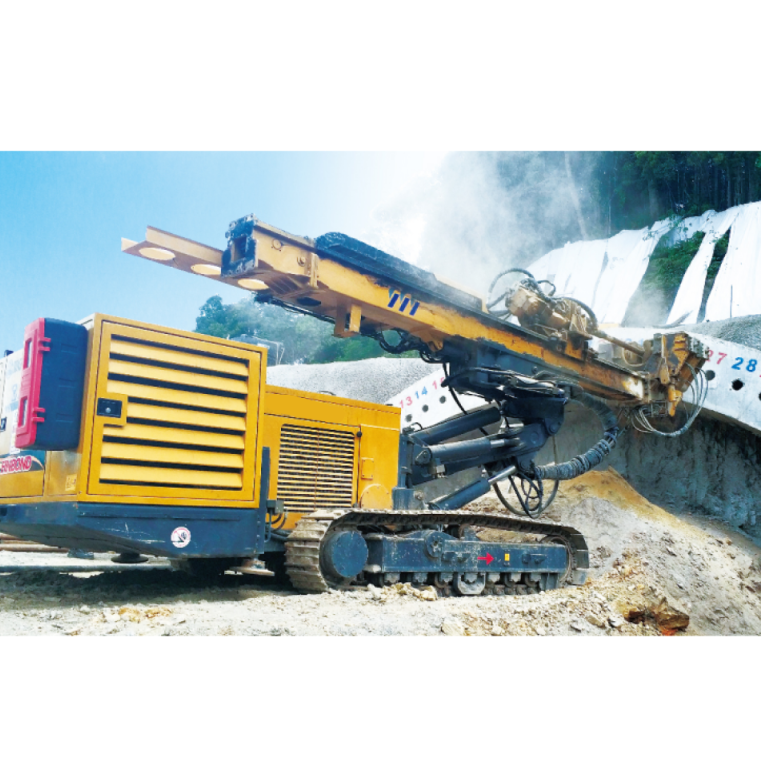

XMZ130T Multi-Function Drilling Rig

<For Foundation Support Anchor Drilling Micro Pile Concrete Jet Mixing Pile>

It's applicable for foundation support, anchor driling, micro pile, concrete jet mixing pile, etc.

1. Diesel-electric dual power configuration, energy saving and environmental protection; 2. The rotatable amplitude mechanism design ensures high construction efficiency; 3. Motor feed system, simple structure and easy maintenance; 4. Electro-hydraulic dual-control walking control facilitates walking during transitions; 5. The swingable crawler chassis design is better adapted to tunnel sites and transportation of upper and lower trucks; 6. The clamp, drill mast, power head assembly, etc. adopt modular design to meet the rapid switching of multiple configurations; 7. Optional engine preheating system to ensure low-temperature starting capability; 8. Optional advanced geological forecasting system can monitor and store drilling data in real time.
