Quick Details
-
After-sales Service Provided:
-
Free spare parts
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MINXIN
-
Model Number:
-
1750mm, 1530mm, 1380mm, 1220mm, 1100mm, 1060mm, 1000mm, 900mm, 800mm, 700mm, 600mm, 500mm, 400mm, 300mm, 200mm
-
Fan type:
-
Industrial Ventilation Cooling Box Exhaust Fan
-
Motor:
-
100% Full Copper Motor
-
Size:
-
1380mmx1380mm / 50inch
-
Material:
-
Galvanized Steel/Stainless Steel/ or Customized
-
Rated voltage:
-
AC 110/120V, 220/240V, 380V/415V
-
Function:
-
Ventilation, Cooling, Exhaust
-
Mount Type:
-
Through wall mount/ window mount
-
Feature:
-
High Performance, Larger Air Volume
-
Keyword:
-
ventilation exhaust fan, industrial exhaust fan, box fan
-
Application:
-
Poultryhouse, Greenhouse, Dairy farm
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Food & Beverage Shops, Advertising Company, Poultry house, Factory, Greenhouse, Pig farm, Warehouse, Dairy farm, Animal Husbandry house
-
Electric Current Type:
-
AC
-
Mounting:
-
Wall Fan
-
After-sales Service Provided:
-
Free spare parts
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MINXIN
-
Model Number:
-
1750mm, 1530mm, 1380mm, 1220mm, 1100mm, 1060mm, 1000mm, 900mm, 800mm, 700mm, 600mm, 500mm, 400mm, 300mm, 200mm
-
Fan type:
-
Industrial Ventilation Cooling Box Exhaust Fan
-
Motor:
-
100% Full Copper Motor
-
Size:
-
1380mmx1380mm / 50inch
-
Material:
-
Galvanized Steel/Stainless Steel/ or Customized
-
Rated voltage:
-
AC 110/120V, 220/240V, 380V/415V
-
Function:
-
Ventilation, Cooling, Exhaust
-
Mount Type:
-
Through wall mount/ window mount
-
Feature:
-
High Performance, Larger Air Volume
-
Keyword:
-
ventilation exhaust fan, industrial exhaust fan, box fan
-
Application:
-
Poultryhouse, Greenhouse, Dairy farm
Product Description
The

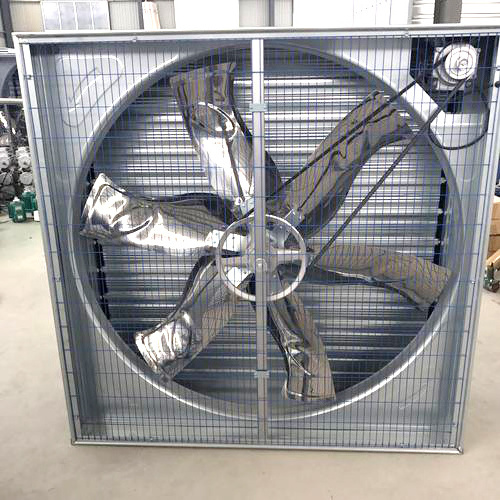

Agricutural 50inch Ventilation Exhaust fan for Chicken House Extractor Fan
types comes with shutters which keeps out the rain and dust, steel blades are enclosed in a sturdy steel spiral wire guard.
Agricultural 50inch Ventilation Industrial Extractor fan for Chicken house Exhaust Fan
Technical Details
|
Type:
|
Standard
|
OEM
|
|
Fan Size
|
1380mmx1380mmx350mm (54" x 54"x 14")
|
Any size
|
|
Fan Diameter(inch)
|
50
|
50
|
|
Fan Color
|
Silver
|
Painted or coating in any color
|
|
Fan Blade Material
|
1mm galvanized steel
|
as per customers’ requirements
|
|
Fan Frame Material
|
0.6mm galvanized steel
|
0.7mm, or higher thickness galvanized steel, fiberglass, or stainless steel
|
Details Images
Exhaust Fan Shutter
Fan shutters can be fully closed to keep out the rain, dust, pest and light.
90° Fully Open Fan Louver
The fan louvers can be fully opened to intake the largest amount of fresh air.
Higher Blade Curved Braket, higher airflow volume
Ultra-thick galvanized steel or stainless steel fan blade, large & durable
Rugged aluminum alloy pulley system for higher durability
One Piece Durable Automotive Bearing
High Efficiency 100% Copper Motor
Durable and Heat-Resistant Motor
Size Information
|
Model
|
Dimensions
|
Air Flow
|
Power
|
Workable Areas
|
Fan Speed
|
Noise
|
|
200#
|
200mmx200mmx170mm
|
588CFM
|
150W
|
5~20㎡
|
2000rpm
|
<45db
|
|
300#
|
300mmx300mmx200mm
|
1200CFM
|
150W
|
5~20㎡
|
2200rpm
|
<50db
|
|
400#
|
400mmx400mmx300mm
|
1500CFM
|
250W
|
20~40㎡
|
1400rpm
|
<55db
|
|
500#
|
500mmx500mmx300mm
|
3000CFM
|
250W
|
25~50㎡
|
1400rpm
|
<55db
|
|
600#
|
600mmx600mmx300mm
|
4700CFM
|
250W
|
50~60㎡
|
960rpm
|
<55db
|
|
700#
|
700mmx700mmx300mm
|
6000CFM
|
250W
|
60~70㎡
|
960rpm
|
<60db
|
|
800#
|
800mmx800mmx300mm
|
7650CFM
|
250W
|
70~80㎡
|
960rpm
|
<60db
|
|
800#
|
800mmx800mmx350mm
|
13000CFM
|
370 W
|
70~80㎡
|
450rpm
|
<60db
|
|
900#
|
900mmx900mmx350mm
|
16000CFM
|
370 W
|
80~90㎡
|
450rpm
|
<55db
|
|
1000#
|
1000mmx1000mmx350mm
|
17650CFM
|
550 W
|
90~100㎡
|
450rpm
|
<60db
|
|
1060#
|
1060mmx1060mmx350mm
|
19000CFM
|
550 W
|
100~120㎡
|
450rpm
|
<60db
|
|
1100#
|
1100mmx1100mmx350mm
|
20000CFM
|
550 W
|
110~130㎡
|
450rpm
|
<60db
|
|
1220#
|
1220mmx1220mmx350mm
|
22000CFM
|
750 W
|
120~140㎡
|
450rpm
|
<60db
|
|
1380#
|
1380mmx1380mmx350mm
|
26000CFM
|
1100 W
|
140~160㎡
|
450rpm
|
<65db
|
|
1530#
|
1530mmx1530mmx400mm
|
32800CFM
|
1500W
|
160~200㎡
|
450rpm
|
<70db
|
|
1750#
|
1750mmx1750mmx450mm
|
40000CFM
|
1800W
|
180~220㎡
|
350rpm
|
<70db
|
Packing&Shipping
The exhaust fans can either be shipped in unassebled way to save space and shipping cost, or shipping the assembled exhaust fans to save trouble and time.
Unassembled Exhaust Fan Parts
The unassembled fan parts can be shipped to customers for assembly, it will help to save shipping cost.
Welcome detailed consultation
Assembled Exhaust Fans
The assembled exhaust fans can be sent to customers for immediate installation.
Why Chose Us
Long Standing History
10 years' OEM experience of industrial exhaust fans, over 200 skilled employees.
Well Equipped
Equipped with over 100 automatic machines and 10 production lines, lower product cost for our customers
Fully Customizable
Full customization on voltage, materials, dimensions, design and private labeling to meet your unique request.
Most Complete Fan Sizes
10 years' OEM experience of industrial exhaust fans. Exhaust fans sizes range from 200mm to 1750mm, ventilation capacity ranges from 600CFM to 40000CFM
Fast Delivery
Highest production capacity in China, our daily output is 3,000pcs. Most of our customer can be delivered within 7 days, some can be delivered some day or 3 days
Complete Product Line
95% of the fan parts are produced in our own facility, we handle from coil sliding and folding, laser welding, die casting and stamping, motor cooper coil winding, CNC machining and assembly to ensure high precision of each part and higher performance of
the exhaust fans
the exhaust fans
Company Introduction
MINXIN INDUSTRIAL is well known for its most complete production line for industrial exhaust fans, evaporative air conditioners, and mobile air coolers.
Our Services & Strength
Minxin Industrial was founded in 2015, since then Minxin has been specialized in manufacturing industrial exhaust fans and evaporative air coolers of all sizes, such as:
1. Minxin Belt drive ventilating exhaust fans
2. Minxin Direct drive ventilating exhaust fans
3. Yihoo Water-cooling evaporative air conditioner
4. Yihoo portable water air cooler
1. Minxin Belt drive ventilating exhaust fans
2. Minxin Direct drive ventilating exhaust fans
3. Yihoo Water-cooling evaporative air conditioner
4. Yihoo portable water air cooler
Our Production Lines
Supporting 120 employees, our 20,000 square meter factory is top-notch, Minxin Industrial equipped itself with all the production equipment processes in house for better control of the quality and delivery time:
1. Steel coil sliding and cutting line, steel pipe cutting line
2. Aluminum Die Cast Tooling & Casting
3. Plastic Molding & Injection workshop
4. Metal Stamping & Laser Cutting
5. Motor Copper Coil Winding Line
6. Motor Assembly Workshop
7. Exhaust Fan Assembly Workshop
8. Water Air Cooler Assembly Workshop
1. Steel coil sliding and cutting line, steel pipe cutting line
2. Aluminum Die Cast Tooling & Casting
3. Plastic Molding & Injection workshop
4. Metal Stamping & Laser Cutting
5. Motor Copper Coil Winding Line
6. Motor Assembly Workshop
7. Exhaust Fan Assembly Workshop
8. Water Air Cooler Assembly Workshop
FAQ
Welcome send us inquiry,we'll give you best price for 40ft container for unassembly.
If you'll come to China recently, welcome visit our factory in Dongguang near Guangzhou or Shenzhen.
