- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Wiliyoung
-
Model Number:
-
803450(1500mah)
-
Battery Size:
-
803450, 8*34*50mm
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
30g
-
The charging ratio:
-
0.5C
-
The discharge rate:
-
0.5C
-
Electric Energy:
-
5.55 Wh
-
Product name:
-

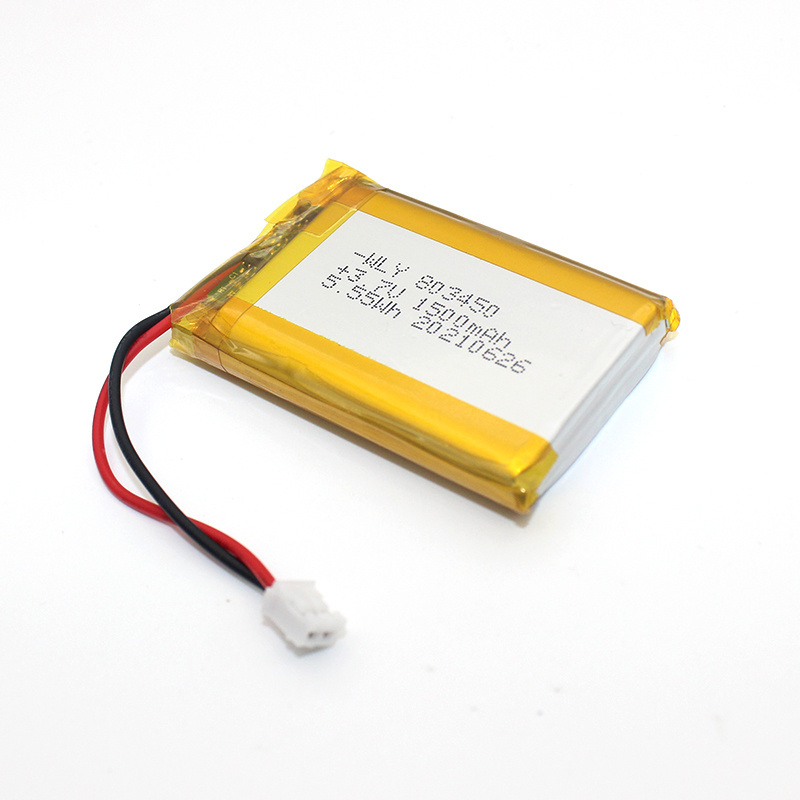

803450(1500mah) 3.7V lithium polymer battery
-
Energy:
-
5.55wh
-
Capacity:
-
1500mah
-
Cycle life:
-
500 Times
-
Standard charge/discharge current:
-
0.5C/0.5C
-
Custom Services:
-
Customized battery sizes/capacities/connectors/PCBs
-
Certification:
-
UI1642, IEC62133, UN38.3, MSDS, KC, CE, BIS, ROHS, TUV etc.
-
Protection:
-
Over charge,over discharge,over voltage,short circuit&high temperture.
Quick Details
-
Storage Type:
-
LiCoO2
-
Anode Material:
-
LCO
-
Application:
-
Toys, Home Appliances, Consumer Electronics
-
Brand Name:
-
Wiliyoung
-
Model Number:
-
803450(1500mah)
-
Battery Size:
-
803450, 8*34*50mm
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
30g
-
The charging ratio:
-
0.5C
-
The discharge rate:
-
0.5C
-
Electric Energy:
-
5.55 Wh
-
Product name:
-
803450(1500mah) 3.7V lithium polymer battery
-
Energy:
-
5.55wh
-
Capacity:
-
1500mah
-
Cycle life:
-
500 Times
-
Standard charge/discharge current:
-
0.5C/0.5C
-
Custom Services:
-
Customized battery sizes/capacities/connectors/PCBs
-
Certification:
-
UI1642, IEC62133, UN38.3, MSDS, KC, CE, BIS, ROHS, TUV etc.
-
Protection:
-
Over charge,over discharge,over voltage,short circuit&high temperture.
Product Description
Specification
|
803450/1500mah Basic Information
|
|
|
|
Dimension
|
8*34*50mm
|
|
|
Nominal capacity
|
1500mah
|
|
|
Power
|
5.55Wh
|
|
|
Charge voltage
|
4.2V
|
|
|
Nominal voltage
|
3.7V
|
|
|
Full-charge voltage
|
4.2v
|
|
|
Ship out volatge
|
3.7-4.1v
|
|
|
Battery Specification
|
|
|
|
Standard charge
|
0.5C/750mA
|
|
|
Max charge
|
1.0C/1500mA
|
|
|
Standard discharge current
|
0.5C/750mA
|
|
|
Max Standard discharge current
|
1.0C/1500mA
|
|
|
Discharge cut-off voltage
|
2.75V or 3.0V
|
|
|
Charge temperature
|
0℃~45℃
|
|
|
Discharge temperature
|
-10℃~60℃
|
|
|
Storage temperature
|
-10℃~45℃
|
|
|
Battery recyle time
|
500 times
|
|
|
Warranty
|
12 Months
|
|
|
Certifications
|
UI1642, IEC62133, UN38.3, MSDS, KC, CE, BIS, ROHS, TUV etc.
|
|
Charging method
|
Charge with constant current 0.5c to 4.2V. then chagre with constant voltage 4.2v till. until charge current is less than 0.01C.
|
|
Protection
|
Built-in chips provide protection for over charge, over discharge, over voltage, short circuit and high temperture.
|
|
Application
|
Widely used in BT devices, digital devices, intelligent wearable devices, digital medical devices, measuring instruments and other high-tech electronic products.
|
360° Custom Services
Customized Battery Packs
Customized Connectors
Customized PCBs
Customized Sizes& Capacities
Please contact us for more size/capacity.
↓
↓
↓
Production Flow
About US
Your reliable lithium battery solutions supplier.
1. Experienced R&D team since 2010.
2. 50,000,000 pcs annual production, 5 automatic production lines.
3. High popular for customized 3.7V lithium battery,.
4. Strictly QC team, testing equipment, with reliable after-sales service system.
5. Good comments, reputationand feedback from our satisfied customers.
Certifications
UI1642, IEC62133, UN38.3, MSDS, KC, CE, BIS, ROHS, TUV etc.
