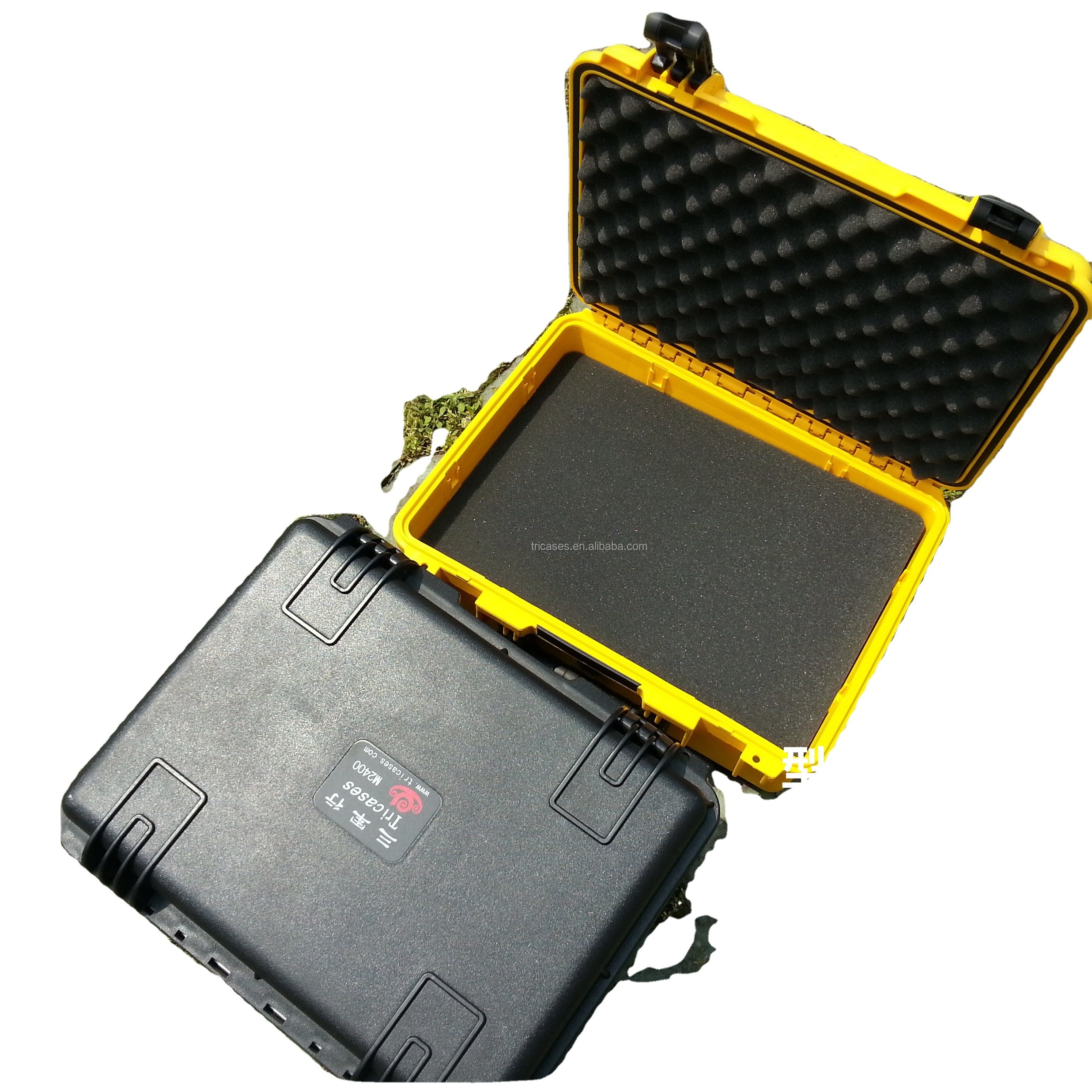

Quick Details
-
Material:
-
Plastic, Engineering PP
-
Internal dimension:
-
462*334*170mm
-
External dimension:
-
493*395*185mm
-
Color:
-
Yellow/Black
-
Weight:
-
2.916kg
-
IP level:
-
IP67
-
OEM/ODM:
-
Acceptable
-
Temperature Resistant:
-
-40°C~90°C
-
Standard:
-
U.S.A. MILIT Standard
-
Lock:
-
Fingerprint lock
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Tricases
-
Model Number:
-
M2400
-
Material:
-
Plastic, Engineering PP
-
Internal dimension:
-
462*334*170mm
-
External dimension:
-
493*395*185mm
-
Color:
-
Yellow/Black
-
Weight:
-
2.916kg
-
IP level:
-
IP67
-
OEM/ODM:
-
Acceptable
-
Temperature Resistant:
-
-40°C~90°C
-
Standard:
-
U.S.A. MILIT Standard
-
Lock:
-
Fingerprint lock
1.According with U.S.A. MILIT Standard
2.Resistant to extreme temperature from - 40°C to 90°C
3.Meticulous designs with 4 national patents
4. OEM/ODM customized orders acceptable
5.Made in China, highly cost - effective
6.Protection level: IP67
7.Life-time service
Specifications:
(01)Patented Spring Lock with MILIT standard is noiseless and labor-saving, more comportable to use.
(02)O-shaped waterproof seal ring with good insulation is resistant to temperature of -40°C.
(03)Long hinge-type axis is waterproof and firm.
(04)Waterproof plug and nice groove are designed for customized label/Logo.
(05)Waterproof automatic air valve is able to bear pressure of 21 PA, ensuring air pressures inside and outside equivalent.
(06)Soft arc-shaped handle designed according to Ergonomics is more comfortable for a long-time use.
(07)Upper cover' groove is anti-skid and easy to fix the case on slippy ground.
(08)The fixation hole is suitable for customers to fix and panel screen.
(09)Sling hole is easy for clients to install straps.
(10)Password lock is customized as a double protection.
(11)The box slot is designed more convenient to install and fix panel and fragile objects.
(12) EVA/PU/PE foams and sponges can be customized.
Please click the item number for more information:
| M Series- Injection Moulding Middle and Small Size | |||||||
| Item | External size(mm) | Internal size(mm) | Depth(mm) | Color | Net Weight(kg) | Pull rod | Wheels |
| M2100 | 395*299*148 | 334*237*132 | 32+100 | Black/Yellow/Green | 1.78 | No | No |
| M2200 | 413*328*168 | 381*267*152 | 48+104 | Black/Yellow | 2.3 | No | No |
| M2360 | 464*358*208 | 432*297*193 | 48+145 | Black/Yellow | 2.86 | No | No |
| M2400 | 493*395*185 | 462*334*170 | 48+122 | Black/Yellow | 2.916 | No | No |
| M2500 | 587*358*221 | 525*297*192 | 48+144 | Black/Yellow | 4.95 | Yes | 2 |
| M2608 | 570*418*228 | 508*356*220 | 48+172 | Black/Green | 4 | No | No |
| M2620 | 570*418*285 | 508*356*254 | 48+206 | Black/Green | 5.2 | Yes | 2 |
| M2720 | 624*498*285 | 563*437*254 | 48+206 | Black | 7.5 | Yes | 2 |
| M2750 | 624*498*353 | 563*437*323 | 48+275 | Black | 8 | Yes | 2 |
| M2950 | 802*522*298 | 741*461*267 | 78*189 | Black | 8.9 | Yes | 2 |
| RS Series- Rotational Moulding cases | |||||||
| Item | External size(mm) | Internal size(mm) | Net weight(kg) | Volume(L) | Wheels | Color | Level |
| RS820 | 800*530*380 | 700*445*350 | 15 | 100 | Yes | Green | IP65 |
| RS830 | 800*600*560 | 730*530*450 | 18 | 170 | No | Green | IP65 |
| RS860 | 961*697*398 | 871*615*355 | 20 | 190 | Yes | Green | IP65 |
| RS870 | 1100*530*360 | 1020*450*340 | 18 | 150 | Yes | Green | IP65 |
| RS880A | 1200*800*620 | 1100*730*600 | 33 | 480 | No | Green | IP65 |
| RS880B | 1200*800*700 | 1100*730*680 | 37 | 550 | No | Green | IP65 |
| RS890 | 2120*1070*625 | 2000*960*600 | 65 | 1150 | Yes | Green | IP65 |
| RU Series- Rotational Moulding Rack cases | |||||||
| Item | External size mm | 19 inch size mm | Depth(mm) | Dampener | Wheels | Pull Rod | Color |
| RU040 | 760*621*364 | 181*483*450 | 100+560 | 8/or without | 2/4 | 4 | Green |
| RU060 | 860*592*446 | 270.5*483*600 | 90+680 | 8/or without | 2/4 | 4 | Green |
| RU080 | 860*592*535 | 359.5*483*600 | 90+680 | 8/or without | 2/4 | 4 | Green |
| RU110 | 850*621*675 | 493*483*550 | 100+650 | 8/or without | 2/4 | 4 | Green |
