Quick Details
-
Product name:
-
Fully automatic welding station
-
Function:
-
automatic welding
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Free spare parts
-
Certification:
-
ISO9001, CE
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Hehua
-
Use:
-
Fully automatic welding station
-
Product name:
-
Fully automatic welding station
-
Function:
-
automatic welding
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Free spare parts
-
Certification:
-
ISO9001, CE
|
Number
|
Product
|
Models and Specifications
|
Quantity
|
Brand
|
|
1
|
Robot system
|
MA-1440
|
1
|
Japan Yaskawa
|
|
2
|
External 2 axis (external axis motor)
|
1.3+2.9 kw
|
2
|
Japan Yaskawa
|
|
3
|
Robot external 2-axis controller
|
|
1
|
Japan Yaskawa
|
|
4
|
Welding power
|
RD350
|
1
|
Japan Yaskawa
|
|
5
|
Wire feeder for contact sensor
|
|
|
Japan Yaskawa
|
|
6
|
Touch sensor
|
|
|
Japan Yaskawa
|
|
7
|
Built-in air-cooled welding gun
|
With welding wire clamp, anti-installation device i CAT
|
1
|
Tokin
|
|
8
|
Gun cleaning, wire cutting, fuel injection device
|
|
1
|
HEHUA
|
|
9
|

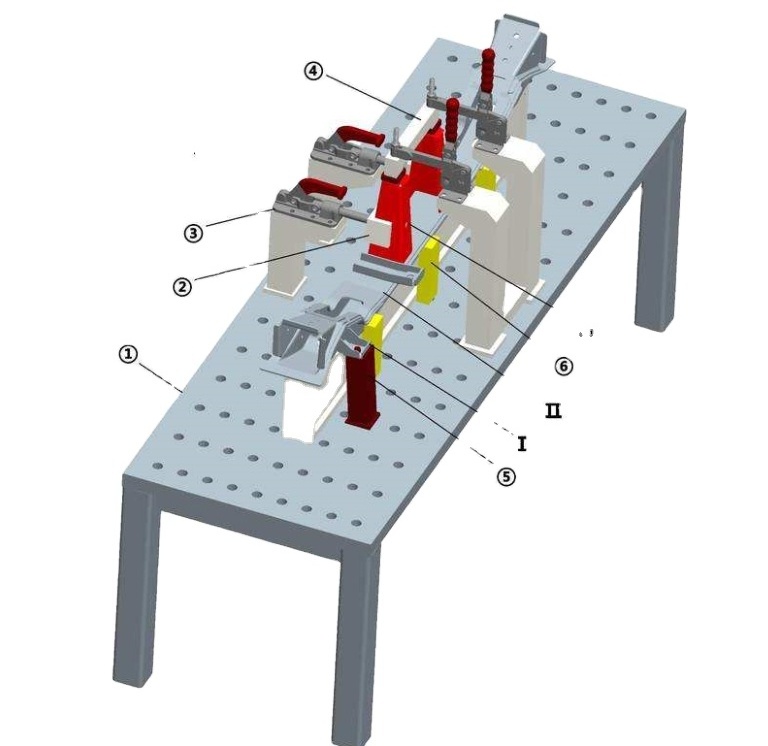

Manual tooling fixture
|
Multi-standard compatible style
|
1
|
HEHUA
|
|
10
|
L type 2-axis positioner
|
3000kg load
|
1
|
HEHUA
|
|
11
|
Accessories such as hanger, balancer
|
|
1
|
HEHUA
|
|
12
|
Master control electrical starting device
|
|
1
|
HEHUA
|
|
13
|
transformer
|
380V/200V
|
1
|
HEHUA
|
Robot laser welding
It can realize 360° all-position welding, suitable for automatic welding of wind power, construction machinery, construction machinery, auto parts, and motorcycle parts
Performance characteristics:
1. Six-axis welding robot + 2-axis rotation + gyratory positioner, 8-axis linkage system, all controlled by the teach pendant, easy to operate.
2. The positioner can achieve a load range of 300-5000kg.
3. The robot arm span range is 1400-2030mm optional.
The introduction of the workpiece style and the pre-analysis are as follows:
The introduction of the workpiece style and the pre-analysis are as follows:
1. Fan: The diameter of the workpiece is 800mm—1400mm. The total model is unknown. The heaviest model weighs about 2 ton. Need to consider using 3tonL type positioner. The workpiece is divided into external and internal welds. Because the workpiece has an internal cavity, the internal arc welding is the most difficult to weld.
The plate thickness is less than 20mm, with less grooves, and the accuracy of spot welding is unknown.
(The robot is equipped with the starting point search and arc tracking system to deal with possible accuracy problems)
Part of the welding seam space is small, and the robot with the welding torch may interfere, and it cannot be welded. (The robot is designed with a built-in welding torch to minimize the possibility of interference)
It is tentatively designed to be designed with 1 robot welding, and the possibility of subsequent robot double-station welding is reserved.
