Quick Details
-
Marketing Type:
-
New Product 2021
-
Core Components:
-
Axis
-
Product Name:
-
Worktable Milling Machine
-
Series:
-
Milling Cross Worktable
-
Material:
-
Aluminium Alloy
-
Travel Distance:
-
X: 200mm, Y: 50mm
-
Size of Working Table:
-
310 * 90mm / 12.20 * 3.54in
-
Table Height:
-
78mm
-
Grooves Spacing Distance:
-
34mm
-
Base Pitch:
-
102mm
-
Keyword:
-
Working Cross Table Milling Machine
-
Application:
-
Drilling Machine
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XR
-
Weight (KG):
-
1.45
-
Marketing Type:
-
New Product 2021
-
Core Components:
-
Axis
-
Product Name:
-
Worktable Milling Machine
-
Series:
-
Milling Cross Worktable
-
Material:
-
Aluminium Alloy
-
Travel Distance:
-
X: 200mm, Y: 50mm
-
Size of Working Table:
-
310 * 90mm / 12.20 * 3.54in
-
Table Height:
-
78mm
-
Grooves Spacing Distance:
-
34mm
-
Base Pitch:
-
102mm
-
Keyword:
-
Working Cross Table Milling Machine
-
Application:
-
Drilling Machine

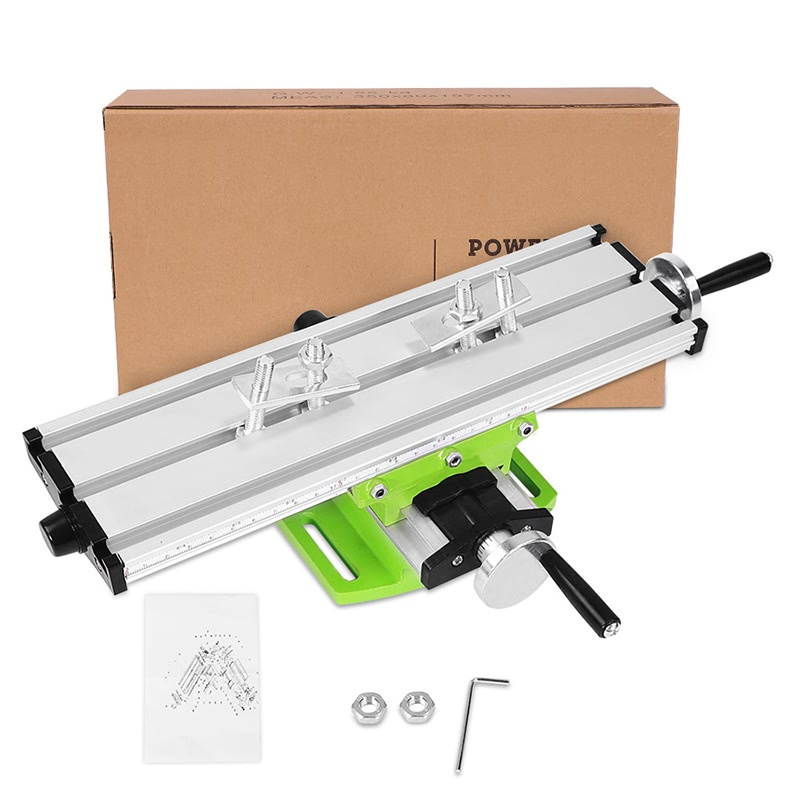

Precision Compound Bench XY Cross Slide Table Woodworking DIY Mini Worktable Metal Workbench for Milling Drilling Machine
| Product Name | Worktable Milling Machine |
| Material | Aluminium Alloy |
| Travel Distance | X: 200mm, Y: 50mm |
| Size of Working Table | 310 * 90mm / 12.20 * 3.54in |
| Table Height | 78mm |
| Grooves Spacing Distance | 34mm |
| Base Pitch | 102mm |
| Slot Pitch | 34mm |
| Application | Drilling Machine |
| Feature |
Working table with three T shaped groove, standard size of the slot is 15x8x6mm. The ruler in front is movable for positioning. Zero adjustment handwheel rotates a circle of 1.25mm and a gr-id of 0.05mm. |
The X axis stroke distance is 200mm, the Y axis stroke distance is 50mm.
Precise scale for better working, precise drilling and milling.
Working table size is 310x90mm and the height of 78mm, including two working clamps.
Very useful tool for electric drill, mini bench drill, milling machine and drilling machine.
