1.48V 250W Mid-Drive Motor: 1 pc
2. DPC245 Display + Operation Button: 1 pc
3. motor cover (AC M02 ): 1 pcs
4.
BASH GUARD(BG G520A): 1 pcs
5. 1T2 cable connect the display and front light: 1 pc
6. 1T1 Speed Detecting Sensor + Magnet: 1 pc
7. 38T Chain wheel: 1 pc
8. Left Crank + Right Crank: each 1 pc
9.screws:1pcs
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
M510
-
Brand Name:
-
BAFANG
-
Position:
-
Mid Motor
-
Model No.:
-
MM G522.250.C
-
Usage *:
-
eMTB
-
Wheel Size (Inch:
-
20-29
-
Wheel Circumference (mm):
-
1400-2400
-
Nominal Voltage (Vdc):
-
36
-
Rated Power (W):
-
250
-
nT (Rpm):
-
122
-
Max Torque (N.m):
-
95
-
Pedal Sensor:
-
Speed & Torque Integrate
Quick Details
-
Voltage:
-
36V
-
Style:
-
Two rounds
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
M510
-
Brand Name:
-
BAFANG
-
Position:
-
Mid Motor
-
Model No.:
-
MM G522.250.C
-
Usage *:
-
eMTB
-
Wheel Size (Inch:
-
20-29
-
Wheel Circumference (mm):
-
1400-2400
-
Nominal Voltage (Vdc):
-
36
-
Rated Power (W):
-
250
-
nT (Rpm):
-
122
-
Max Torque (N.m):
-
95
-
Pedal Sensor:
-
Speed & Torque Integrate
Product Description
Bafang introduces the new M510 mid-engine as the successor to the proven M500 for robust and demanding applications. As one of the world's leading manufacturers of e-bike drive systems, Bafang is committed to providing the best motor and system solutions for every category - and this continues its success with the new M510 in the powerful mid-mounted motor category.
The strong torque of 95 Nm is the same as that of the M500, but the overall torque curve of the M510 is higher than that of the predecessor model. This is evident at the maximum possible support/maximum possible support of up to 120 rpm. To further improve the efficiency of the performance improvement, the motor, segmented stator has been modified, and the magnesium casing has been designed, reducing the overall weight of the M510 by a full 500 grams (18%) to 2.9 kg (weight M500 = 3.4 kg) .
Soft start, strong acceleration
In addition, the software for startup characteristics has been optimized for smoother and more controlled startup. These characteristics allow better access to short, steep curves or steep slopes. With excellent top performance, the acceleration is powerful and as usual!
nimble and sensitive
Because it is on steep climbs or tight corners that it is important that the motor releases the right power with precise precision. Too much power can cause tires to slip, while too little power can lead to erratic handling. Thanks to the high sensitivity of the torque sensor, the M510 can absorb the right amount of power and control the right support according to the rider's pedaling force. With this performance range, the M510 mid-engine is ideal for performance-oriented use, whether in the bike park or when conquering technically demanding uphill passes!
In addition to the lighter construction, the mid-engine comes with improved water resistance, a 12V light module and integrated connections, among others. Additionally, the M510 is chain guard compatible, has the same motor mounts as the M500/M410, and offers a hidden speed sensor mounting option.
The M510 motor is compatible with most products in the Bafang product portfolio.
M510 - Powerful, compact, lightweight and dynamic
The Bafang M510 is a revised version of the predecessor M500 we covered here last year. Weight has been reduced by 18%, while power output has been increased by another 20%.
DDP service countries:
United Kingdom, Germany, Belgium, Luxembourg, Netherlands, Slovenia, France, Poland, Austria, Czech Republic, Republic, Denmark, Hungary, Slovakia, Lithuania, Spain, Sweden, Estonia, Croatia, Finland, Latvia, Italy, Portugal
250W Mid-Drive Motor
These two types are optional
Normal fixation bracket --FP G520B
N
ormal fixation bracket --FP G520A

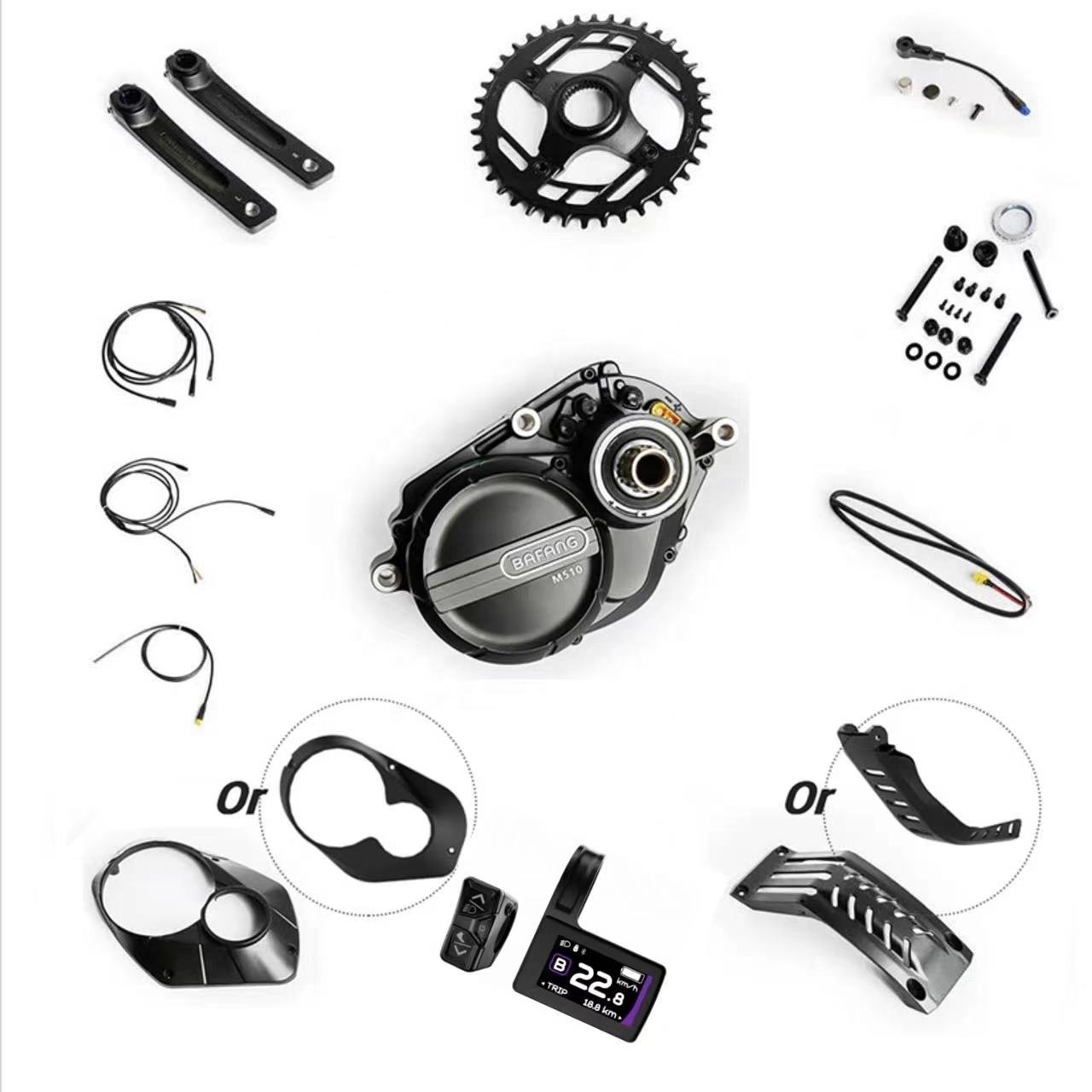

The following parts are the bafang M510 mid motor kits
DPC245
motor cover：AC M02
motor cover：AC M04
M510 controller
BUSH GUARD：BG G520B
BUSH GUARD：BG G520A
32T chain wheel
170mm cranks
speed sensors
EB BUS 1T3
FIXATION BRACKET
main cable
bafang newest display DPC245
Pls confirm your frame and choose the right BUSH GUARD and MOTOR COVER
Specification
Packing & Delivery
bafang250w M510 Packing list including :
