Quick Details
-
Warranty:
-
30 years
-
Brand Name:
-
JINKO, Jinko
-
Model Number:
-
JKM535-555M-72HL4-BDVP
-
Place of Origin:
-
Jiangxi, China
-
Panel Dimensions:
-
2278*1134*30mm
-
Application:
-
Residencial
-
Product name:
-

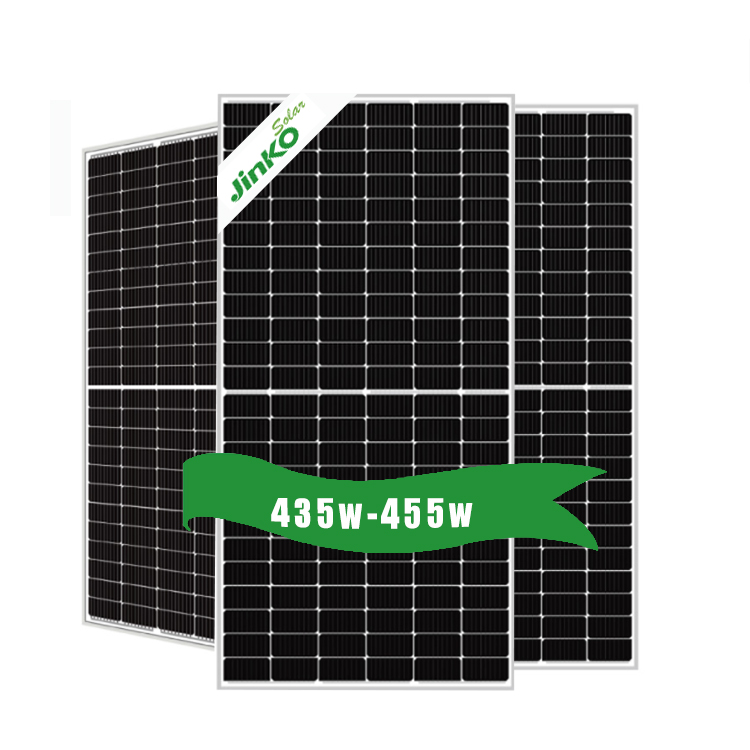

Monocrystalline Silicon Solar Panel
-
Keyword:
-
Photovoltaic Solar Energy System
-
Solar cell:
-
Monocrystalline Silicon Cells
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
IP68
-
Weight:
-
32kg
-
Name:
-
Solar Power Home System
-
Cell Type:
-
P-type Monocrystalline
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass, BIPV
-
Panel Efficiency:
-
21.48%
-
Warranty:
-
30 years
-
Brand Name:
-
JINKO, Jinko
-
Model Number:
-
JKM535-555M-72HL4-BDVP
-
Place of Origin:
-
Jiangxi, China
-
Panel Dimensions:
-
2278*1134*30mm
-
Application:
-
Residencial
-
Product name:
-
Monocrystalline Silicon Solar Panel
-
Keyword:
-
Photovoltaic Solar Energy System
-
Solar cell:
-
Monocrystalline Silicon Cells
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
IP68
-
Weight:
-
32kg
-
Name:
-
Solar Power Home System
-
Cell Type:
-
P-type Monocrystalline
Product Description
Key Features
Multi Busbar Technology
Better light trapping and current collection to improve module power output and reliability.
Longer Life-time Power Yield
0.45% annual power degradation and 30 year linear power warranty.
PID Resistance
Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.
Low-light Performance
Advanced glass and cell surface textured design ensure excellent performance in low-light environment.
Enhanced Mechanical Load
Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).
Higher Power Output
Module power increases 5-25% generally, bringing significantly lower LCOE and higher IRR.
Better light trapping and current collection to improve module power output and reliability.
Longer Life-time Power Yield
0.45% annual power degradation and 30 year linear power warranty.
PID Resistance
Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.
Low-light Performance
Advanced glass and cell surface textured design ensure excellent performance in low-light environment.
Enhanced Mechanical Load
Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).
Higher Power Output
Module power increases 5-25% generally, bringing significantly lower LCOE and higher IRR.
Specification
|
Cell Type
|
P type Mono-crystalline
|
|
No.of Half-cells
|
144 (6×24)
|
|
Dimensions
|
2274×1134×30mm (89.53×44.65×1.18 inch)
|
|
Weight
|
32 kg (70.55 lbs)
|
|
Front Glass
|
2.0mm, Anti-Reflection Coating
|
|
Back Glass
|
2.0mm, Heat Strengthened Glass
|
|
Frame
|
Anodized Aluminium Alloy
|
|
Output Cables
|
TÜV 1x4.0mm2,(+) 290mm, (-) 145mm or Customized Length
|
|
Junction Box
|
IP68 Rated
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
