small pet plastic bottle washer shredding crushing recycling machine pvc pet flakes sorting dryer machine
small pet plastic bottle washer shredding crushing recycling machine pvc pet flakes sorting dryer machine
small pet plastic bottle washer shredding crushing recycling machine pvc pet flakes sorting dryer machine
small pet plastic bottle washer shredding crushing recycling machine pvc pet flakes sorting dryer machine
small pet plastic bottle washer shredding crushing recycling machine pvc pet flakes sorting dryer machine
small pet plastic bottle washer shredding crushing recycling machine pvc pet flakes sorting dryer machine
small pet plastic bottle washer shredding crushing recycling machine pvc pet flakes sorting dryer machine
small pet plastic bottle washer shredding crushing recycling machine pvc pet flakes sorting dryer machine

small pet plastic bottle washer shredding crushing recycling machine pvc pet flakes sorting dryer machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $100000
≥5 Sets
US $89000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
MOOGE
Application:
PET Bottle Recycling
Production Capacity (kg/h):
500 - 5000
Voltage:
Customer Standard
Dimension(L*W*H):
Size
Power (kW):
110
Weight (T):
10
Raw material:
PET bottles
Final product:
Clean Plastic Flakes
Color:
Customer Choice
Used for:
Pet Bottle Washing Machine
Capacity:
300/500/1000/1500/2000kg/h
Motor:
SIEMENS Motor
Material of washing part:
304 Stainlss Steel
Final Flakes Size:
8-16MM
Output:
300kg/h~4000kg/h
name:
Plastic Pet Bottle Washing Machine
Certification:
CE Certificate

Quick Details

Machine Type:
PET Bottle Washing Line
Max.Production Capacity (kg/h):
5000
Place of Origin:
Jiangsu, China
Brand Name:
MOOGE
Application:
PET Bottle Recycling
Production Capacity (kg/h):
500 - 5000
Voltage:
Customer Standard
Dimension(L*W*H):
Size
Power (kW):
110
Weight (T):
10
Raw material:
PET bottles
Final product:
Clean Plastic Flakes
Color:
Customer Choice
Used for:
Pet Bottle Washing Machine
Capacity:
300/500/1000/1500/2000kg/h
Motor:
SIEMENS Motor
Material of washing part:
304 Stainlss Steel
Final Flakes Size:
8-16MM
Output:
300kg/h~4000kg/h
name:
Plastic Pet Bottle Washing Machine
Certification:
CE Certificate
Product Overview
PET bottle recycling machine price

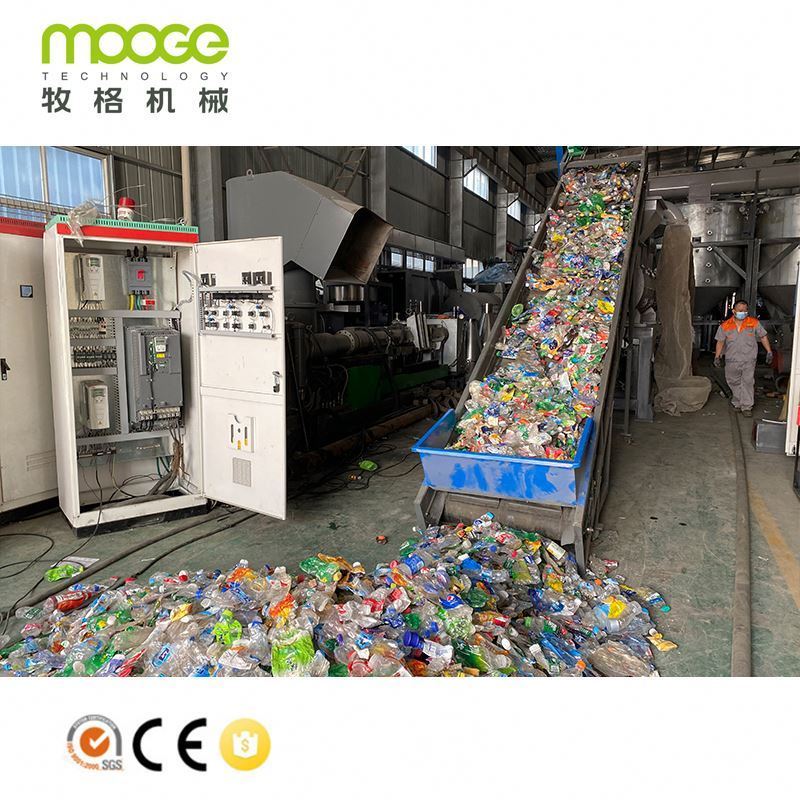

MOOGE MT series Efficient plastic recycling machine is mainly used to recycling the waste PET bottles, water bottles,cola bottles,PET sheet and PET packing containers. The Recycled waste cola bottle PET recycling machine can easily remove the labels, caps, rings, glue, dirties and other impurities, finally you will get ideal PET flakes. All your requirements of the Recycled waste cola bottle PET recycling machine will be customized.
PET  recycling line
PET bottle recycling line
PET bottle washing line
PET bottle recycling machine
PET bottle recycling crushing machine
PET bottle washing dewater system
PET bottle opener crushing machine
PET flakes washing machine
PET bottle label remover machine


Products Description
We have 500-5000 kg/h MT Series Efficient plastic recycling machine.and We can design the layout according to your requirements .
Model
Capacity
Installed Power
Steam Use
Water Supply
Manpower
Person
Area Required
MT-500
500 kg/hr
190 KW
Optional
4-5 m3/hr
4-6
60*5*5 m
MT-1000
1000 kg/hr
260 KW
Optional
6-8 m3/hr
8-10
80*8*5 m
MT-2000
2000 kg/hr
400 KW
Suggest Use
10-15 m3/hr
10-12
80*8*5 m
MT-3000
3000 kg/hr
600 KW
80,000 Kcal
20-30 m3/hr
12-16
100*8*10 m
MT-4000
4000 kg/hr
800 KW
100,000 Kcal
30-40 m3/hr
15-20
135*10*10 m
MT-5000
5000 kg/hr
1000 KW
120,000 Kcal
40-50 m3/hr
15-20
135*10*10 m
Features At-A-Glance
De-Baling machine
Function :Opening the PET bottle bales
With 4 roller cylinder to feeding the bottles equally Claw steel is very strong and the thickness is 20mm Machine chamber made by solid strong steel Working chamber size can above 1600x1600mm(depth x width) Machine fixed with support over the sorting table

Label Remover Machine
Function:remove the labels from the bottle and separate label out from bottles.
Blade made by alloyed steel for long time use Blade is fixed by screw on the rotor easy to adjustable and changeable .
The barrel is designed with doors opening on it very easy to opening and maintenance .
The machine bottom with holes to drain out liquid which contained in the bottles, good for machine use.
Plastic Crusher Machine
Function: crushing the bottles to PET flakes.
With water inlet do wet crushing
Chamber opened by screw motor
Specially designed PET bottle Crusher Machine can easily get high
output and with water doing wet grinding can extension the blades use life, reduce the dust generation.
Bearing house is outside of the crusher chamber so no dirty goes inside for longer use.
Hot Washing Tank
Function: with hot water washing to remove oil/glue and other dirty from the flakes.
The tank made with insulation layer to save energy.
Feeding caustic soda/detergent to washing Its better Heating by steam,
You can buy a steam boiler to produce the steam.
The boiler can heating up by gas/petrol/LPG
Final “Zig-zag” label separator
Function: Remove the final labels,dust and other mini material from the flakes to guarantee the PVC content.
Blower can be adjusted by invertor,
With invertor to control the air flux of blower.
Zig zag main chamber one set made by stainless steel.
Chamber with plexiglass window to open and check inside
Customer Onsite
MT-500 PET recycling machine in Myanmar
MT-1000 PET bottle recycling washing machine in Korea
MT-2000 PET bottle recycling washing machine in Mexico
MT-3000 PET bottle recycling washing machine in Turkey
MT-4000 PET bottle recycling washing machine in China
MT-5000 PET bottle recycling washing machine in Algeria
