POLYESTER FIBER FLEXIBLE PACKING STRAP EXTRUSION LINE
POLYESTER FIBER FLEXIBLE PACKING STRAP EXTRUSION LINE
POLYESTER FIBER FLEXIBLE PACKING STRAP EXTRUSION LINE
POLYESTER FIBER FLEXIBLE PACKING STRAP EXTRUSION LINE
POLYESTER FIBER FLEXIBLE PACKING STRAP EXTRUSION LINE
POLYESTER FIBER FLEXIBLE PACKING STRAP EXTRUSION LINE
POLYESTER FIBER FLEXIBLE PACKING STRAP EXTRUSION LINE
POLYESTER FIBER FLEXIBLE PACKING STRAP EXTRUSION LINE

POLYESTER FIBER FLEXIBLE PACKING STRAP EXTRUSION LINE

FOB Reference Price: Get Latest Price
≥1 Sets
US $40000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Screw Speed (rpm):
90 rpm
Place of Origin:
Shanghai, China
Brand Name:
Fiber strap extrusion line
Voltage:
380V
Dimension(L*W*H):
20-25m*5m*3.5m
Power (kW):
90
Weight:
20000 KG
Quantity of strap:
1-2
Width of strap:
9-36mm
Thickness of strap:
0.7-1.6 mm
Line speed:
120m/min
Capacity:
50-100kg/hr
Motor power:
45KW
Material of water tank:
304# stainless steel
PP material:
Virgin or recycled PP pellets
PET yarn size:
500D/1000D/2000D/3000D/6000D/9000D
Certification:
CE

Quick Details

Screw Design:
Single-screw
Screw L/D Ratio:
33:1
Screw diameter (mm):
60
Screw Speed (rpm):
90 rpm
Place of Origin:
Shanghai, China
Brand Name:
Fiber strap extrusion line
Voltage:
380V
Dimension(L*W*H):
20-25m*5m*3.5m
Power (kW):
90
Weight:
20000 KG
Quantity of strap:
1-2
Width of strap:
9-36mm
Thickness of strap:
0.7-1.6 mm
Line speed:
120m/min
Capacity:
50-100kg/hr
Motor power:
45KW
Material of water tank:
304# stainless steel
PP material:
Virgin or recycled PP pellets
PET yarn size:
500D/1000D/2000D/3000D/6000D/9000D
Certification:
CE

Polyester fiber flexible packing strap extrusion line

Machine details

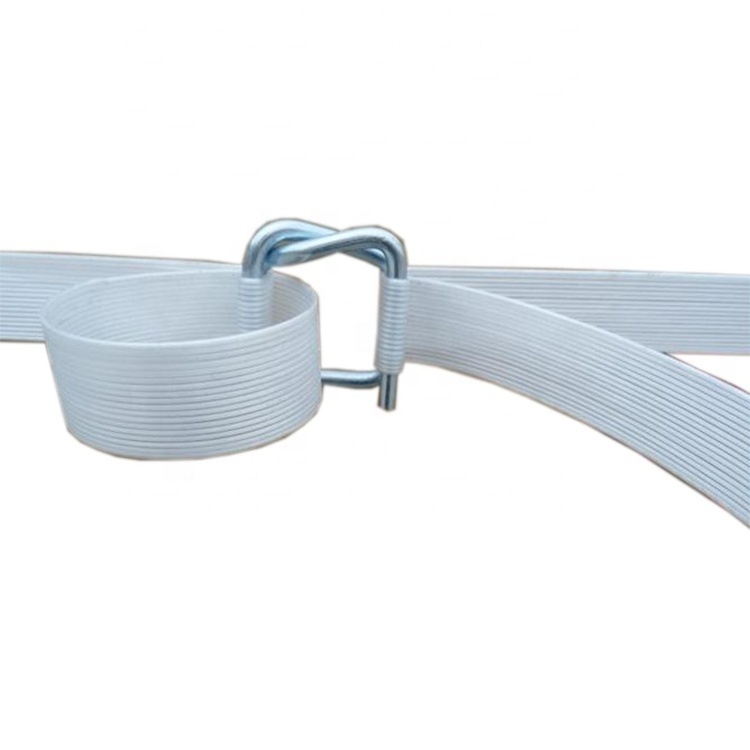

1. Introduction of Polyester Strap:

Soft fiber polyester strap adopt polyethylene terephthalate as the main raw material, made from high-strength polyester textile fibers using cross woven yarn avoid cracking, which is currently the world for a new type of environmentally friendly alternative to steel packaging materials.
Polyester strapping has many advantages over conventional, manually applied strapping products.
Would you like to eliminate transport damage to your cargo?
Are you looking for a safe and cost effective alternative to the steel strapping / metal banding you are currently using?
Polyester strapping solutions provide safe and cost effective ways to secure your cargo and prevent it from damage.

2. Fiber strap’s material:

  • PP and pet fiber
  • Fiber size: 500D 1000D 2000D 3000D 6000D 9000D

3. Character of Polyester Strap

width

loading capacity

roller meters

fiber pieces

13mm

300-488kg

1100m

12

16mm

425-690kg

850m

16

19mm

600-980kg

600m

19-20

25mm

785-1250kg

500m

21-23

32mm

1500-2600kg

230m

23

4. Benefits of Polyester Strapping Band:

  • As strong as steel
  • Safe for users & receivers
  • Cost effective
  • Does not damage your products
  • Shock absorbent
  • High retained tension
  • High system strengths
  • Printable with your company name & logo
  • Light-weight & portable
  • Chemical resistant
  • Will not rust or rot
  • Weather resistant
  • Re-tensionable

5. Features of Polyester Strapping extruder machine line:

  • We strictly make the polyester strapping line as to safe standard
  • Hanumanized design, High automatic control, easy operation, long life span
  • Precision manufacturing, low noise, high capacity
  • High speed reliable production, line speed is 120m/min

6. Main technical parameter of Polyester Strapping extruder machine line

Width of strap

9-72mm

Line speed

120m/min

Total installed power

90kw

Capacity

100-200kg/h

7. Pictures of Polyester Strapping extruder machine line
