Quick Details
-
Place of Origin:
-
Fujian, China
-
Engine:
-
Dongfeng Cummins
-
Engine Model:
-
6BT5.9
-
Rated Speed (rpm):
-
2400
Quick Details
-
Type:
-
Single Drum Roller
-
Power:
-
112kw
-
Weight:
-
14000kg
-
Place of Origin:
-
Fujian, China
-
Engine:
-
Dongfeng Cummins
-
Engine Model:
-
6BT5.9
-
Rated Speed (rpm):
-
2400

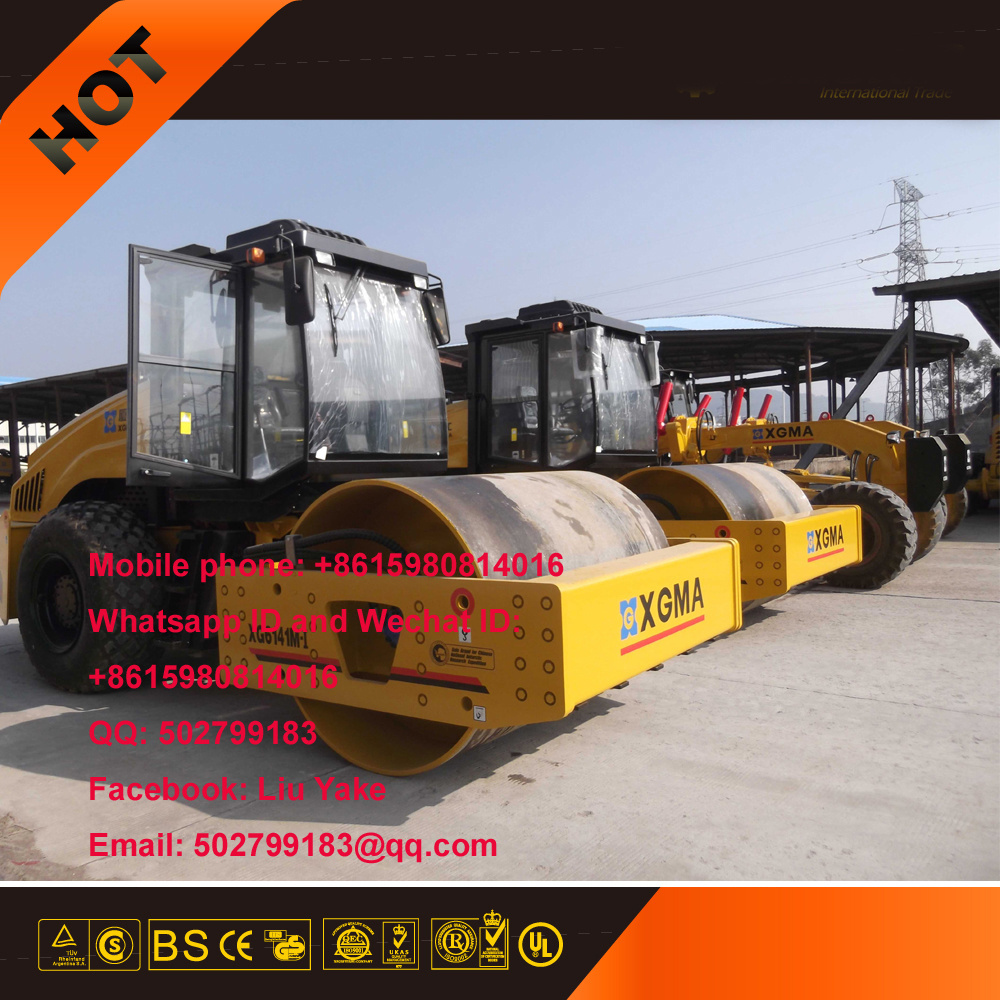

XGMA Fully Hydraulic Roller XG6141 Road Roller
1.Equipped with the closed hydraulic driving system consisting of plunger pump and plunger motor from REXROTH or SAUER, enjoying high working pressure and long service life.
2.Applying the frontand rear wheels dual-drive mode, thus providing proper driving performance.
3.Most of mass distributed on the vibrating drum i.e. more than 56% of the total weight, producing large exciting force, proper compacting.
4.performance and high working efficiency as a result.
5.The spacious and quiet cab provides excellent all-around visibility and features thermal insulation, vibration reduction.
6.The machine is also equipped with an optional air conditioner and an optional compactibility measuring instrument, according to users’ requirement.
Specification
|
Description |
Unit |
XG6141 |
|
|
Operating Weight |
kg |
14000 |
|
|
Drum Weight |
kg |
8200 |
|
|
Driving Wheel(D×W) |
mm |
Φ1550X2130 |
|
|
Travel Speed |
km/h |
0~ 4.3 |
|
|
km/h |
0~ 6.4 |
||
|
km/h |
0~ 9.2 |
||
|
Max. Grade ability |
% |
45% |
|
|
Vibration Frequency |
Hz |
30 |
|
|
Amplitude (H/L) |
mm |
1.8/0.9 |
|
|
Centrifugal Force(H/L) |
KN |
260/130 |
|
|
Min. Turning Radius |
mm |
6300 |
|
|
Engine |
Brand |
|
Cummins |
|
Model |
|
6BT5.9 |
|
|
Rated power |
kW |
112 |
|
|
Rated speed |
rpm |
2400 |
|
|
Overall Dimension(L×W×H) |
mm |
5717×2270×3200 |
|
