Quick Details
-
Model Number:
-
MTS-101-A2
-
Max. Current:
-
3A
-
Mechanical Life:
-
≥ 100,000 Cycles, ≥ 100,000 Cycles
-
Item:
-
momentary toggle switch
-
Lever:
-
Brass with nickel plated
-
Terminal Options:
-
2 PCB Terminal
-
OEM or ODM:
-
Available
-
Insulation Resistance:
-
1000mΩ min (500VDC)
-
Function:
-
ON-OFF
-
Contact Resistance:
-
50mΩ max
-
Operating Temperature:
-
-25℃~+85℃
-
Rating:
-
6A 125VAC/3A 250VAC
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Liteam
-
Model Number:
-
MTS-101-A2
-
Max. Current:
-
3A
-
Mechanical Life:
-
≥ 100,000 Cycles, ≥ 100,000 Cycles
-
Item:
-
momentary toggle switch
-
Lever:
-
Brass with nickel plated
-
Terminal Options:
-
2 PCB Terminal
-
OEM or ODM:
-
Available
-
Insulation Resistance:
-
1000mΩ min (500VDC)
-
Function:
-
ON-OFF
-
Contact Resistance:
-
50mΩ max
-
Operating Temperature:
-
-25℃~+85℃
-
Rating:
-
6A 125VAC/3A 250VAC
-
Certification:
-
CE
Product Description
Summarization
|
Product Name |

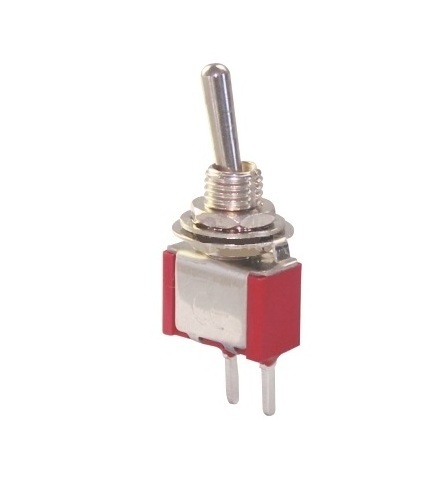

6MM 2 Position PCB Terminal Momentary 2 Pin ON OFF Toggle Switch |
| Rating | 6A 125VAC/3A 250VAC |
| Function | ON-OFF |
| Torque | Max.5kg·cm(70ounce·inch) |
| Contact Resistance | 50mΩ max |
| Electrical Life | ≥ 10,000 Cycles |
| Mechanical Life | ≥ 100,000 Cycles |
| Dielectric strength | 1000VAC 1 minute |
| Operating Temperature | -25℃~+85℃ |
| Insulation Resistance | 1000mΩ min (500VDC) |
Products Show
Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
Application
