Quick Details
-
Productivity:
-
22M³/H
-
Place of Origin:
-
Hunan, China
-
Weight:
-
42870kg
-
Dimension(L*W*H):
-
9300*11975*10422 mm
-
Max. Concrete Output:
-
183 m3/h
-
Certification:
-
CE/ISO/EPA
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
50M
-
Max. horizontal conveying distance:
-
50M
-
Productivity:
-
22M³/H
-
Place of Origin:
-
Hunan, China
-
Weight:
-
42870kg
-
Dimension(L*W*H):
-
9300*11975*10422 mm
-
Max. Concrete Output:
-
183 m3/h
-
Certification:
-
CE/ISO/EPA

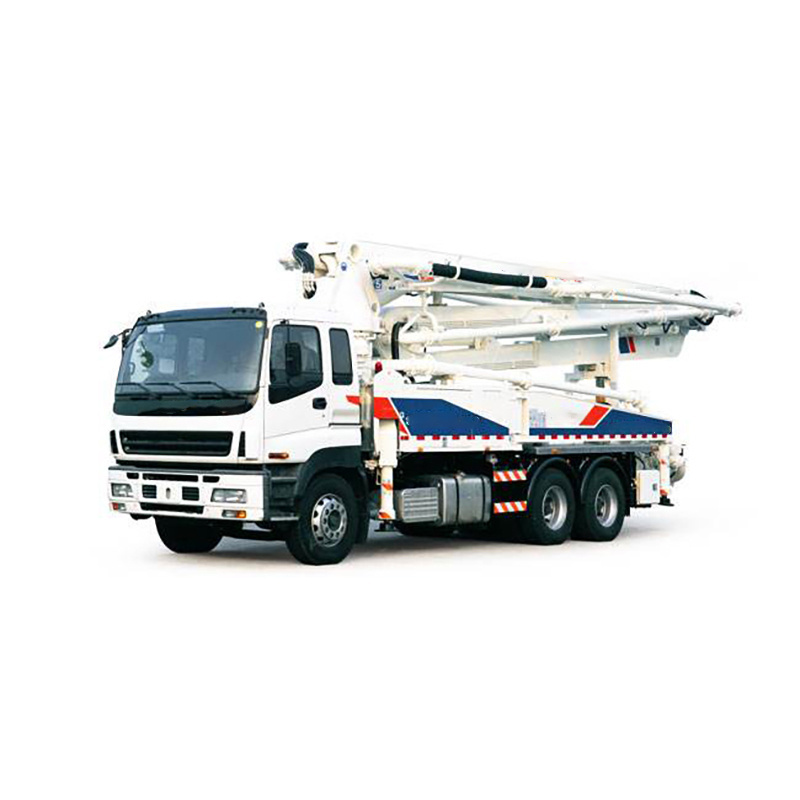

Feature For Top Brand 52X-6RZ 52m Truck Mounted Pumps For Sale
• Compact in design, 49m pump mounted on a 4-axle truck.
• Efficient pump unit, ideal for long time use.
• Agile placing boom with 6 arms with unfolding height 9.5m only,which gives a wide work range.
• One side lateral support enables to work in narrow sites.
• Controller is designed for heavy duty use, with a monitor, itmonitors the pump intelligently on working data management,real-time diagnostics, alarm logging, and service interval notice.
• Rich in configurations and high quality components.
• Boom with damping technology.
• Stabilization control on boom.
• Multilingual man-machine interface system.
• PWM+CAN dual communication mode remote control
Parameter For Top Brand 52X-6RZ 52m Truck Mounted Pumps For Sale
| Pump Unit | Max. Output | 180 m3/h |
| Max. Concrete Output Pressure | 9 MPa | |
| Rated Working Pressure | 35 Mpa | |
| Pumping Frequency | 27 min-1 | |
| Hopper Capacity | 600 L | |
| Filling Height | 1540 mm | |
| Hydraulic System Type | Closed Loop | |
| Distribution Valve | S valve | |
| Oil Cylinder Dia.*Stroke | ψ130*2100 mm | |
| Concrete Cylinder Dia.*Stroke | ψ 230*2100 mm | |
| Hydraulic Oil Cooling | Wind cooling | |
| Max. Aggregatte Dimension | 40 m | |
| Boom Section | Placing Depth | 52 m |
| Max. Horizontal Distance | 48 m | |
| Max. Placing Depth | 37.6 m | |
| Slewing Angle | ±270° | |
| Boom Number | 6 | |
| The Length of Boom Section | 10410/9120/8690/9680/6600/3500 mm | |
| Sections Folding Angle | 90°/180°/180°/240°/195°/210° | |
| Pipe Diameter | 125 mm | |
| End Hose Length | 3000 mm | |
| Min. Height of Opening Placing Boom | 10900 mm | |
| Outriggers Span(front*rear*side) | 9300*11975*10422 mm |
