Quick Details
-
Voltage:
-
220-380V
-
Dimension(L*W*H):
-
4M*1.8M*1.2M
-
Application:
-
Personal Use, DIY Cutting Wood, Wood Factory
-
Weight (KG):
-
500 KG
-
Max.Working Width(mm):
-
1100mm
-
Marketing Type:
-
New Product 2024
-
Product Name:
-
Wood Cutting Band Saw Machine
-
Keyword:
-
Precision Wood Cutting Sliding Table Saw Machine
-
Showroom Location:
-
None
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Shandong Jierui Machinery Equipment Co.,Ltd.
-
Usage:
-
woodworking, Cutting Wood
-
Voltage:
-
220-380V
-
Dimension(L*W*H):
-
4M*1.8M*1.2M
-
Application:
-
Personal Use, DIY Cutting Wood, Wood Factory
-
Weight (KG):
-
500 KG
-
Max.Working Width(mm):
-
1100mm
-
Marketing Type:
-
New Product 2024
-
Product Name:
-
Wood Cutting Band Saw Machine
-
Keyword:
-
Precision Wood Cutting Sliding Table Saw Machine
-
Showroom Location:
-
None
2024 Jierui Best Wood Sawmills

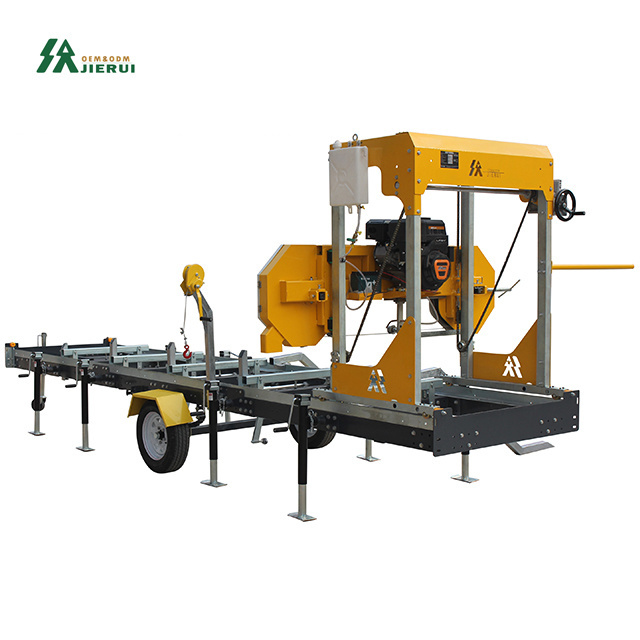

Portable sawmill
The best choice for YOU
Products Description
BUILT FARM TOUGH AND USER FRIENDLY
1.Within 10 minutes of arrival, you're ready to cut lumber
2.No matter where or how big of a job, the JIERUI SAWMILL is sure to meet your needs
3.
User friendly and ready to cut on the spot
4.Power is gasoline engine/electric motor
5.It is also effective for hardwoo
Product Paramenters
|
Sawmill parameters
|
|
|
JR59
|
JR69
|
JR80
|
JR1000
|
||
|
Max Log Cutting Dia(cm)
|
|
|
60
|
70
|
92
|
105
|
||
|
Max Log Cutting Dia(inch)
|
|
|
24
|
28
|
36
|
41
|
||
|
Max Log Cutting Length
|
|
|
3.5m
|
3.5m
|
3.5m
|
3.5m
|
||
|
Track Length
|
|
|
4m
|
4m
|
4m
|
4m
|
||
|
Motor Power
|
|
|
5.5KW/18HP
|
5.5KW/18HP
|
7.5KW/18HP
|
11KW/27HP
|
||
|
Engine power
|
|
|
Electricity/Gasoline/Diesel
|
Electricity/Gasoline/Diesel
|
Electricity/Gasoline/Diesel
|
Electricity/Gasoline/Diesel
|
||
|
Packing Size
|
|
|
2.1m*1m*1.5m
|
2.1m*1m*1.6m
|
2.1m*1m*1.76m
|
2.1m*1m*1.76m
|
||
|
Voltage Options
|
|
|
220V/380V
|
220V/380V
|
220V/380V
|
380V
|
||
|
Saw Wheel Diameter
|
|
|
400mm
|
400mm
|
500mm
|
500mm
|
||
|
Blade Size
|
|
|
3300*35*0.9mm
|
3500*35*0.9mm
|
4200*35*0.9mm
|
4200*35*0.9mm
|
||
|
Lifting
|
|
|
manual
|
manual
|
manual
|
manual
|
||
|
Walking
|
|
|
manual
|
manual
|
manual
|
manual
|
||
|
Safe cutting Speed
|
|
|
6m/min
|
6m/min
|
4m/min
|
4m/min
|
||
|
Dimension
|
|
|
4m*2.5m*1.8m
|
4m*2.5m*1.8m
|
4m*2.5m*1.8m
|
4m*2.5m*1.8m
|
||
|
Weight
|
|
|
500kg
|
550kg
|
650kg
|
770kg
|
||
|
Warranty
|
|
|
1 year
|
1 year
|
1 year
|
1 year
|
||
|
Color customization
|
|
|
Supported
|
Supported
|
Supported
|
Supported
|
||
|
Logo customization
|
|
|
Supported
|
Supported
|
Supported
|
Supported
|
||
Function
With trailer spring plate
Sturdy trailer towing device
Saw blade roller guide device，
Band saw blade cooling system
Rail anti-collision block
Adjustable log support
Portable saw blade tensioning wrench
We still have more
|
Portable sawmill
|
|
|
|
Sawn diameter of logs
|
59/69/79/92CM
|
|
|
Power support
|
Diesel
|
|
|
|
gasoline
|
|
|
|
electricity
|
|
|
OEM and ODM
|
YES
|
|
|
Portable sawmill with trailer
|
|
|
|
Sawn diameter of logs
|
59/69/79/92CM
|
|
|
Power support
|
Diesel
|
|
|
|
gasoline
|
|
|
|
electricity
|
|
|
OEM and ODM
|
YES
|
|
|
CNC sawmill
|
|
|
|
Sawn diameter of logs
|
100/130/160CM
|
|
|
Power support
|
electricity
|
|
|
|
|
|
|
|
electricity
|
|
|
OEM and ODM
|
YES
|
|
7.5T Log splitter
18T Log splitter
25T Log splitter
30T Firewood processor
Packing & Delivery
FAQ
Q: Can I customized the machine from your company?
A: Of course you can,we can manufacture the machine based on your customsized requirement.
Q: How does your factory do regarding quality controlling?
A: All raw material we used are environmental-friendly
Skillful workers care every details in handling the producing and packing process Quality control department are specially responsible for quality in each process
Q:Does the packing strong?
A:Yes, of course! All of our export packing with strong wooden box, all to meet the export packaging standards.
Q: How about the after-sale service?
A:TM online for 24 hours :Tel/Whatsapp :+8618866126681
skype,MSN,whatsapp
，also contact by email :Jerry@jerry-sawmill.com etc.
