Quick Details
-
CaO Content (%):
-
0.01
-
CrO Content (%):
-
0.1~0.3%
-
SiC Content (%):
-
0.1~1.4%
-
Place of Origin:
-
Henan, China
-
Model Number:
-
GL-48
-
Brand Name:
-
RongSheng
-
Product name:
-
Fire Clay Brick
-
Al2O3:
-
35% to 48%
-
Appearance:
-
Light Yellow Brick
-
Application:
-
Industrial Furnaces
-
Usage:
-
Refractoy
-
Feature:
-
High Temperature Resistant
-
Working temperature:
-
1400
-
Size:
-
230x114x65mm / Customized
-
Keyword:
-
Fire Clay Brick
-
Package:
-
Wooden Pallet
Quick Details
-
SiO2 Content (%):
-
50%~65%
-
Al2O3 Content (%):
-
50%
-
MgO Content (%):
-
0.8-1.2
-
CaO Content (%):
-
0.01
-
CrO Content (%):
-
0.1~0.3%
-
SiC Content (%):
-
0.1~1.4%
-
Place of Origin:
-
Henan, China
-
Model Number:
-
GL-48
-
Brand Name:
-
RongSheng
-
Product name:
-
Fire Clay Brick
-
Al2O3:
-
35% to 48%
-
Appearance:
-
Light Yellow Brick
-
Application:
-
Industrial Furnaces
-
Usage:
-
Refractoy
-
Feature:
-
High Temperature Resistant
-
Working temperature:
-
1400
-
Size:
-
230x114x65mm / Customized
-
Keyword:
-
Fire Clay Brick
-
Package:
-
Wooden Pallet
Product Description

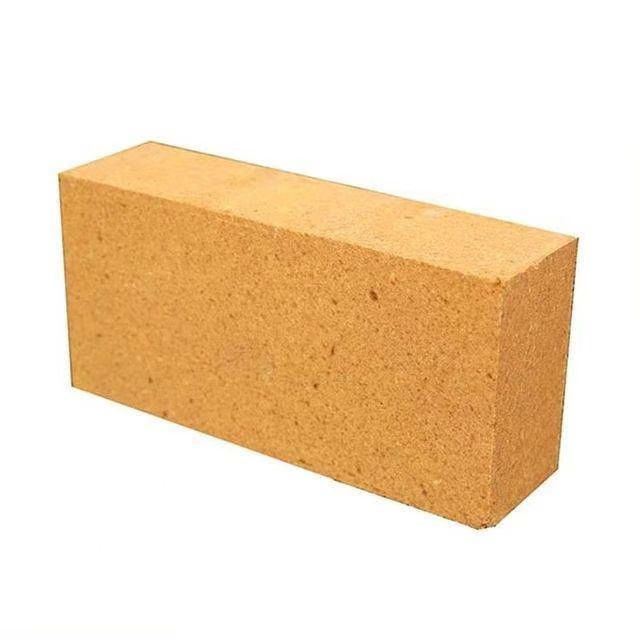

Fire clay brick is made of local top grade fireclay materials under the high temperature according to the lasted national standard, which possesses even bulk density, high strength, low thermal conductivity and low impurity. The refractoriness is up to 1690~1730 ℃.Fire clay refractory brick has wide usage and the largest production.
We bring forth high quality fire clay Bricks, which is manufactured to meet the requirements of neutral refractoriness where safe working temperature is more than 1500 degree centigrade. We offer fire clay Bricks in different specifications as per customer requirements.
Features
|
Alumina contents range from 30% to 48%
|
|
|
|
Material
|
fire clay material
|
|
|
Color
|
earthy yellow
|
|
|
Size
|
Standard sizing: 230 x 114 x 65 mm ,Special size and OEM Service also provide!
|
|
|
Shape
|
Straight Brick,special-shaped brick,checher brick,trapezoidal brick,Bricks with taper,arch brick,skew brick,ect.
|
|
Applications
It is widely used in metallurgy, building materials, chemical industry, petroleum machinery manufacturing and other industrial fields, and is applicable to heating furnace, soaking pit, heat treatment furnace, blast furnace, hot blast furnace, coke oven, tunnel kiln, rotary kiln,Topedo Car,Chemical Reactor, incinerator, metal Furnace,Glass furnace,flue and other related parts.
Specification
|
Item/Grade
|
Fire clay brick
|
|
|
|
High alumina brick
|
|
|
|
||||||
|
|
SK-30
|
SK-32
|
SK-34
|
SK-35
|
SK-36
|
SK-37
|
SK-38
|
SK-40
|
||||||
|
AL2O3% (≥)
|
30
|
35
|
38
|
45
|
55
|
65
|
70
|
82
|
||||||
|
Fe2O3% (≤)
|
2.5
|
2.5
|
2
|
2
|
2
|
2
|
2
|
2
|
||||||
|
Refractoriness(SK)
|
30
|
32
|
34
|
35
|
36
|
37
|
38
|
40
|
||||||
|
Refractoriness under load, 0.2
MPa, °C (≥) |
1250
|
1300
|
1360
|
1420
|
1450
|
1480
|
1530
|
1600
|
||||||
|
Apparent porosity (%)
|
22-26
|
20-24
|
20-22
|
18-20
|
20-23
|
20-23
|
20-22
|
18-20
|
||||||
|
Bulk density (g/cm³)
|
1.9-2.0
|
1.95-2.1
|
2.1-2.2
|
2.15-2.22
|
2.25-2.4
|
2.3-2.5
|
2.4-2.6
|
2.5-2.7
|
||||||
|
Cold crushing strength ,MPa (≥)
|
20
|
25
|
30
|
40
|
45
|
50
|
60
|
70
|
||||||
Packing & Delivery

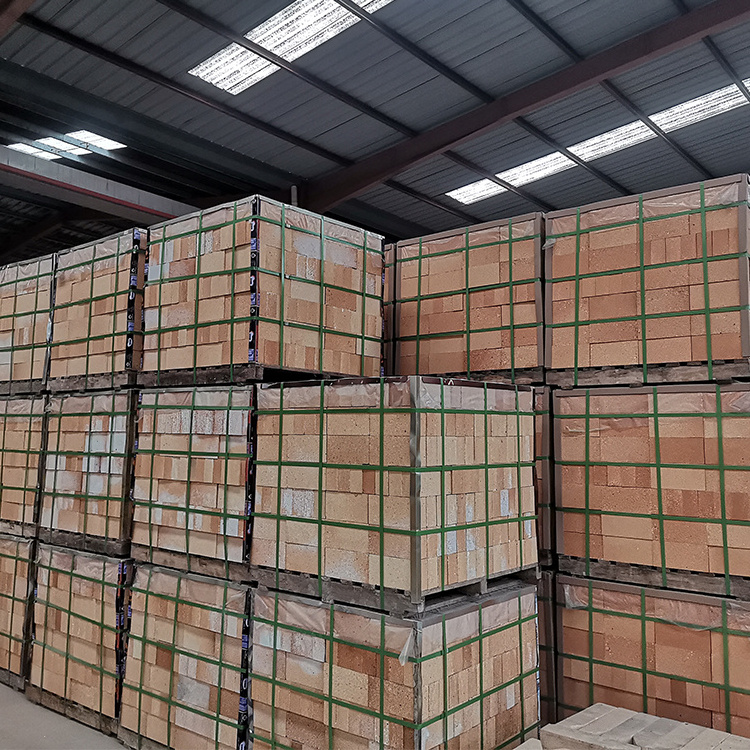

Wooden pallets with plastic film or according to your request.
1. Strong packing protects the goods from any possible damage during transit.
2. Solid packing and overall stuffing prevent the cases from vibration and jarring.
3. Necessary precaution is taken to protect goods from pilferage or rain.
Every possible precaution is taken to ensure our products in prime condition when reach customers around the world.
