Quick Details
-
Dimensions(L*W*H):
-
1.6x1.5x1.5m
-
Weight:
-
800 KG
-
Print Dimension:
-
1200x640mm
-
Print Speed:
-
3000pcs/h
-
Structure:
-
sheet
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
ink:
-
WATER BASE INK
-
plate:
-
rubber plate
-
loading:
-
by hand
-
Printing color:
-
1-6 Colors
-
Printing type:
-
Flexo Press
-
Material:
-
nonwoven, woven, paper bag
-
Printing length:
-
1200mm
-
Printing Width:
-
640mm
-
Anilox roller:
-
metal type
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HWASEN
-
Voltage:
-
380V/220V
-
Dimensions(L*W*H):
-
1.6x1.5x1.5m
-
Weight:
-
800 KG
-
Print Dimension:
-
1200x640mm
-
Print Speed:
-
3000pcs/h
-
Structure:
-
sheet
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
ink:
-
WATER BASE INK
-
plate:
-
rubber plate
-
loading:
-
by hand
-
Printing color:
-
1-6 Colors
-
Printing type:
-
Flexo Press
-
Material:
-
nonwoven, woven, paper bag
-
Printing length:
-
1200mm
-
Printing Width:
-
640mm
-
Anilox roller:
-
metal type

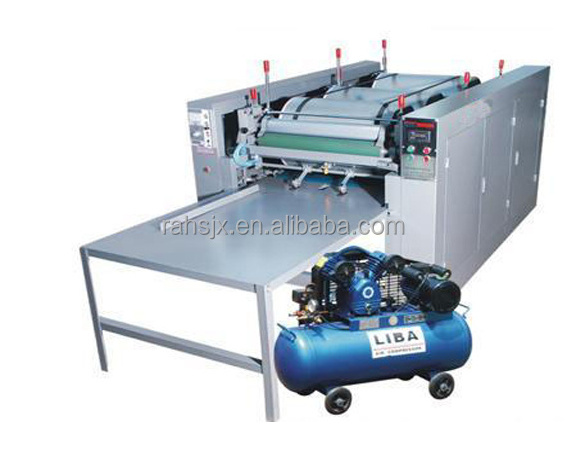

HS-850 non-woven bag sheet printer press machine
Ⅰ.Feature:
1. Meter conon woven bag imprinter press machineunter equipped with pre-alarming bell.
2. 1500-3500p/h, step
less governor.
3. Pneumatic separation, safe, low noise, excellent quality
4. Trapping accurate, error about one millimeter.
5. Mesh roll to convey the ink, save ink, save by 30%, increasing printing effect. 6. Rear transmission can be delayed with the function of airing.
Ⅱ. Main Technical Parameter
|
Model |
HS-8 5 0-2 |
HS-8 5 0-3 |
HS-8 5 0-5 |
|
Printing area |
1200×650mm |
1200×650mm |
1200×650mm |
|
Print color |
2 color |
3colors |
5colors |
|
Thickness of rubber |
4- 5 mm |
4- 5 mm |
4- 5 mm |
|
Material feeding |
1300×750mm |
1300×750mm |
1300×750mm |
|
Print cylinder |
420mm |
420mm |
420mm |
|
Production capacity |
1500-3500pcs/h |
1500-3500pcs/h |
1500-3 0 00pcs/h |
|
Power |
1.5 kw |
1.5 kw |
3KW |
|
Overall dimensions |
1.6×1 .5 ×1 .5 m |
2.5×1 .3 ×1 .2 m |
3.5×1 .4 ×1 .4 m |
III.picture showroom:
1)4 COLROS SIDE VIEW
2)4 COLORS RIGHT SIDE VIEW
3)FEEDING BAG
4)COLELCT BAG
5) PRINTING SAMPLE SHOW
