door skin plate embossing stamping frame mould drawing hydraulic press machine

door skin plate embossing stamping frame mould drawing hydraulic press machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $81000

≥3 Sets

US $79000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shandong, China

Brand Name:: Dingrun

Year:: 2020

Voltage:: Customers' Requirements

Dimension(L*W*H):: 2500X2000X4100mm

Weight (T):: 46 T

Model Number:: YQ78-3600T

Motor Power (kw):: 44 kw

Marketing Type:: New Product

Product name:: 3600t door plate embossing steel door skin hydraulic press machine

Application:: Pressing Metal Products

Type:: Hydraulic

Color:: Customers' Requirements

Material:: Q235,45# steel, cast steel

Advantage:: Multifunctional

Power souce:: Hydraulic

CNC or Not:: Normal

Nominal Force (kN):: 36000 kN

Certification:: CE

Quick Details

Machine Type:: Six Cylinder Eight Column

Slide Stroke (mm):: 400

Return Force (kN):: 36000 kN

Place of Origin:: Shandong, China

Brand Name:: Dingrun

Year:: 2020

Voltage:: Customers' Requirements

Dimension(L*W*H):: 2500X2000X4100mm

Weight (T):: 46 T

Model Number:: YQ78-3600T

Motor Power (kw):: 44 kw

Marketing Type:: New Product

Product name:: 3600t door plate embossing steel door skin hydraulic press machine

Application:: Pressing Metal Products

Type:: Hydraulic

Color:: Customers' Requirements

Material:: Q235,45# steel, cast steel

Advantage:: Multifunctional

Power souce:: Hydraulic

CNC or Not:: Normal

Nominal Force (kN):: 36000 kN

Certification:: CE

door skin plate embossing stamping frame mould drawing hydraulic press machine

Product Description

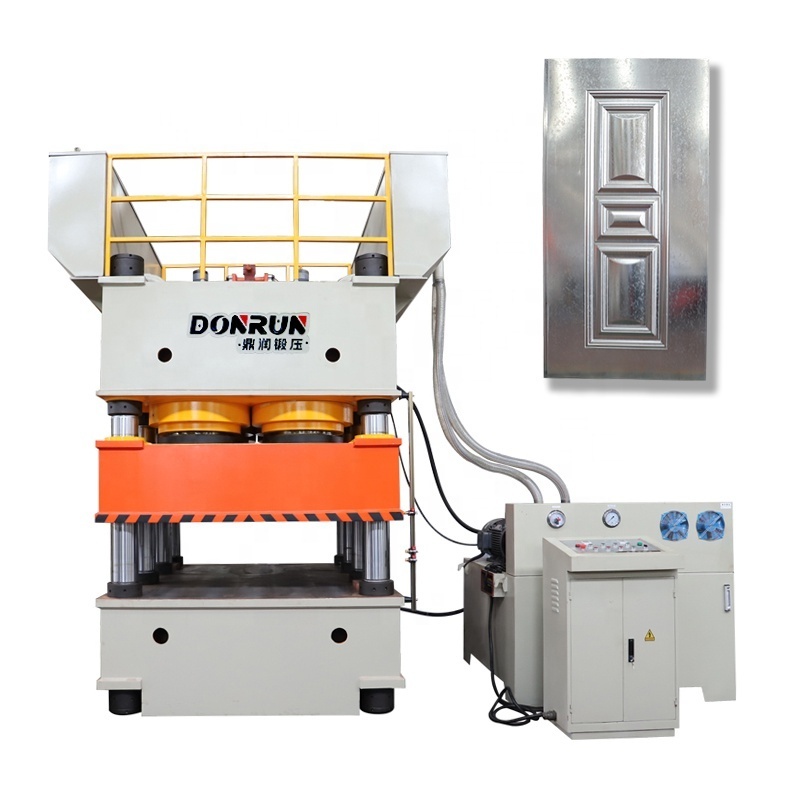

The main performance characteristics: YQ78 steel doors embossing machine can be customized according to customer demand for different tonnage of different tonnage hydraulic machine.

Working pressure, pressing speed and stroke can be adjusted within the specified parameters according to the process requirements. This machine has independent power mechanism and electrical system, and adopts button centralized control, which can realize manual, semi-automatic and automatic operation modes. It can realize two pressing methods: constant pressure and fixed stroke. Application field : This machine is a special hydraulic machine for anti-theft door, steel-wood door and interior door molding. It is suitable for all major security door manufacturers and steel wholesale markets, stamping all kinds of flower-type anti-theft door panels, stainless steel door panels, interior door panels, it is fast, safe and reliable. Energy saving, beautiful products, low cost and so on.

New products with latest designs:

1.Buffer cylinders

2.Power supply cabinet

Product main technical specifications:

Specification			Unit	3600T
Nominal force			KN	36000
Stroke of slider			mm	400
Max. opening height			mm	500
Working table size			mm*mm	2500x1500
Speed of slider	Descent speed	mm/s	150
		Working speed	mm/s	5-10
		Return speed	mm/s	80

Detailed Images

Hydraulic Press System:
The hydraulic transmission device of the machine is arranged beside the hydraulic press machine, and its role is to control the movement of the slider. The hydraulic control system adopts the integral two-way plug-in valve integrated block. It has fast response speed, large oil-passing capacity, small flow resistance, reliable operation and easy maintenance. The power device of the cartridge valve uses a large flow CY high pressure variable axial piston pump.
The large-diameter pipes of the hydraulic system are connected by flange joints, which are shockproof and leak-proof. The hydraulic oil tank is equipped with an oil filter device and a liquid level display device. The filling tank is installed on the upper end of the upper beam.

Buffer cylinders

They are installed at the two ends of the worktable. They play the role of noise reduction and cushioning during the punching of thick plates, reduce the impact on the mold and the finished product, and play a protective role.

Servo System Optional

That is the hybrid drive technology, the hydraulic actuator has stable transmission and strong anti-interference ability, especially at low speed, it can improve efficiency, save a lot of electricity costs, and obtain higher product quality.

Seal Ring

After rough machining on an ordinary lathe and finishing by a CNC lathe, the α angle is processed more smoothly, the quality is completely uniform, and the seal is tight and difficult to leak.

Piston Rod And Column

(1).Medium-frequency hardening of 45 steel, deepening the material 2-3 mm, making the surface hardness of the piston rod to 55 ,effective solution to seal ring injury，not easy to scratch it.

(2). For the workpiece after medium-frequency quenching, we use the lathe to soft throw it, and then use an cylindricall grinding machine to repair the deformation, to ensure the accuracy.

Accessories for your choice

*Punching cushioning installation *Mixing installation(hydraulic or mechanical)
*Movement working table *Touching industry display screen
*Cooling installation *PLC programmable control system
*light curtain safety protector *Didplacement device

PLC Control System

Optional

Hydraulic Servo System

Optional

Hydraulic Cooling Unit

Optional

Finshed Products

The steel door plate embossing hydraulic press machine can stamping all kinds of flower-type anti-theft door panels, stainless steel door panels, interior door panels. Make patterns according to customer drawings, and provide molds.

Related Products

Hot press machine door skin hydraulic press machine for doors hydraulic:

Our company has long been committed to the development of forging machinery.We can assure you that our products are of best
quality and reasonable price.
Contact me now.

Our Service

Pre-sale service

The expert design team can help you solve the hydraulic machinery equipment and consulting work needed by the production line, and help you save investment and reduce enerey consumption.

Process services

The task you entrusted to Dingrun, our professional management team in accordance with the national high standards of quality, do every detail.

After-sales service

Dingrun's after-sales team is skilled andexperienced. We promises to replace or repair the damages during the warranty period free ofcharge.

Company Introduction

Tengzhou Dingrun Forging Machinery Factory was built in 2005, covering an area of 20,000 square meters, has dozens of production lines, and an annual output value of 150 million. The technical team includes more than 20 engineers, many of whom have been engaged in the forging industry for more than 30 years. With an authoritative technical team to do product management and control, the products we make can withstand the test of the market.

Our machines distribute worldwide to about 20 countries where there are metal plate industry.And where there are our machines, there are good reputation and terminal user satisfaction.

Packing&Shipping

Machine Model:3600 Ton Hydraulic Press YQ78-3600T Hydraulic Press Machine
Type of package:
The press machine surface with anti-rust treatment.
The press machine inner layer of plastic waterproof packaging,
The press machine outer layer of thick wood or steel frame fixed,And then use a synthetic board package.
Combined container transport, or separate container transport.

FAQ

Q:What's the price and specification of hydraulic press machine? A: Dingrun always provide high quality machine, as we know,oversea market is more important and difficult than domestic market because of communication time costing after sales.So always,our machines has enough quality standard to make sure the machine can work more than the real warranty period. In this way ,we will save a lot and think advance for the clients. Please let me know the utensil diameter and height, the pictures and drawing will be better, so that we can check and recommend suitable machine for you.

Q:How about your machine quality?We are worry about the quality.

A:Dingrun is a mature brand in China. through our several years research in technology , our design including strcture and detailed sercurity and precision has enhanced greatly, and can match all the CE standard or mor strict standard.Our machines distribute worldwide to about 20 countries where there are metal plate industry.And where there are our machines, there are good reputation and terminal user satisfaction.

Q:Why Choose your company?

A:We can provide customized services according to customer requirements. We also have professional R &D team and fast response sales team. Strictly control each step of QA &QC system processes. We have an after sale service team than can quickly solve any problem you may have in the use.

Q:How to select your machine? A: You can tell me your specifications ,we can choose the best model for you . we also have some regular model for you to choose.You can also provide the drawings, size , photos of the products, we can design the suitable machine for you according to your requirements. After the machine is finished, you can also provide samples and we will test it for you. Q:May I send samples to test? Do you have a test fee or not? A: Yes, if you could send us samples, it will be better. For testing, we have to customize the moulds according to your products,so the moulds cost will be on your account, of course the moulds belong to you.
