Quick Details
-
Warranty:
-
1 years, 1 Year
-
Brand Name:
-
KIET
-
Model Number:
-
KET-PA-1150E
-
Place of Origin:
-
Jiangsu, China
-
Horsepower:
-
-
-
Power Source:
-
Air Source
-
Cable Length:
-
According to actual need
-
Outlet Size:
-
L-HM46
-
Power:
-
-
-
Product name:
-
Foot operated single acting air hydraulic pump
-
Material:
-
Steel
-
Certificate:
-
ISO9001:2015 & CE
-
Type:
-
Hydraulic Power Units
-
Working pressure:
-
70 MPa
-
Feature:
-
High Efficiency
-
OEM:
-
Applicable
-
Weight:
-
5.5-8.2Kg
-
MOQ:
-
1 PC
Quick Details
-
Application:
-
Automotive Industry, Biofuel Industry, Industrial Utilities, Machining, Marine, Metal and Equipment Manufacturers, Mining industry, Pharmaceutical industry
-
Pressure:
-
700 bar
-
Voltage:
-
-
-
Warranty:
-
1 years, 1 Year
-
Brand Name:
-
KIET
-
Model Number:
-
KET-PA-1150E
-
Place of Origin:
-
Jiangsu, China
-
Horsepower:
-
-
-
Power Source:
-
Air Source
-
Cable Length:
-
According to actual need
-
Outlet Size:
-
L-HM46
-
Power:
-
-
-
Product name:
-
Foot operated single acting air hydraulic pump
-
Material:
-
Steel
-
Certificate:
-
ISO9001:2015 & CE
-
Type:
-
Hydraulic Power Units
-
Working pressure:
-
70 MPa
-
Feature:
-
High Efficiency
-
OEM:
-
Applicable
-
Weight:
-
5.5-8.2Kg
-
MOQ:
-
1 PC
Product Description
|
Product Name
|

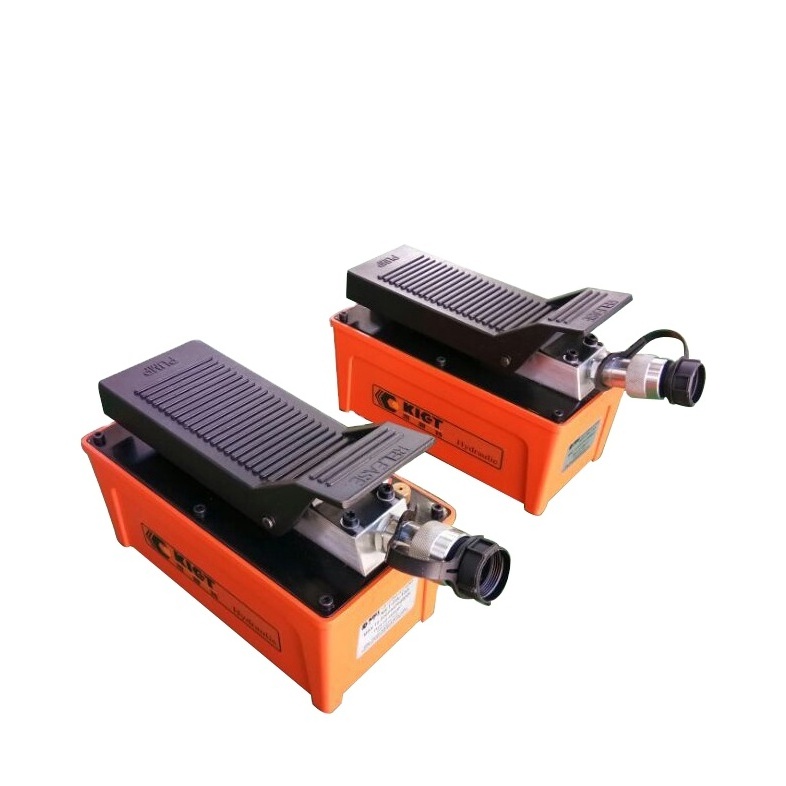

Foot operated single acting air hydraulic pump
|
|
Model
|
KET-PA-1150
|
|
Max. Working Pressure
|
70MPa
|
|
Flow
|
0.65L/min (1st stage)/0.13L/min (2nd stage)
|
|
Oil Tank Capacity
|
1311ml
|
|
Weight
|
12kg
|
Features:
1. The working air pressure 1.7-8.6 bar, so the pump can be start at very low air pressure.
2. It is compact design, light and handy and is easy to carry. The single-speed pump is for driving single acting cylinder.
3. It has durable and anodized Al-Ti alloy shell with hard surface.
4. It has low air consumption and operation cost.
5. The internal overflow valve provides overload protection.
6.The unique needle valve leads pressure relief, which is easier for the pedal operation.
7. The Al-Ti alloy oil tank can protect the pump from severe working environments.
8. The air and oil filter can protect the pump from dirt, avoid damages.
9. The unique oil tank design can satisfy all position operation and storage.
1. The working air pressure 1.7-8.6 bar, so the pump can be start at very low air pressure.
2. It is compact design, light and handy and is easy to carry. The single-speed pump is for driving single acting cylinder.
3. It has durable and anodized Al-Ti alloy shell with hard surface.
4. It has low air consumption and operation cost.
5. The internal overflow valve provides overload protection.
6.The unique needle valve leads pressure relief, which is easier for the pedal operation.
7. The Al-Ti alloy oil tank can protect the pump from severe working environments.
8. The air and oil filter can protect the pump from dirt, avoid damages.
9. The unique oil tank design can satisfy all position operation and storage.
About Us
Jiangsu Canete Machinery Manufacturing Co., Ltd.
is
a manufacturer in hydraulic tools,
such as:
• Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
• Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
• Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton);
• Hydraulic pumps, manual and electric type (max up to 3000bar);
• Integrated hydraulic lifting system solutions (4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting);
• Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
• Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
• Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton);
• Hydraulic pumps, manual and electric type (max up to 3000bar);
• Integrated hydraulic lifting system solutions (4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting);
• Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by
CE, ISO9001:2015
consecutively. Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
Why Choose Us
KIET provides
1 year
guarantee for all the hydraulic products. We promise if there is any dysfunction of the hydraulic cylinder during the quality warranty not by outside force,
we will replace a new one for free
. Any quality defects reported by customers will be responded within
12
hours
.
Packing & Delivery
|
Package
|
Wooden packing for each hydraulic cylinder, which can perfectly protect them
|
|
Shipping
|
Express parcel, by air or by sea
|
|
Our Warranty
|
We guarantee our product for 1 year
|
|
Delivery Time
|
7-20 days after deposit received and all details have been confirmed
|
|
Payment Terms
|
50% T/T, Balance before shipment
|
|
MOQ
|
1 PC
|
FAQ
1. What’s your delivery lead time?
For stock items, delivery lead time is within 5 days. For items without stock, delivery lead time is usually within 10-30 days.
For stock items, delivery lead time is within 5 days. For items without stock, delivery lead time is usually within 10-30 days.
2. What’s your warranty?
Normal warranty is 1 year, but artificial damage and incorrect use is not included. We also offer life-long maintenance.
Normal warranty is 1 year, but artificial damage and incorrect use is not included. We also offer life-long maintenance.
3. Do you accept customer Logo and customization?
Yes. We can do OEM & ODM.
Yes. We can do OEM & ODM.
4. Are you manufacturer or trading company?
We are leading manufacturer of hydraulic tools for over 25 years in China.
We are leading manufacturer of hydraulic tools for over 25 years in China.
5. Can you offer site service?
Yes. We offer chargeable site service.
