Quick Details
-
Invoicing:
-
by theoretical weight
-
Place of Origin:
-
Shandong, China
-
Thickness:
-
5-34mm
-
Application:
-
Structural Beam
-
Length:
-
6-12m, 6-12m Customization
-
Flange Width:
-
100-408mm, 100-1000mm
-
Flange Thickness:
-
8mm - 64mm
-
Web Width:
-
96mm - 1056mm
-
Web Thickness:
-
6mm-16mm
-
Brand Name:
-
HONGCHENG
-
Product name:
-
H-Beam I-Beam
-
Shape:
-
H-shape
-
Key words:
-
Hot Rolled Mild Steel Beam
-
MOQ:
-
25 Tons
Quick Details
-
Grade:
-
Q235B,SM490,SS400,Q345B,A572
-
Standard:
-
AISI ASTM JIS DIN GB
-
Tolerance:
-
±1%
-
Invoicing:
-
by theoretical weight
-
Place of Origin:
-
Shandong, China
-
Thickness:
-
5-34mm
-
Application:
-
Structural Beam
-
Length:
-
6-12m, 6-12m Customization
-
Flange Width:
-
100-408mm, 100-1000mm
-
Flange Thickness:
-
8mm - 64mm
-
Web Width:
-
96mm - 1056mm
-
Web Thickness:
-
6mm-16mm
-
Brand Name:
-
HONGCHENG
-
Product name:
-
H-Beam I-Beam
-
Shape:
-
H-shape
-
Key words:
-
Hot Rolled Mild Steel Beam
-
MOQ:
-
25 Tons
galvanized steel h beam for solar wide flange h-beams galvanized steel H sections universal columns heavy structural steel
Product Description

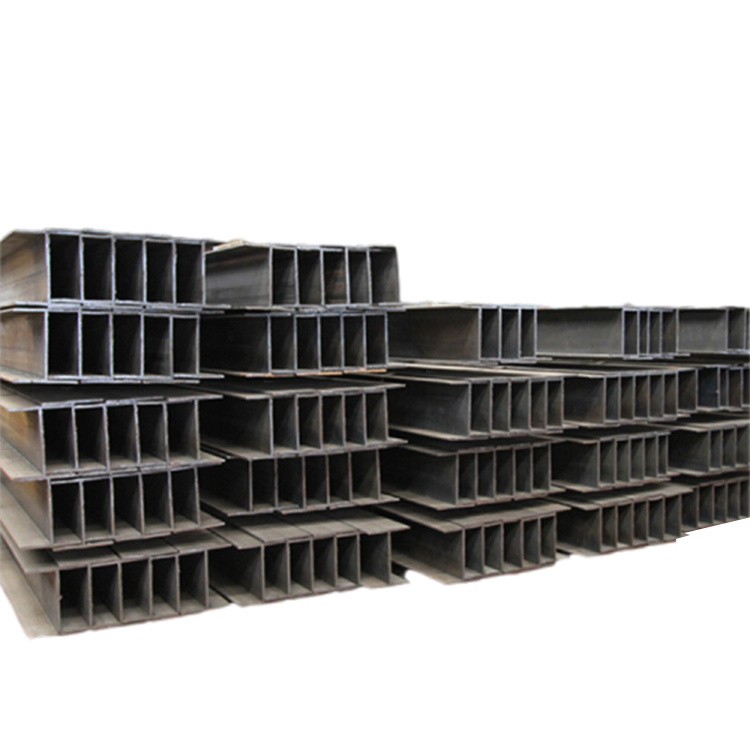

H-section steel
is a kind of economical section and high-efficiency section with more optimized cross-sectional area distribution and more reasonable strength-to-weight ratio. It is named because its section is the same as the English letter "H". Since the various parts of the H-shaped steel are arranged at right angles, the H-shaped steel has the advantages of strong bending resistance, simple construction, cost saving and light structure in all directions.
|
Product Name
|
H beam/Cheap price H Beam Astm A36 Carbon Hot Rolled Prime Structural Steel Galvanized Steel H Beams
|
|
Size |
1.Web Width (H): 100-900mm
2.Flange Width (B): 100-300mm 3. Web Thickness (t1): 5-30mm 4. Flange Thickness (t2): 5-30mm |
|
Length
|
1m - 12m , or according to your requests.
|
|
Standard
|
GB ASTM, JIS, SUS, DIN, EN etc
|
|
Material
|
Q235B Q345B Q420C Q460C SS400 SS540 S235 S275 S355 A36 A572 G50 G60
|
|
Technique
|
Hot rolled
|
|
Application
|
Construction structure
|
|
Price Item
|
FOB、CIF、DDU、FCA、EXW ,.etc
|
|
Packing
|
Export standard packing or according to customers’ requirement
|
|
Supply Ability
|
Within7 workdays,25-30days when the quantity beyond 1000tons
|
Details Images
H-shaped steel is divided into hot rolled H-shaped steel and welded H-shaped steel (H), and hot rolled H-shaped steel is divided into broad flange H-shaped steel (HW) with middle flange H-shaped steel (HM) and narrow flange H-shaped steel (HN).
HW is the H-beam height and flange width are basically equal; It is mainly used for steel core column in reinforced concrete frame
structure column, also known as stiffening steel column; It is mainly used for columns in steel structures
HM is H-shaped steel height and flange width ratio is about 1.33~ 1.75 mainly used in steel structure: used as steel frame column
in the frame structure under dynamic load is used as frame beam; For example, device platform
HN is H-shaped steel height and flange width ratio is greater than or equal to 2, mainly used in beams; The purpose of the I-beam
is equivalent to that of the HN beam;
The main materials of H-shaped steel are Q235B, SM490, SS400, Q345, Q345B and so on.
HW is the H-beam height and flange width are basically equal; It is mainly used for steel core column in reinforced concrete frame
structure column, also known as stiffening steel column; It is mainly used for columns in steel structures
HM is H-shaped steel height and flange width ratio is about 1.33~ 1.75 mainly used in steel structure: used as steel frame column
in the frame structure under dynamic load is used as frame beam; For example, device platform
HN is H-shaped steel height and flange width ratio is greater than or equal to 2, mainly used in beams; The purpose of the I-beam
is equivalent to that of the HN beam;
The main materials of H-shaped steel are Q235B, SM490, SS400, Q345, Q345B and so on.
Product Application
H beam is mainly used in industrial and civil structure beam and column members.
Steel structure support for industrial structures
Steel pile and supporting structure of underground engineering
Petrochemical, power and other industrial equipment structure
Long span steel bridge members
Shipbuilding, machinery manufacturing frame structure
Girder support for trains, cars and tractors
Port conveyor belt, high-speed baffle support
H section steel is a kind of economical section steel, widely used in industry, construction, bridge, oil drilling platform and
other aspects
Steel structure support for industrial structures
Steel pile and supporting structure of underground engineering
Petrochemical, power and other industrial equipment structure
Long span steel bridge members
Shipbuilding, machinery manufacturing frame structure
Girder support for trains, cars and tractors
Port conveyor belt, high-speed baffle support
H section steel is a kind of economical section steel, widely used in industry, construction, bridge, oil drilling platform and
other aspects
