Quick Details
-
Length:
-
Customized
-
Inside Height:
-
35mm
-
Inside Width:
-
50~200mm
-
Certification:
-
CE / ROHS
-
Working Temperatuer:
-
-30~130°C
-
Working Speed:
-
5m/s
-
Shape:
-
bridge or enclosed
-
Water absorption:
-
4%(23℃)
-
Other names:
-
cable carrier, energy chain
-
Function:
-
electrical wire protection
-
Structure:
-
combined Cable Track
Quick Details
-
Type:
-
Ladder Tray
-
Material:
-
Plastic
-
Width:
-
500
-
Length:
-
Customized
-
Inside Height:
-
35mm
-
Inside Width:
-
50~200mm
-
Certification:
-
CE / ROHS
-
Working Temperatuer:
-
-30~130°C
-
Working Speed:
-
5m/s
-
Shape:
-
bridge or enclosed
-
Water absorption:
-
4%(23℃)
-
Other names:
-
cable carrier, energy chain
-
Function:
-
electrical wire protection
-
Structure:
-
combined Cable Track
1. Grade: A-nylon
2. Size: TEZ35 series
3. Diameter: as catalog
4. Certification: ISO9001, CE
|
Product Name
|

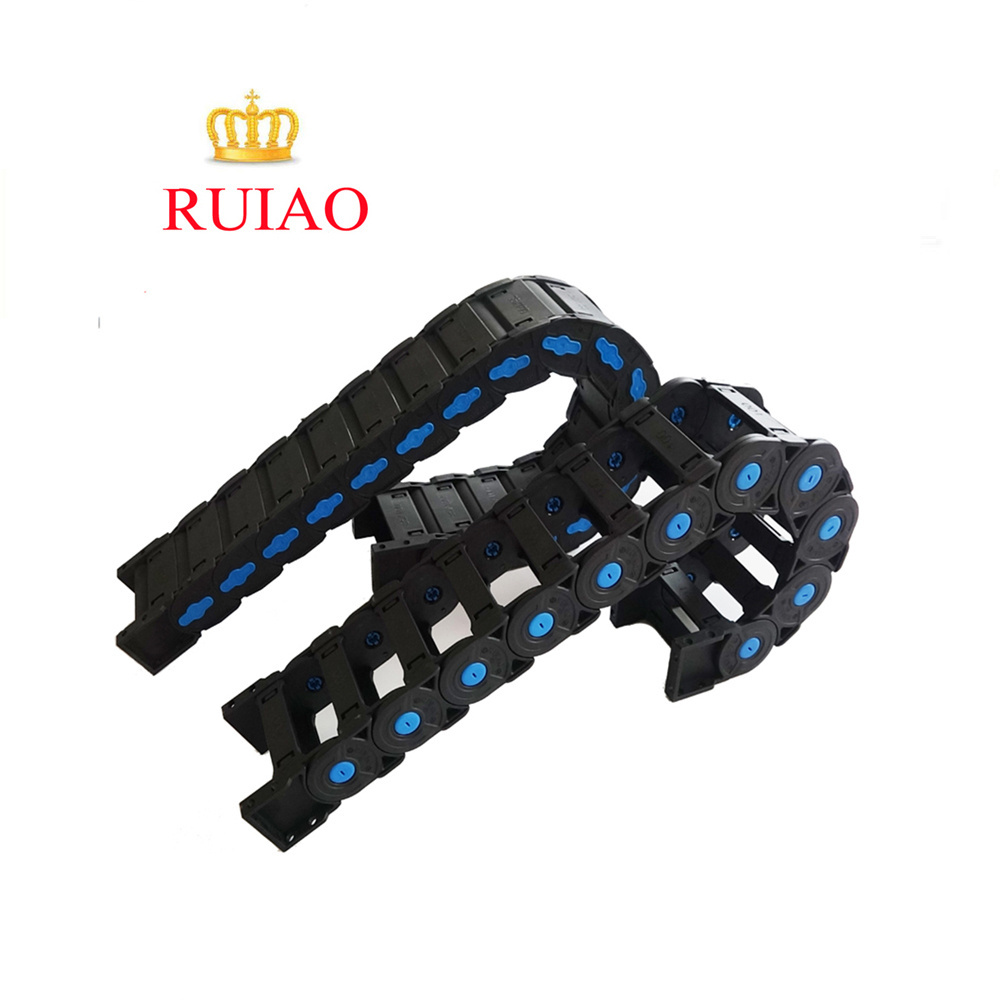

35mm height electrical flexible cable tray
|
|
Material
|
nylon
|
|
Color
|
Black
|
|
Size
|
Height*Width
|
|
Bending radius
|
75/100/125/150/175/200/250mm
|
|
Brade
|
RUIAO
|
|
Temperature
|
-20°~130°
|
|
Speed
|
5m/s
|
A brief introduction of cable flexible cable tray
1. inner height :take the most thick piece of the internally installed cable ,oil pipe,gas pipe or water pipe as the reference height plus 10%of the space height at least as the inner height HI.if overlapping ,take the overlapped height as the actual height .
2. inner width :take the sum of the outside diameter of the thicker cables ,oil pipe,gas pipe or water pipe as the reference of the inner width and leave at least 10% of the space as a margin
3. radius of a bend :take the biggest radius of a bend of a cable ,oil pipe,gas pipe or water pipe as a reference value and leave 10%of the space as a margin
|
Cable Track-light
|
Inside H*W(mm)
|
Outside H*W(mm)
|
Bending radius
|
Pitch
|
Type
|
|
TEZ35*50D
|
35*50
|
58*77
|
175/200/250
|
66mm
|
and
Enclosed
|
|
TEZ35*75D
|
35*75
|
58*102
|
|
66mm
|
|
|
TEZ35*100D
|
35*100
|
58*127
|
|
66mm
|
|
|
TEZ35*125D
|
35*125
|
58*152
|
|
66mm
|
|
|
TEZ35*150D
|
35*150
|
58*177
|
|
66mm
|
|
|
TEZ35*175D
|
35*175
|
58*202
|
|
66mm
|
|
|
TEZ35*200D
|
35*200
|
58*227
|
|
66mm
|
|
|
Cable Track-heavy
|
Inside H*W(mm)
|
Outside H*W(mm)
|
Bending radius
|
Pitch
|
Type
|
|
TLC35*50
|
35*50
|
64*85
|
75/100/125/150/
175/200
|
62mm
|
Bridge
and
Enclosed |
|
TLC35*60
|
35*60
|
64*95
|
|
62mm
|
|
|
TLC35*75
|
35*75
|
94*110
|
|
62mm
|
|
|
TLC35*100
|
35*100
|
64*135
|
|
62mm
|
|
|
TLC35*125
|
35*125
|
64*160
|
|
62mm
|
|
|
TLC35*150
|
35*150
|
64*185
|
|
62mm
|
|
|
TLC35*175
|
35*175
|
64*210
|
|
62mm
|
|
|
TLC35*200
|
35*200
|
64*235
|
|
62mm
|
|
