vs1 circuit breaker
-
Rated voltage:
-
24KV
-
Rated current:
-
630/1250KA
-
Breaking capacity:
-
20/25/31.5KA
-
Rated frequency:
-
50HZ
-
Certificate:
-
ISO9001,TEST REPORT
-
Mechanical Life:
-
20000times
-
Standard:
-
IEC60947-2
-
Brand:
-
Yuguang
-
Type:
-
High Voltage
Quick Details
-
Breaking Capacity:
-
20/25/31.5
-
Rated Voltage:
-
24
-
Rated Current:
-
630/1250/1600
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM ODM ZGVE
-
Model Number:
-
ZN63(VS1)-24
-
Product name:
-
vs1 circuit breaker
-
Rated voltage:
-
24KV
-
Rated current:
-
630/1250KA
-
Breaking capacity:
-
20/25/31.5KA
-
Rated frequency:
-
50HZ
-
Certificate:
-
ISO9001,TEST REPORT
-
Mechanical Life:
-
20000times
-
Standard:
-
IEC60947-2
-
Brand:
-
Yuguang
-
Type:
-
High Voltage

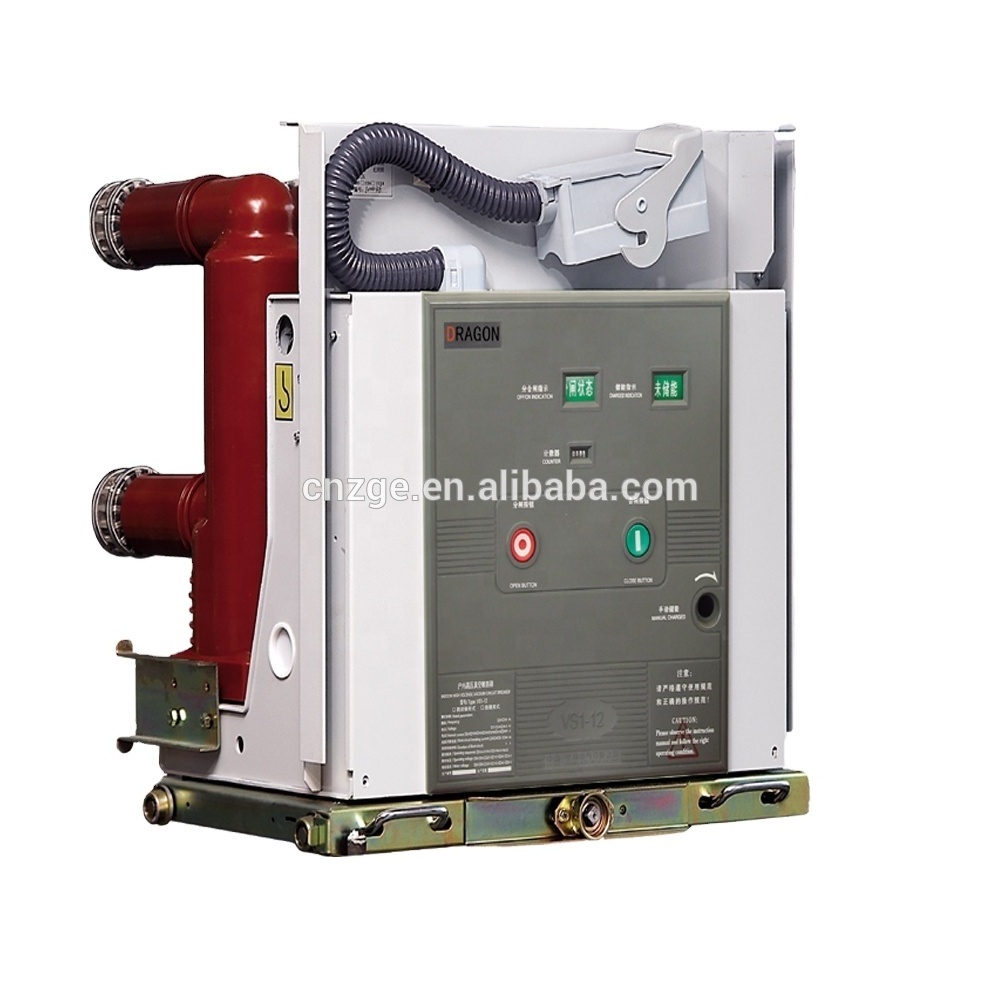

ZN63(VS1) 24kv embedded pole vacuum circuit breaker
TECHNICAL DATA
| NO. | Item | Unit | data | |||
| 1 | Rated voltage | KV | 24 | |||
| 3 | Rated lighting implus withstand voltage(peak) | KV | 75 | |||
| 4 | Rated frequency | HZ | 50 | |||
| 5 | Rated current | A | 630 | 1250 | 1600 | |
| 6 | Rated short-circuit breaking current | KA | 20 | 25 | 31.5 | |
| 7 | Rated short-circuit closing current (peak) | KA | 50 | 63 | 80 | |
| 8.3 | Rated short circuit breaking current breaking times | times | 20 | |||
| 9.5 | Rated duration of short-circuit | s | 4 | |||
| 11 | Rated operation ranking | O-0.3S-CO-180S-CO | ||||
| 12 | Rated lighting implus withstand voltage(Fracture) | KV | 125 | |||
| 13 | Rated power frequency withstand voltage 1min(Fracture | KV | 65 | |||
| 14 | Closing time | ms | ≤100 | |||
| 15 | Opening time | ms | ≤50 | |||
| 16 | Mechnical life | times | 20000 | |||
| 17 | Rated energy storee and operation voltage | V | ~220/110 | |||
| 19 | Breaking time | S | ≤65 | |||
| 20 | Energy storage time | S | ≤10 | |||
| 1 | Rated contact stroke | mm | 13±1 | |||
| 2 | Overtravel | mm | 4±1 | |||
| 3 | Center distance | mm | 275 | |||
| 4 | contact ersion limit | mm | 3 | |||
| 5 | Average opening speed | m/s | 13±0.3 | |||
| 6 | Average closing speed | m/s | 0.6±0.2 | |||
| 7 | Contact bouncing duration at closing operation | ms | ≤2 | |||
| 8 | three-phase simultaneity of contact closing and opening | ms | ≤2 | |||
| 9 | Dominant loop resistance | Rated current | KV | 630 1250 1600 2000 2500 3150 | ||
| 10 | Fix type | μΩ | ≤50 ≤45 ≤35 ≤35 ≤30 ≤25 | |||
| 11 | Handcart type | ms | ≤55 ≤50 ≤40 ≤40 ≤35 ≤30 | |||
