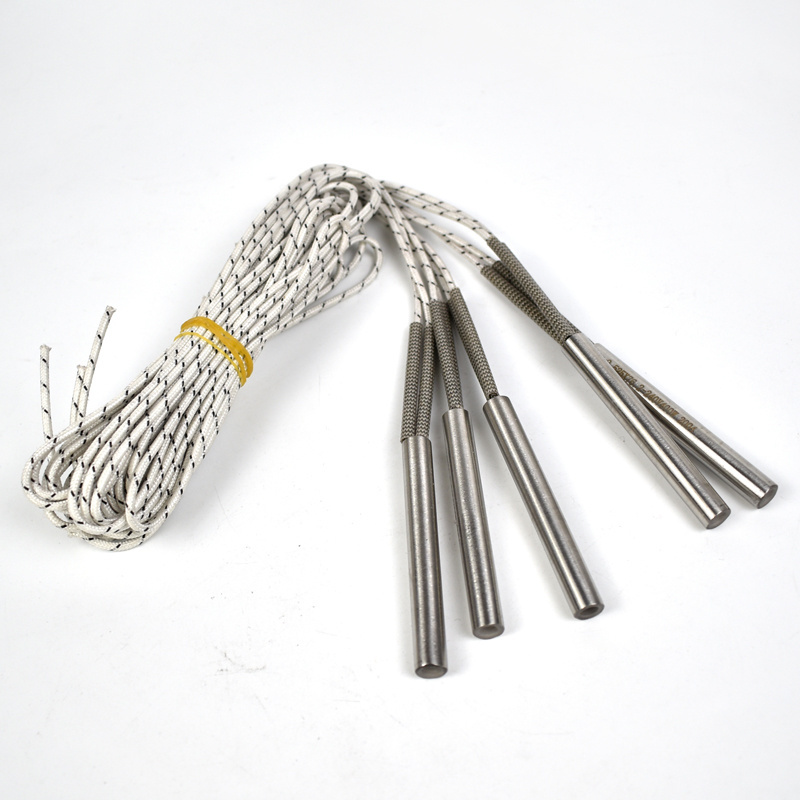

BRIGHT 240V 400W High Watt Density 9.525*76.2Mm Industrial Sus304 Cartridge Heater Heating Element

BRIGHT 240V 400W High Watt Density 9.525*76.2Mm Industrial Sus304 Cartridge Heater Heating Element

FOB Reference Price: Get Latest Price

≥5 Pieces

US $7

≥50 Pieces

US $6

≥100 Pieces

US $5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Applicable Industries:: Injection Mold, 3D Printer, Packing Machinery, Industrial Heating Element

Place of Origin:: Jiangsu, China

Brand Name:: BRIGHT

Dimension(L*W*H):: 9.525*76.2mm/Customized

Weight:: 0.06 KG

Working Temperature Range:: 1 - 700 ℃

Core Components:: Heating Wire

Product Name:: Cartridge Heater

Wattage Tolerance:: +5%, -10%

Resistance tolerance:: +10%, -5%

Resistance heating wire:: NiCr 80/20 wire

Tube Dimension:: 6-30mm

Diameter tolerance:: ± 0.01mm

Insulation material:: High-purity Mgo Powder

Tube Length:: 30-2000mm

Thermocouple Location:: type J / K / Ground wire

Quick Details

Type:: Cartridge Heater

Power Source:: Electric

Voltage:: 240V/Customized, 12-480V or customized

Applicable Industries:: Injection Mold, 3D Printer, Packing Machinery, Industrial Heating Element

Place of Origin:: Jiangsu, China

Brand Name:: BRIGHT

Dimension(L*W*H):: 9.525*76.2mm/Customized

Weight:: 0.06 KG

Working Temperature Range:: 1 - 700 ℃

Core Components:: Heating Wire

Product Name:: Cartridge Heater

Wattage Tolerance:: +5%, -10%

Resistance tolerance:: +10%, -5%

Resistance heating wire:: NiCr 80/20 wire

Tube Dimension:: 6-30mm

Diameter tolerance:: ± 0.01mm

Insulation material:: High-purity Mgo Powder

Tube Length:: 30-2000mm

Thermocouple Location:: type J / K / Ground wire

Product Paramenters

Product Name	Cartridge Heater
Main Purpose	Heating Element
Product Material	Stainless Steel 304/custom
Product Dimensions	Custom
Product Specification	Multi-specification Customization
Contact us for your special heating elements requirements

Why Choose Us

Our Advantage

☆Factory direct sales, specifications and sizes can be customized according to drawings.
☆Products use high-quality raw materials to ensure product quality.
☆Product factory professional inspection.
☆Support professional after-sales service to solve customers' worries.

Products Description

About this item

1. The smallest diameter could be 2 to 3 mm.

2. Unlimited length, 15 to 2000mm

3. High power density, and the highest power density could be 50W per square centimeter.

4. Long life time

5. Warranty: One year

6. Different type of wire available according to the usage environment.

Product Application

* Injection moulding-Internal heating. * Hot runner systems-Heating of manifolds. * Packaging industry-Heating of cutting bars. * Packaging industry-Heating of hot stamps. * Telecommunications:Deicing,Enclosure Heater. * Transportation:Oil/Block Heater,Coffee Pot Heaters. * Food Service:Steamers,Dish Washers. * Industrial:Packaging Equipment,Hole Punches,Hot Stamp.

Packaging and Delivery

Packaging

Brown box with shock-proof sponge. Custom package is available, but the price need to be negotiated.
Delivery
FCA shipping method. Generally most countries needs about 7-15 days, detailed shipping time will be according to the address and other force majeure factors.
