Quick Details
-
Graphic Format Supported:
-
AI, BMP, Dst, DXF, PLT
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Yiqiang
-
Dimension(L*W*H):
-
130*75*65cm
-
Weight (KG):
-
75 KG
-
Working area:
-
600x400mm
-
Power:
-
50W 60W 80W 100W
-
Control system:
-
Ruida6445G
-
Support System:
-
WINDOWS XP/Win7/8/10
-
Control type:
-
DSP control
-
Support formats:
-
BMP, PLT, AI, CDR, DXF, etc
-
Maximum engraving speed:
-
1000mm/s
-
Cutting speed:
-
500mm/s
-
Working table:
-
Honeycomb table
-
Motorized up down table:
-
YES
Quick Details
-
Engraving Area:
-
600*400mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
1000mm/s
-
Graphic Format Supported:
-
AI, BMP, Dst, DXF, PLT
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Yiqiang
-
Dimension(L*W*H):
-
130*75*65cm
-
Weight (KG):
-
75 KG
-
Working area:
-
600x400mm
-
Power:
-
50W 60W 80W 100W
-
Control system:
-
Ruida6445G
-
Support System:
-
WINDOWS XP/Win7/8/10
-
Control type:
-
DSP control
-
Support formats:
-
BMP, PLT, AI, CDR, DXF, etc
-
Maximum engraving speed:
-
1000mm/s
-
Cutting speed:
-
500mm/s
-
Working table:
-
Honeycomb table
-
Motorized up down table:
-
YES
Building Model for Teaching
Wood Architectural crafts
Leather Engraving
|
Technical Parameter
|
|
|
|
|
|
|
Name
|

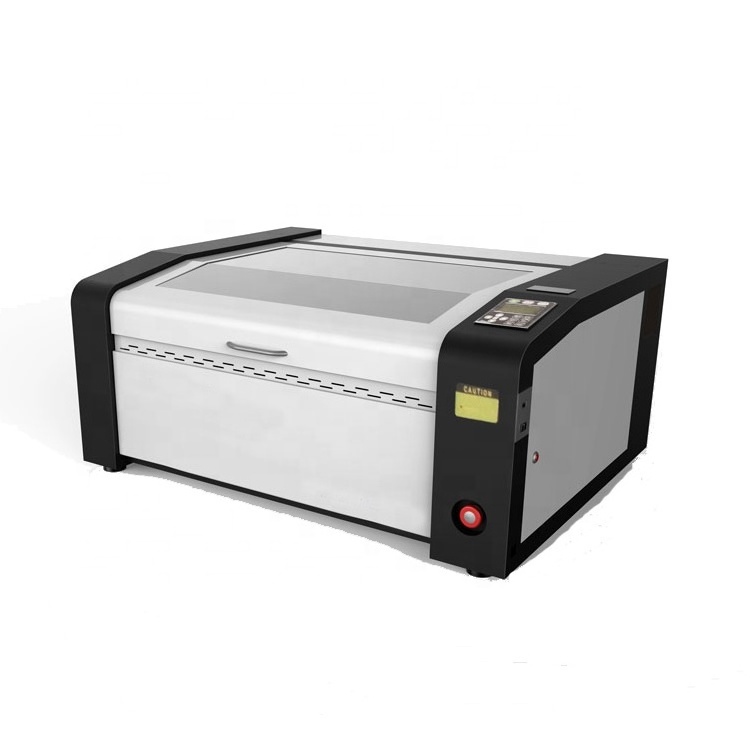

YQ-E6040 laser engraving cutting machine
|
|
|
|
|
|
Working area
|
600x400mm
|
|
|
|
|
|
Power
|
50W 60W 80W 100W
|
|
|
|
|
|
Control system
|
RDC6445G
|
|
|
|
|
|
Support System
|
WINDOWS XP/Win7/8/10
|
|
|
|
|
|
Support formats
|
BMP, PLT, AI, CDR, DXF, etc.
|
|
|
|
|
|
Maximum engraving speed
|
1000mm/s
|
|
|
|
|
|
Cutting speed
|
500mm/s
|
|
|
|
|
|
Working table
|
Honeycomb table or Knife blade table
|
|
|
|
|
|
Motorized up down table
|
YES
|
|
|
|
|
|
Positioning accuracy
|
<0.01mm
|
|
|
|
|
|
Engraving accuracy
|
0.0125mm
|
|
|
|
|
|
Cooling method
|
water cooling
|
|
|
|
|
|
Positioning way
|
Red light positioning
|
|
|
|
|
|
Water protection system
|
Yes
|
|
|
|
|
|
Water temperature requirement
|
5 ° C -35 ° C
|
|
|
|
|
|
Power off and continue working
|
Yes
|
|
|
|
|
|
Cutting thickness
|
0-20mm (depending on material)
|
|
|
|
|
|
Minimum character
|
Chinese characters 2x2mm letters 1x1mm
|
|
|
|
|
|
Machine size
|
104*75*65cm(50W)
130*75*65cm(60W 80W 100W) |
|
|
|
|
|
Machine weight
|
75kg
|
|
|
|
|
|
Packing weight
|
100kg
|
|
|
|
|
|
Working voltage
|
220V±10%, 50/60Hz
|
|
|
|
|
|
Warranty time
|
machine one year
|
|
|
|
|
|
Standards Accessories
|
Water pump, air pump, exhuast fan, power supply line, USB line, focus ruler, etc
|
|
|
|
|
|
Compatible software
|
Coreldraw, AutoCAD, Photoshop, Adobe Illustrator
|
|
|
|
|
