Quick Details
-
Weight:
-
2800 KG
-
Dimension(L*W*H):
-
5000*3600*1200MM
-
Product name:
-
agricultural machinery heavy high speed disc harrow plough
-
working width:
-
2.5m-7.2m
-
disc numbers:
-
24-64
-
Certification:
-
CE/ISO
-
Customization:
-
supported
-
Tilling depth:
-
20cm-30cm
-
Packing:
-
iron frame packing or wooden packing
-
Linkage:
-
Trailed
-
Power:
-
72hp-285hp
-
diameter of the discs:
-
650-660mm
Quick Details
-
Use:
-
for farmland harrowing
-
Place of Origin:
-
China
-
Brand Name:
-
CHENS-LIFT
-
Weight:
-
2800 KG
-
Dimension(L*W*H):
-
5000*3600*1200MM
-
Product name:
-
agricultural machinery heavy high speed disc harrow plough
-
working width:
-
2.5m-7.2m
-
disc numbers:
-
24-64
-
Certification:
-
CE/ISO
-
Customization:
-
supported
-
Tilling depth:
-
20cm-30cm
-
Packing:
-
iron frame packing or wooden packing
-
Linkage:
-
Trailed
-
Power:
-
72hp-285hp
-
diameter of the discs:
-
650-660mm
Offset 18discs 3 point disc harrow for sale tractor disc plough farm machine
Product Details

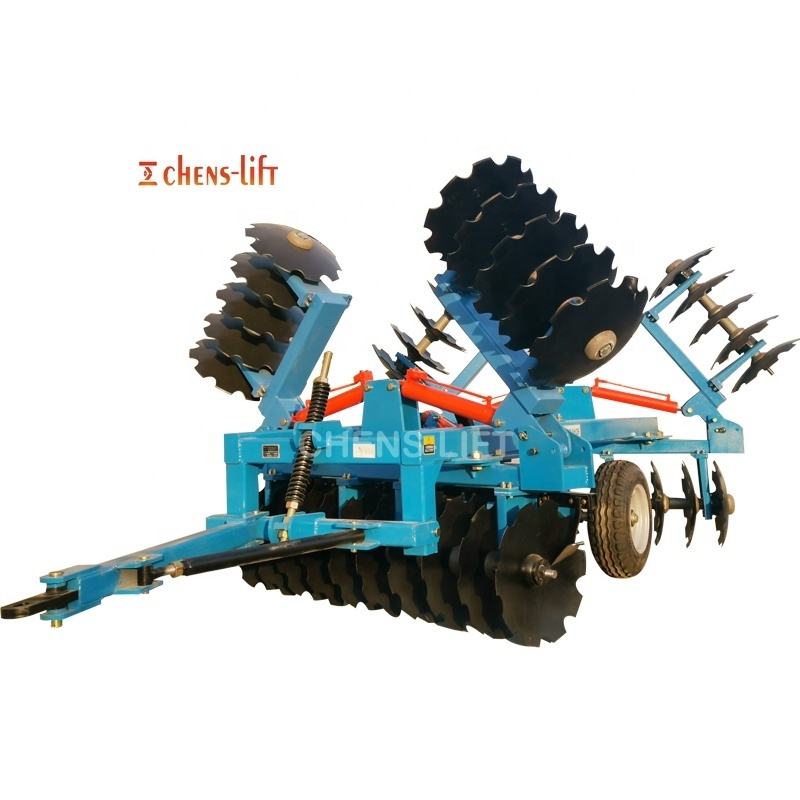

The heavy-duty disc harrow is used for cutting stubble, breaking ground surface compaction and returning straw to the field before plowing. Composed of harrow frames, front and rear harrow main beams, traction parts, harrow strings, cylinders and cylinder supports, tires, harrow blades, the main harrow body is made of high-strength alloy steel, with a solid structure, wide-width operation, and narrow-width transportation. It is folded by a hydraulic system. Easy to operate. The diameter of the harrow blades is 650mm, 660mm, 710mm, 910mm, the thickness of the harrow blades is 5-12mm, the working width is 2.0m-7.2m, and the number of harrow blades is 24-64 pieces, which can meet the requirements of your different tractor horsepower.
|
Iterm
|
1BZ-2.5
|
1BZ-3.0
|
1BZ-3.5
|
1BZ-4.5
|
1BZ-6.3
|
1BZ-7.2
|
||||
|
Working width(m)
|
2.5
|
3.0
|
3.5
|
4.5
|
6.3
|
7.2
|
||||
|
Working deepth(mm)
|
200
|
200
|
200
|
200
|
200
|
200
|
||||
|
No. of disc(pcs)
|
24
|
28
|
32
|
40
|
56
|
64
|
||||
|
Dia of disc(mm)
|
650
|
660
|
650
|
660
|
660
|
660
|
||||
|
Weight(kg)
|
1350-1340
|
1500
|
1800
|
2800
|
5200
|
5800
|
||||
|
Linkage
|
Trailed
|
|
|
Trailed
|
|
|
||||
|
Matching power(hp)
|
72~102
|
80~120
|
100-120
|
140~161
|
204~224
|
244~285
|
||||
