Quick Details
-
Application:
-
Commercial
-
Interface:
-
USB
-
Driver IC:
-
T5L0
-
Active Area:
-
93.60mm (W)*56.16mm (H)
-
Viewing Angle:
-
85/85/85/85
-
Color:
-
262K
-
Brightness:
-
250nit
-
User Interface:
-
50Pin-0.5mm FCC
-
LED Lifetime:
-
≥20000H
-
Flash:
-
16MB
-
LCD Type:
-
IPS
-
Touch Panel:
-
Capacitive Touch
Quick Details
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
DWIN
-
Model Number:
-

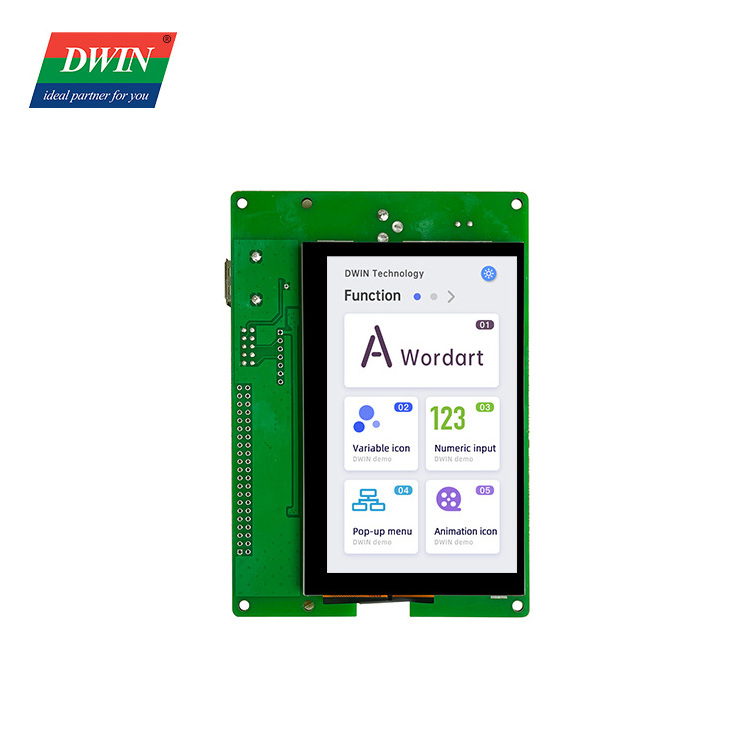

EKT043C
-
Application:
-
Commercial
-
Interface:
-
USB
-
Driver IC:
-
T5L0
-
Active Area:
-
93.60mm (W)*56.16mm (H)
-
Viewing Angle:
-
85/85/85/85
-
Color:
-
262K
-
Brightness:
-
250nit
-
User Interface:
-
50Pin-0.5mm FCC
-
LED Lifetime:
-
≥20000H
-
Flash:
-
16MB
-
LCD Type:
-
IPS
-
Touch Panel:
-
Capacitive Touch
Product Specification
Display
|
Item
|
Parameter
|
|
Description
|
|
||
|
Color
|
262K（262144）colors
|
|
18 bit color 6R6G6B
|
|
||
|
Panel Type
|
IPS
|
|
IPS TFT LCM ,wide viewing angle
|
|
||
|
Viewing Angle
|
85/85/85/85 (L/R/U/D)
|
|
Best View: symmetrical
|
|
||
|
Active Area
|
93.60mm (W)×56.16mm (H)
|
|
480×800 Pixel
|
|
||
|
Resolution
|
480×800
|
|
Support 0°/90°/180°/270°rotated display
|
|
||
|
|
|
|
≥20000H(Continuous working with maximum brightness, time of the brightness decays to 50%)
|
|
||
|
|
|
|
100 levels adjustment.(It's not recommend to set brightness to 1%~30% of the maximum, which may lead a flicker)
|
|
||
Voltage & Current
|
Item
|
Conditions
|
Min
|
Typ
|
Max
|
Unit
|
|
Power Voltage
|
-
|
6.0
|
12.0
|
36.0
|
V
|
|
Operation Current
|
VCC = +12V, Backlight on
|
-
|
120
|
-
|
mA
|
|
Working Humidity
|
VCC = +12V, Backlight off
|
-
|
45
|
-
|
mA
|
Reliability Test
|
Item
|
Conditions
|
Min
|
Typ
|
Max
|
Unit
|
|
Working Temperature
|
60%RH at 12V voltage
|
-20
|
25
|
70
|
℃
|
|
Storage Temperature
|
-
|
-30
|
25
|
85
|
℃
|
|
Working Humidity
|
25 ℃
|
10%
|
60%
|
90%
|
RH
|
Interface
|
User Interface
|
50Pin-0.5mm FCC
|
|
|
|
|
||||
|
USB Interface
|
Yes
|
|
|
|
|
||||
|
SD Card Interface
|
Yes (SDHC/FAT32 Format)
|
|
|
|
|
||||
UI & Peripheral
|
UI Version
|
TA / DGUSⅡ (DGUSⅡ pre-installed)
|
|
|
|
|||
|
Peripheral
|
Capacitive touch panel, Buzzer
|
|
|
|
|||
Dimension
|
Dimension
|
131.42 mm(W) ×93.47mm(H) ×19.40mm(T)
|
|
|
|
|||
|
Net Weight
|
135g
|
|
|
|
|||
Disclaimer: The product design is subject to alternation and improvement without prior notice.
DWIN Technology is established in year 2003,always focusing on Human-machine Interaction.The headquarter is located in Beijing,China,which has 400,000 square meters production park in Hunan province,China.
The product includes the LCD module, touch panel,ASIC,Intelligent solution etc.
Product Recommendation
FAQ
DWIN website:
www.dwin-global.com
Question 1
:
How can I start development with a DWIN LCD Module? Can I assemble it directly on my machine?
Answer:
No, you should update the program to LCD at first, and then assemble it.
Step 1, check the software platform of the screen, it mentioned in datasheet.
Step 2, use the correct development SDK (different platform use different SDK) to finish developing.
Step 3, update software program and test
Step 4, when test OK, assemble it on machine.
Question 2:
What industries are DWIN LCD used in?
Answer:
Beauty machine, Physical therapy, Health and fitness, Medical treatment, Air treatment, Air control, Transportation (Car &ship instruments), instruments and apparatus automation, Electricity, Water treatment, IC design and manufacture, Kitchen appliances (Juicer, oven, ice machine, ice-cream machine, kitchen ventilator), New energy(Photovoltaic, Wind electricity, Charging Pile), Household appliances…
Question 3:
Does DWIN product need a MOQ when purchase? I only need some samples in the first.
Answer:
No MOQ for standard product, and we have free sample for application, please leave messages to us on Alibaba.com
Question 4:
Will DWIN have online technical support?
Answer:
Yes of course, below ways you can get technical support.
- Whatsapp: +86 19192113166
- DWIN website: www.dwin-global.com
- DWIN Forum: https://forums.dwin-global.com/
- Leave messages to us on Alibaba.com
Question 5:
What kind of Express are supported? Trade terms is ?
Answer:
DHL, TNT, UPS, Fedex. Trade terms is EXW.
