Quick Details
-
Model Number:
-
A42F-16C/25/40
-
Brand Name:
-
Haiyi
-
Standard or Nonstandard:
-
Standard
-
A42F:
-
soft sealing safety valve
-
suitable temperature:
-
-40DegC~+80DegC
-
suitable medium:
-
liquefied petroleum gas,liquid ammonia and other corrosive medium
-
pressure:
-
low and high pressure
Quick Details
-
Port Size:
-
DN15~150(1/2"~6")
-
Warranty:
-
12month
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
A42F-16C/25/40
-
Brand Name:
-
Haiyi
-
Standard or Nonstandard:
-
Standard
-
A42F:
-
soft sealing safety valve
-
suitable temperature:
-
-40DegC~+80DegC
-
suitable medium:
-
liquefied petroleum gas,liquid ammonia and other corrosive medium
-
pressure:
-
low and high pressure

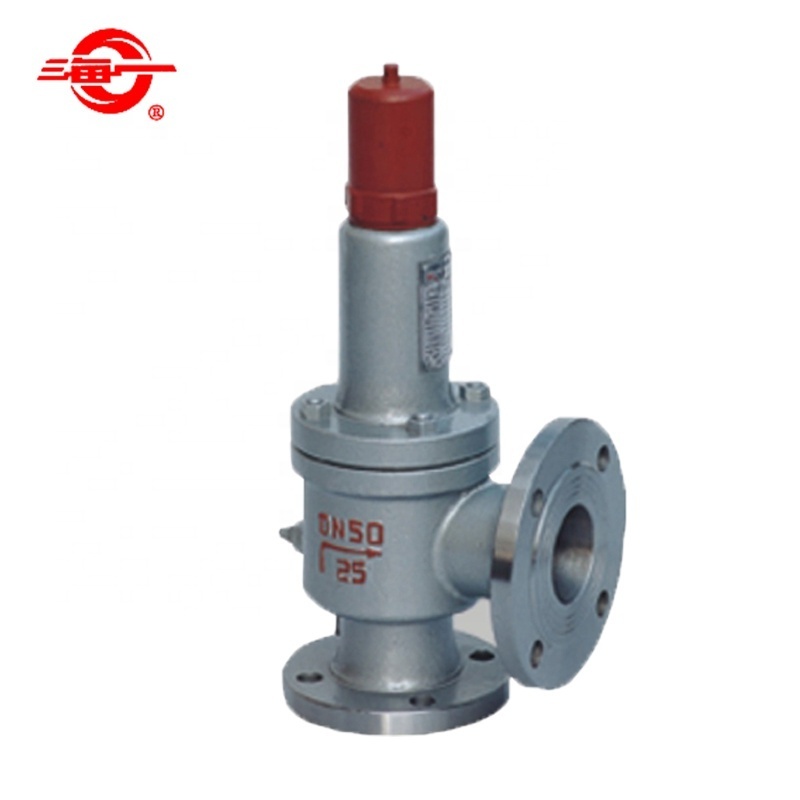

Type: LPG safety valve/Pressure relief valve (Spft sealing)
Model:A42F-25C DIN/ANSI/GB or can accept
Suitable temperature :-40 °c ~+80 °c
API526/GB/DIN Standard can accept
Suitable medium:Liquid
S pecifications:
1. TS Certificate with A level:There are less than 40 enterprises have it in China
2. ISO9001;2001 Certificate ;CE Certificate;API
3. 23years’ experience
4. Export to many countries and keep a long-term cooperation with our customers
5. Every valve has 12months guarantee.
( Can do and paint as your required )
Our Competitive advantages:
1.Our company has 23years’ experience in producing all kind of safety valve and have the self-operated exporting and exporting rights.
In order to offer a better solution for your meet.W e need follow information:
l Design standard.
l Connection standard .
l Size.
l Set Pressure
l Working Pressure .
l Body material .
l Trim (Material for inside parts).
l Connection type.
l Operation type. ( Without lever or not )
l Medium.
l Temperature.
l Ambient temperature range . Corrosion considerations.
l Application Descripetion.
l Painting color.
l Nameplate
Product detail:
| workingtemperature | A42F -40~+80Deg.C | ||||||||||||||
| Suitable medium | petroleum gas | ||||||||||||||
| Nominal diameter | 25 | 32 | 40 | 50 | 80 | 100 | 125 | 150 | |||||||
| Dimension | d0 | 15 | 20 | 25 | 32 | 50 | 65 | 80 | 100 | ||||||
| L | 100 | 115 | 120 | 135 | 170 | 205 | 205 | 255 | |||||||
| L1 | 95 | 100 | 110 | 120 | 135 | 160 | 180 | 230 | |||||||
| DN' | 32 | 40 | 50 | 65 | 100 | 125 | 150 | 175 | |||||||
.
