Quick Details
-
Product name:
-

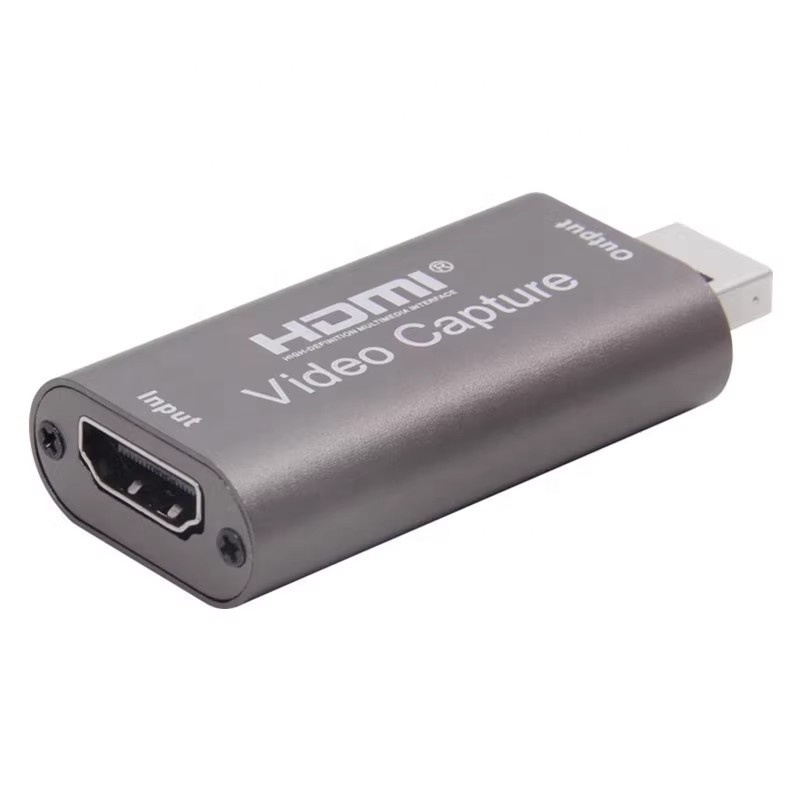

HDMI Video Capture USB 2.0
-
Color:
-
Gray
-
Size:
-
64x28x13(mm)
Quick Details
-
Brand Name:
-
neutral
-
Model Number:
-
HD-5
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
HDMI Video Capture USB 2.0
-
Color:
-
Gray
-
Size:
-
64x28x13(mm)
Product Description
|
Product Name
|
USB2.0 video capture card
|
|
Material
|
metal
|
|
Function
|
Computer and mobile phone
|
|
Package
|
box packing
|
-
Product performance description
-
The video capture can capture both HDMI video and HDMI audio, sending audio and
video signals to computers and smart phones for preview and storage. Suitable for high definition
acquisition, teaching recording, medical imaging, etc.
Product Usage
-
-
Product usage introduction
-
Product Specifications:
HDMI resolution: Large input can be 3840×2160@30Hz
Support video format: 8/10/12 bit dark color
Video output format: YUV, JPEG
Video output resolution: large output up to 1920×30Hz 1080
Supported audio format: L-PCM
Input cable distance: ≤15m, AWG26 HDMI standard cable
Working current: 0.4A/5VDC
Operating temperature range: (-10 to +55℃)
Dimensions (L x W x H) : 63x28x13 (mm)
-
Product connection and operation
-
1: Use an HDMI cable to connect the UHD signal source to the HDMI input for video capture. 2: Use a usb cable to connect your computer to the usb port for video capture. 3: USB Video Capture (OBS) Procedure: Open the software → Select the source "Video capture equipment"?? Set the image size. Select "Studio Mode" (Double window) Select "Start Recording"
