Quick Details
-

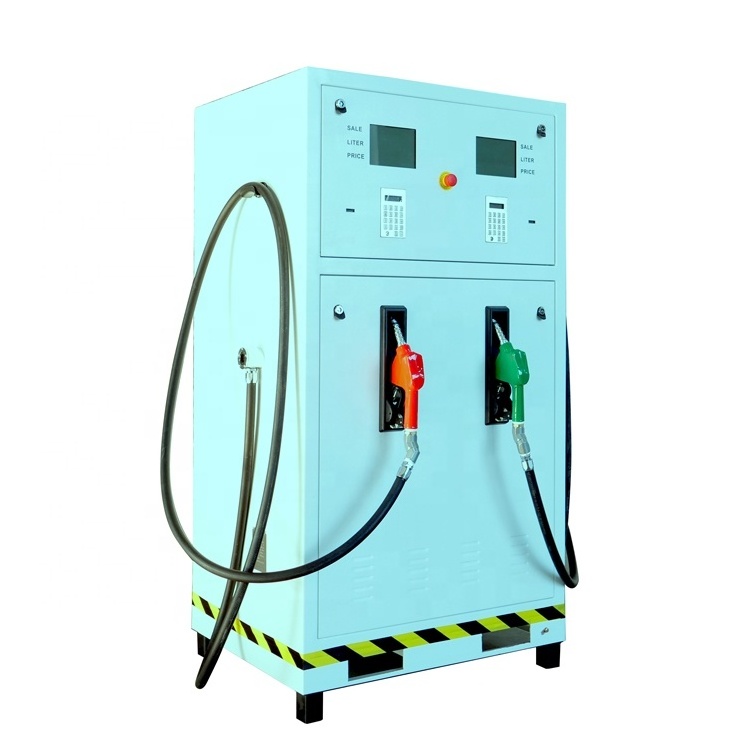

Product name:
-
Mini fuel station
-
Accuracy:
-
±0.30%
-
Repeating Accuracy:
-
≤0.15%
-
Flow rate:
-
70L/min±5L
-
Incoming vacuum:
-
≥54kPa
-
Medium:
-
Diesel or gasoline
-
Unit price range::
-
0-99.99$/L
-
Capacity:
-
600-3000L
-
Accumulative counting range:
-
0-9999999999.99 L
-
Current:
-
36A
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Bluesky
-
Model Number:
-
600Liters Mini fuel station
-
Product name:
-
Mini fuel station
-
Accuracy:
-
±0.30%
-
Repeating Accuracy:
-
≤0.15%
-
Flow rate:
-
70L/min±5L
-
Incoming vacuum:
-
≥54kPa
-
Medium:
-
Diesel or gasoline
-
Unit price range::
-
0-99.99$/L
-
Capacity:
-
600-3000L
-
Accumulative counting range:
-
0-9999999999.99 L
-
Current:
-
36A
Bluesky fuel management system for gas stations. Its main function is to monitor and manage the fuel dispenser's working status in the gas station.
The fuel management system's hardware is made up of a management PC and communication box. The communication box is a bridge that connects the PC and the fuel dispenser.
The communication box is connected to the PC by an RS232 cable. One end of the RS232 cable connects to the communication box's RS232 port, the other end connects to the PC's serial port.
It has12 navigate sockets with 4 pins, it can connect 12 fuel dispensers. If the dispenser's number is more than 12, then we should use 2 communication boxes and should be level connected. Use our level connect cable to connect each “level connect” port in the communication box.
In this way, the maximum number of nozzles connected is 48(48 single dispensers, 24 double dispensers). The PC which installs the management system software works under the Windows XP operation system, and it has two kinds of display interface: graphics, sheet. When in graphics interface, it can make individual set to nozzle menu.
The system has two kinds of operation modes: monitor, control.
It can control the fueling indoors, and have many kinds of gathering method like cash, oil ticket, keep account, and have the function of voice report and receipt print after each fueling. The system has abundant reports: shift report for cashier, shift report for the attendant, shift report for keep account, shift report for commodity, monthly report for keep account, monthly report for oil tank, monthly report for a gas station, and so on.
It is very simple to operate, and easy to use, it can absolutely reflect all the sales status of the gas station, it can make the gas station's management more normative, improve the work efficiency and increase the benefit, it is an efficient guarantee for gas station modern management.
|
Item |
Technical index |
Item |
Technical index |
|
|
Power |
AC220V/50Hz ,DC12,DC24 |
Capacity |
1000 -3000L |
|
|
Measure |
Accuracy |
±0.30% |
Medium |
Diesel or gasoline |
|
Repeatability |
≤0.15% |
Ex-proof certificate |
|
|
|
Flow rate |
70L/min ±5L |
Working environment |
-25 ℃ - +55℃ |
|
|
Accumulative counting range |
0-9999999999.99 L or $ |
Relative humidity |
30%-90% |
|
|
Single counting range |
0-9999.00 L or $ |
Incoming vacuum |
54kPa |
|
|
Current |
36A |
|||
|
Unit price range |
0-99.99$/L |
Nozzle |
3/4” or 1” nozzle |
|
|
Hose |
3/4” or 1” hose |
|||
