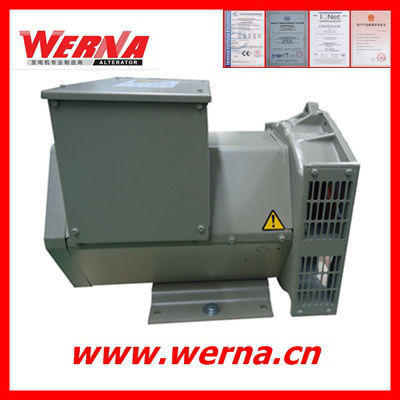

dynamo generator used stirling engine 16kw/20kva

FOB Reference Price: Get Latest Price

≥5 Pieces

US $550

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

manufacturer:: Wuxi City ,Jiangsu Prov ,China making alternators

Output Type:: AC Three Phase & Single Phase diesel generator

Terminal:: 12 / 6 Wire

Rated Voltage:: 110V~690V

Frequency:: 50Hz or 60Hz

Speed:: 1500Rpm or 1800Rpm;3000Rpm or 3600Rpm

Mounting dimensions:: Stamford Type

Winding Pitch:: 2 / 3 pitch

Excitation:: Brushless, self-excited, synchro

Insulation Class:: H

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: WERNA

Model Number:: WR184ES

manufacturer:: Wuxi City ,Jiangsu Prov ,China making alternators

Output Type:: AC Three Phase & Single Phase diesel generator

Terminal:: 12 / 6 Wire

Rated Voltage:: 110V~690V

Frequency:: 50Hz or 60Hz

Speed:: 1500Rpm or 1800Rpm;3000Rpm or 3600Rpm

Mounting dimensions:: Stamford Type

Winding Pitch:: 2 / 3 pitch

Excitation:: Brushless, self-excited, synchro

Insulation Class:: H

dynamo generator used stirling engine 16kw/20kva

with rich experience in manufacturing alternator / ac generator.

Alternator Power Ranging 6.5 --1200KW

for prime or standby use, more than 50 different models, with 50Hz or 60Hz frequency, Single bearing or Double bearing, brushless, Self-excited. Abounds with almost every model in stock.

Frequency And Voltage

50Hz or 60Hz as per customer's request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.

dynamo generator used stirling engine 16kw/20kva

Insulation and Protection

Insulation: H, Protection: IP22

IP23 is for optional but the rated power will decrease 5%.

Voltage Regulators

The model we use including: MX321, MX341, AS440, SX440, SX460, etc.

Winding

All generator stators are wound to 2/3 pitch.

dynamo generator used stirling engine 16kw/20kva

Technical data

Werna Type	3Phase 50Hz 1500rpm		Shaft length	Copper total weight	Core length
	380V~415V		Shaft length	Copper total weight	Core length
	KVA	KW	mm	kgs	mm
WR164A	8.1	6.5	373.16	9.98	65
WR164B	11	8.8	373.16	11.18	80
WR164C	13.5	10.8	400.16	11.6	100
WR164D	1	12.8	400.16	11.88	115
WR184E	22.6	18	440.16	14.72	150
WR184F	27.5	22	530.16	16.2	190
WR184G	31.3	25	530.16	17.8	230
WR184H	37.5	30	673.3	19.21	255
WR184J	40	32	673.3	20.48	285

Werna Type	3Phase 60Hz 1800rpm		Shaft length	Copper total weight	Core length
	208V~480V		Shaft length	Copper total weight	Core length
	KVA	KW	mm	kgs	mm
WR164A	10.2	8.2	373.16	9.98	65
WR164B	13.8	11	373.16	11.18	80
WR164C	16.9	13.5	400.16	11.6	100
WR164D	20.2	16	400.16	11.88	115
WR184E	28.8	23	440.16	14.72	150
WR184F	34.4	27.5	530.16	16.2	190
WR184G	37.5	30	530.16	17.8	230
WR184H	46.9	37.5	673.3	19.21	255
WR184J	50	40	673.3	20.48	285
