Quick Details
-
Dimension(L*W*H):
-
2200*1100*1950 mm
-
Weight:
-
680 kg
-
Marketing Type:
-
New Product 2023
-
Applicable object:
-
cow, chicken, sheep, horse, , donkey, dog, quail, pig, pigeon, mule
-
Temperature control range:
-
300℃
-
Electricity consumption:
-
3°/h
-
Product specification:
-
0-10cm
-
Feed type:
-
Amino acids, fish meal. Fat, whey powder...
Quick Details
-
Max. Capacity:
-
500 kg/h
-
Place of Origin:
-
Hebei, China
-
Voltage:
-
380
-
Dimension(L*W*H):
-
2200*1100*1950 mm
-
Weight:
-
680 kg
-
Marketing Type:
-
New Product 2023
-
Applicable object:
-
cow, chicken, sheep, horse, , donkey, dog, quail, pig, pigeon, mule
-
Temperature control range:
-
300℃
-
Electricity consumption:
-
3°/h
-
Product specification:
-
0-10cm
-
Feed type:
-
Amino acids, fish meal. Fat, whey powder...
Customers need 220 volt, 380 volt machine price is different

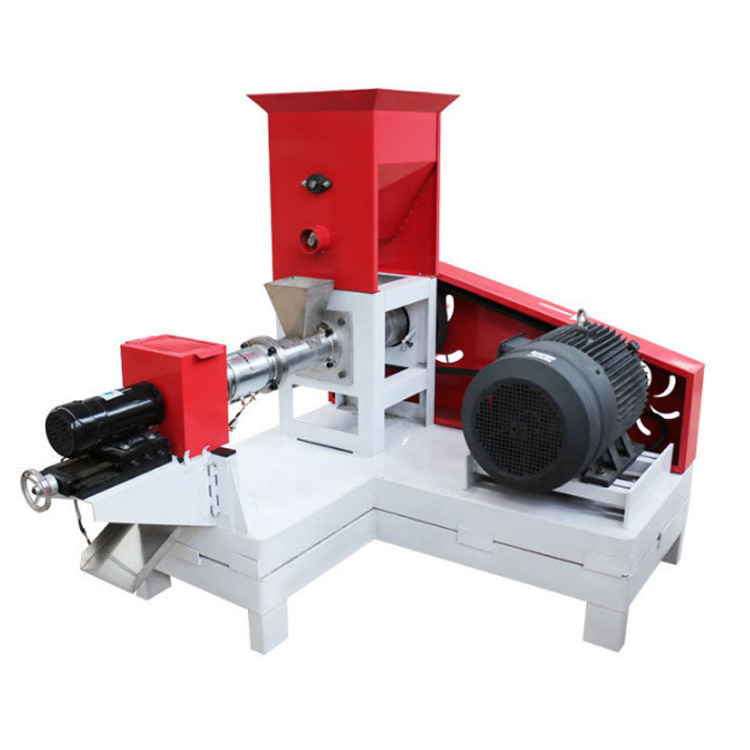

Supply of large, medium and small aquatic products, fish, frogs, pets, cats, dogs granule feed bulking machine
Product structure
Product parameter
| Product model | 45 | 65 | 75 | 85 | 95 |
| Motor | 7.5KW | 11KW | 15KW | 22KW | 30KW |
| Feed motor | 0.4KW | 0.4KW | 0.4KW | 0.4KW | 0.4KW |
| Hourly yield | 40-60KG | 120-150KG | 150-200KG | 300KG | 500KG |
| Weight | 380KG | 480KG | 580KG | 680KG | 780KG |
| Cutting power | 0.4KW | 0.4KW | 0.4KW | 0.4KW | 0.4KW |
| Overall dimension | 1.5*0.6*1.55M | 1.6*0.8*1.75M | 2.1*0.8*1.75M | 2.2*1.1*1.95M | 2.3*1.3*2.05M |
Mixing machine → Feed bulking machine → stainless steel dryer →Star anise seasoning machine
1. Put the matched raw materials and the matched water into the mixing machine and stir it evenly
The stirred raw materials are put into the hopper of the expanding machine, and the blanking device, temperature control and cutting knife are opened for expanding production. Put the container under the extruder outlet, use the container to contain semi-finished particles
4. Put the semi-finished particles in the container into the hot air dryer, turn on the dryer, and evenly bake
5. Put the dried semi-finished particles into the star anise seasoning machine and add the animal fat with a good ratio for tumbling seasoning 6. Seasoning finished pouring out the particles, that is, finished pet food
