Quick Details
-
Size:
-
1950*830*650mm
-
Material:
-
1.5mm steel
-
Warranty:
-
1 year
-
Type:
-
Car Washer
-
Voltage:
-
220V/50HZ,110V/60HZ
-
Color:
-
red,green
-
Power:
-
2500W
-
Vacuum Dust Cleaner:
-
Jieba BF-501
-
foam tank:
-
40L
-
water tank:
-
40L
-
function:
-
6 functions
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WinTai
-
Model Number:
-
CLASSICAL
-
Size:
-
1950*830*650mm
-
Material:
-
1.5mm steel
-
Warranty:
-
1 year
-
Type:
-
Car Washer
-
Voltage:
-
220V/50HZ,110V/60HZ
-
Color:
-
red,green
-
Power:
-
2500W
-
Vacuum Dust Cleaner:
-
Jieba BF-501
-
foam tank:
-
40L
-
water tank:
-
40L
-
function:
-
6 functions

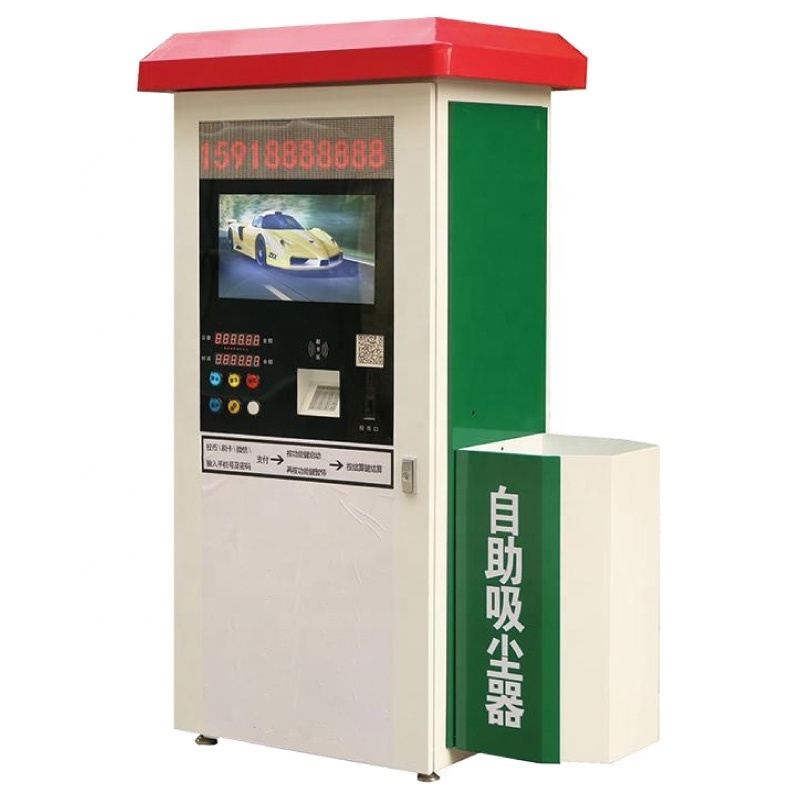

120 bar to 180 bar high pressure car wash mobile self-service car wash equipment
Machine size: 1950*830*650mm (small changes are allowed)
Net Weight: 180kgs
Water pressure: 1-10MPA
Max water pressure: 120bar
Motor: full copper motor
Max Power: 2500W
Min Power: less than 10W
Charging Method: IC card, coin or banknote
With wheels at the bottom
Machine body: 1.5mm steel,
Vacuum Dust Cleaner: Jieba BF-501 (Rated Power:1500W)
Motor power: 2.2kw, AC220V/50HZ or AC110V/60HZ, single-phase
Built-in tank: 40L water tank , 40L foam tank, 40L wax tank(optional),30L vacuum tank,
Working temperature: -10℃~60℃
Water temperature: normal temperature,
Water consumption: 20-30L/car,
1pc spray gun with 10m hose each for water and foam,1pc pipe for vacuum cleaning,1pc
atomization gun
for wax(optional)
Parameters:
|
Standard
Parameters |
Function | Cleaning pattern: water, foam, wax(optional), vacuum, anti-frozen system,hand washing,ozone disinfection(optional) |
Optional
parameters |
Foam gun/hose | |||
| Display | LED display/digital tube display | Single rotating arm | |||||
| Foam proportioning method | Patent automatic foam proportioning system | Double rotating arms | |||||
| Vacuum Tank | 30L vacuum tank | IC card | piece | ||||
| Button | plastic(with backlight) | IC card charger | piece | ||||
| Water/foam tank | 40L/40L( can be upgrade to 80L) | Ultra Concentrated Car Wash Serum | L | ||||
| Noise reduction device | yes | Pipe hanger(for 3 pipes) | |||||
| Backlight advertising light | yes | Other customized functions | |||||
| Spray Gun/Hose | single spray gun for water and foam/10m hose | Wax Spraying | |||||
Advantages on design and functions:
1. High pressure water flushing,foam spraying, wax spraying,vacuum cleaning,hand washing,ozone disinfection. You can choose all functions or some of them,
2.Special fluid proportioning design with patent, work stably and durable.
Detergent can be adjustedly automatically according to water flow.
Normal electric proportioning device easily has fault so that water and foam are
easily mixed together or too many of detergent is mixed.
3. Reasonable water supply and flow system so the water pressure is controlled
stably.
4. The mainboard with patent is researched by our team .
Welcome to us for more advantages .
