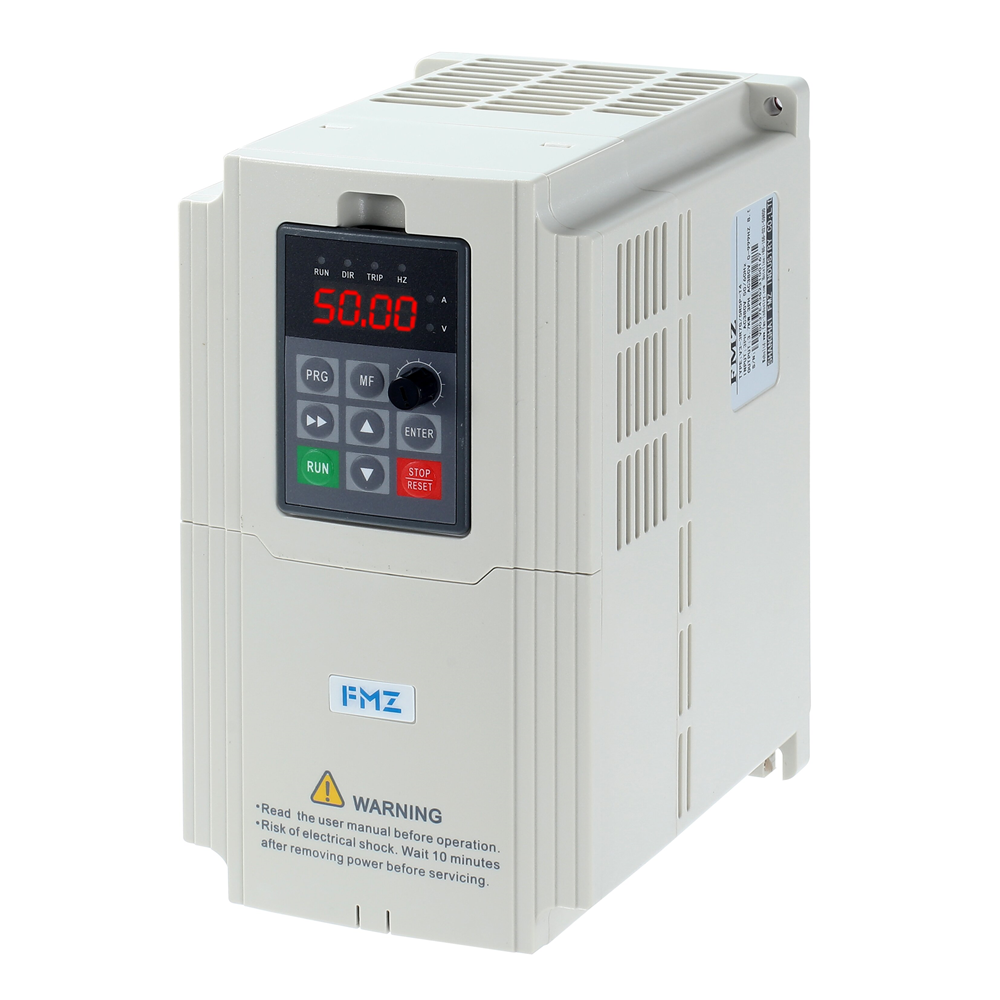

vfd drive 7.5kw Frequency control 380V 50hz 60hz ac motor speed control frequency converter inverter vfd drive for motor
vfd drive 7.5kw Frequency control 380V 50hz 60hz ac motor speed control frequency converter inverter vfd drive for motor
vfd drive 7.5kw Frequency control 380V 50hz 60hz ac motor speed control frequency converter inverter vfd drive for motor
vfd drive 7.5kw Frequency control 380V 50hz 60hz ac motor speed control frequency converter inverter vfd drive for motor
vfd drive 7.5kw Frequency control 380V 50hz 60hz ac motor speed control frequency converter inverter vfd drive for motor
vfd drive 7.5kw Frequency control 380V 50hz 60hz ac motor speed control frequency converter inverter vfd drive for motor
vfd drive 7.5kw Frequency control 380V 50hz 60hz ac motor speed control frequency converter inverter vfd drive for motor
vfd drive 7.5kw Frequency control 380V 50hz 60hz ac motor speed control frequency converter inverter vfd drive for motor

vfd drive 7.5kw Frequency control 380V 50hz 60hz ac motor speed control frequency converter inverter vfd drive for motor

FOB Reference Price: Get Latest Price
≥1 Pieces
US $99.5
≥20 Pieces
US $98.5
≥100 Pieces
US $96.5
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

power phase number:
Three Phase to Three phase
Place of Origin:
Shanghai, China
Brand Name:
FMZ
Model Number:
H380-7R5G/11RP-T4
Warranty:
18 months, 18Months
Type:
AC Drive
Size:
113*209*188mm
Product Name:
H380-7R5G/11RP-T4
Rated power:
7.5kW
Overload Capacity:
150%/1mins
Display:
LED
Frequency:
50/60Hz
Package Dimensions:
32*17*25cm
Package:
Carton
OEM:
Accepted
Ambient Temperature:
-10~+50C

Quick Details

Control Mode:
SVC, VF Control
Rated Power:
7.5kW
Nominal Voltage:
380V
power phase number:
Three Phase to Three phase
Place of Origin:
Shanghai, China
Brand Name:
FMZ
Model Number:
H380-7R5G/11RP-T4
Warranty:
18 months, 18Months
Type:
AC Drive
Size:
113*209*188mm
Product Name:
H380-7R5G/11RP-T4
Rated power:
7.5kW
Overload Capacity:
150%/1mins
Display:
LED
Frequency:
50/60Hz
Package Dimensions:
32*17*25cm
Package:
Carton
OEM:
Accepted
Ambient Temperature:
-10~+50C
Product Description

H380 Series Vector Control VFD Variable Frequency Drive
Solar Pump Inverter

● 110VAC 1PH To 3PH 0.4~1.5KW
● 220VAC 1PH To 3PH 0.4~2.2KW
● 220VAC 1PH To 1PH 0.4~2.2KW
● 220VAC 3PH To 3PH 0.4~2.2KW
● 380VAC 3PH To 3PH 0.75~7.5KW
● 220VAC 1PH To 380VAC 3PH 0.75~2.2KW
● DC TO AC Solar Pump Inverter

Voltage: -15% 220V+15% 1Phase
-15% 380V+15% 3Phase
Power Range:
● 110VAC 1PH To 3PH 0.4~1.5KW
● 220VAC 1PH To 3PH 0.4~2.2KW
● 220VAC 1PH To 1PH 0.4~2.2KW
● 220VAC 3PH To 3PH 0.4~2.2KW
● 380VAC 3PH To 3PH 0.75~7.5KW
● 220VAC 1PH To 380VAC 3PH 0.75~2.2KW
● DC TO AC Solar Pump Inverter
Typical Technical Characteristics:
1)Reliable IPM Module Design
2)Simple PLC operation
3)Carrier frequency: 2.0kHz~8.0kHz
4)Frequency Output: 0~999Hz
5)Acceleration/Deceleration time: 0~255s
6)PID function is available

FLAME RETARDANT

● Industrial Grade ABS Plastic,
● Shock Resistant,
● Safe and Secure
● High Temperature Resistant,

QUALITY ELEMENT

● Industrial Grade PCB Board ● Conductive Strong ● High Welding Reliability

GOOD HEAT DISSIPATION

● Double Roller Ball Bearing ● L ong Service Life ● Large air volume
Control Mode
Local control--interfaces through the operation panel(keypad)
Remote control--interfaces through external terminals control.
Note:Ensure that the drive is in local control before starting or stopping the inverter using the control panel.
● Maximum power ponit tracking(MPPT) with fast response speed and stable operation.
● Dry run(under load) protection
● Motor maximum current protection
● Input power protection
● Low stop frequency protection
● The PQ(power/flow) performance curve enables calculating the flow output from the pump
● Digital control for fully automatic operation,data storage and protective functions
● Intelligent power module(IPM) for the main circuit
● LED display operating panel and support input is available
● Low water probe sensor,and water level control funtion
● Ambient temperature for using:-10 to +50℃
Details Images



Product Features
Model No
Motor Power(kW)
Rated Current(A)
Outline Dimensions
（H*W*D）（mm)
Package Dimensions
（H*W*D）（mm)
110V 1-phase input & 3-phase output （Voltage Range: -15% 110V~110+15%）
H380-0R4G-S1-110
0.4
2.5
85*143*116
230*160*170
H380-0R75G-S1-110
0.75
5
85*143*116
230*160*170
H380-1R5G-S1-110
1.5
7
85*143*116
230*160*170
220V 1-phase input & 1-phase output （Voltage Range: -15% 220V~220+15%）
H380-0R4G-S1-220
0.4
2.5
85*143*116
230*160*170
H380-0R75G-S1-220
0.75
5
85*143*116
230*160*170
H380-1R5G-S1-220
1.5
7
85*143*116
230*160*170
H380-2R2G-S1-220
2.2
10
100*151*120
230*160*170
220V 3-phase input & 3-phase output （Voltage Range: -15% 220V~220+15%）
H380-0R4G-T2
0.4
2.5
100*151*120
230*160*170
H380-0R75G-T2
0.75
5
100*151*120
230*160*170
H380-1R5G-T2
1.5
7
100*151*120
230*160*170
H380-2R2G-T2
2.2
10
100*151*120
230*160*170
220V 1-phase input & 3-phase output （Voltage Range: -15% 220V~220+15%）
H380-0R4G-S2
0.4
2.5
85*143*116
230*160*170
H380-0R75G-S2
0.75
5
85*143*116
230*160*170
H380-1R5G-S2
1.5
7
85*143*116
230*160*170
H380-2R2G-S2
2.2
10
100*151*120
230*160*170
380V 3-phase input & 3-phase output （Voltage Range: -15% 380V~380+15%）
H380-0R7G/1R5P-T4
0.75
3
100*151*120
230*160*170
H380-1R5G/2R2P-T4
1.5
4
100*151*120
230*160*170
H380-2R2G/3R0P-T4
2.2
5
100*151*120
230*160*170
H380-4R0G/5R5P-T4
4.0
8.5
113*209*118
320*170*245
H380-5R5G/7R5P-T4
5.5
13
113*209*118
320*170*245
H380-7R5G/11RP-T4
7.5
18
113*209*118
320*170*245
220V 1-phase input & 380V 3-phase output （Voltage Range: -15% 220V~220+15%, -15% 380V~380+15%）
H380-0R75G-S4
0.75
5
100*151*120
230*160*170
H380-1R5G-S4
1.5
7
100*151*120
230*160*170
H380-2R2G-S4
2.2
10
100*151*120
230*160*170
Product Name
H380 Series AC Drive/Frequency Converter/VFD
Model Number
H380-7R5G/11RP-T4
Control Mode
SVC, V/F Control
Torque Rise
Auto Torque Rise, Manual Torque Rise 0~30%V/F Mode
Rated Power
7.5kW
Input Voltage
3PH 380V 50/60Hz
Output Voltage
3PH 380V
Operating Temperature
-10-50℃
IP Protection
IP20
Application
Fan, Pump, Conveyor, Packing Machinery, Textile machinery...
Product Paramenters
Input/Output Voltage
Power
(KW)
Output current
(A)
W
(mm)
H
(mm)
D
(mm)
D1
(mm)
Mounting aperture
(mm)


80~400VDC
/0~250V AC
0.4
2.5


85


143


116


126







4.5
0.75
5
1.5
7
2.2
10


100


151


120


130



120~800VDC/0~450VAC
0.75
3
1.5
4
2.2
5
3.7
8.5


125


220


166


176
5.5
13
7.5
17
Application
Product packaging

Carton packing 1


Carton packing 2

Carton packing 3
