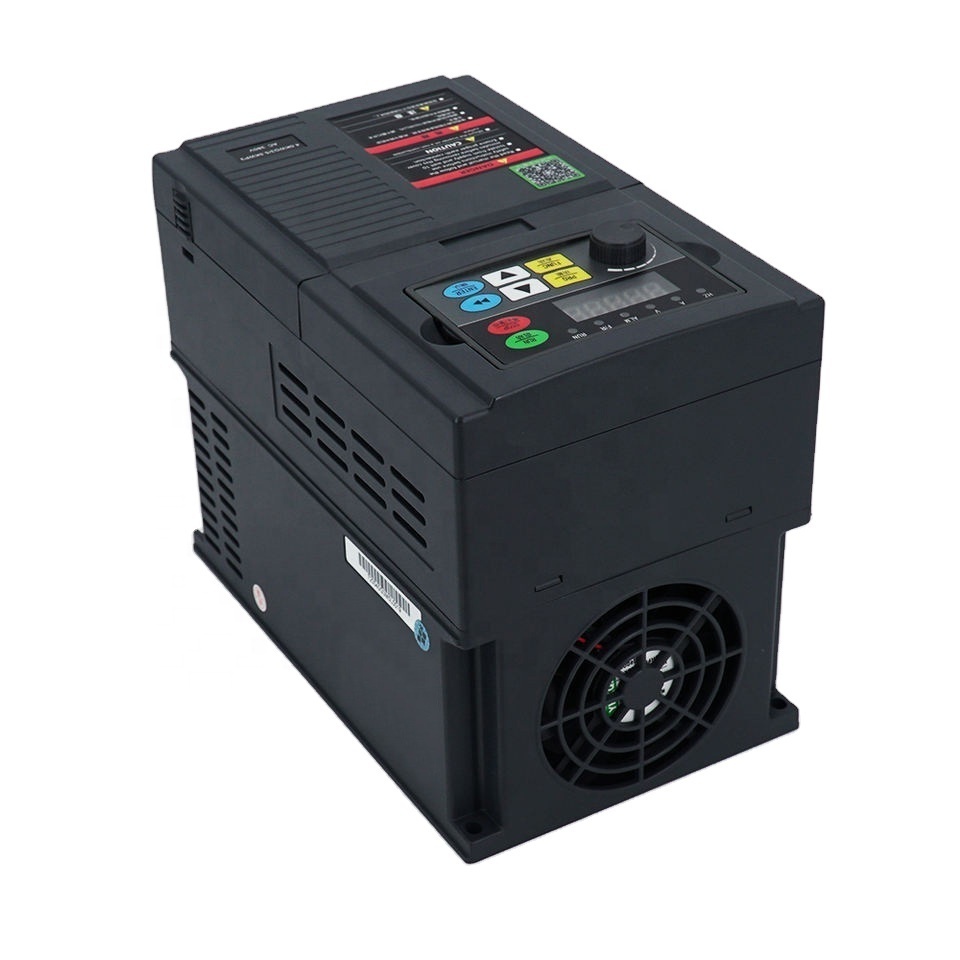

Quick Details
-
Model Number:
-
FL720 - 4S -11.00KW
-
Output Frequency:
-
50HZ/60HZ
-
Size:
-
249*143*177MM
-
Weight:
-
4.0KG
-
OEM & ODM:
-
Avaiable
-
Power Adapter:
-
7.50KW
-
Application:
-
Water pump/fan/packing/textile and industry
-
Control type:
-
V/F Vector control
-
Protection:
-
Overvoltage/Current/ Lost Phase and more
-
Communication:
-
RS485 Modbus
-
Display:
-
LED Screen
-
Warranty:
-
18 months
-
Gross Weight:
-
4.0 KG
-
Packing Size:
-
320*220*270MM
-
Certificate:
-
CCC,CE, ISO9001
Quick Details
-
Output Current:
-
25A
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Spread
-
Model Number:
-
FL720 - 4S -11.00KW
-
Output Frequency:
-
50HZ/60HZ
-
Size:
-
249*143*177MM
-
Weight:
-
4.0KG
-
OEM & ODM:
-
Avaiable
-
Power Adapter:
-
7.50KW
-
Application:
-
Water pump/fan/packing/textile and industry
-
Control type:
-
V/F Vector control
-
Protection:
-
Overvoltage/Current/ Lost Phase and more
-
Communication:
-
RS485 Modbus
-
Display:
-
LED Screen
-
Warranty:
-
18 months
-
Gross Weight:
-
4.0 KG
-
Packing Size:
-
320*220*270MM
-
Certificate:
-
CCC,CE, ISO9001
1.Performance is Remarkable
The current vector control algorithm has strong load capacity, fast response speed and wide speed range
2.Wide Voltage Input
When the voltage and frequency of the grid fluctuate, the output is automatically adjusted, and the impact on the motor and production machinery is small;
3.Widely used
Covering a variety of typical load application functions to meet the needs of various applications;
4.Built-in brake unit
Compact construction with built-in brake unit (standard 18.5kW and below)
5.RS485 communication
Standard RS485 serial communication interface, standard MODBUS communication protocol;
6.Complete protection performance
Over current, over voltage, input phase missing, output phase missing, output imbalance detection and other protection functions
7.High safety
Mature and reliable structure design, high flame retardant material, to ensure the safety of the product
Product Specification:
FL720 CONVERTER DIMENSIONS
| Model | A(mm) | B(mm) | H(mm) | W(mm) | D(mm) |
Installing Holes (mm) |
| Installation Dimensions | Peripheral Size | |||||
| 0.75-2.2kw | 99 | 155 | 165 | 109 | 146 | 4.5 |
| 4.0-5.5kw |
119 |
201 | 215 | 134 | 174 | 5.5 |
| 7.5-11kw | 130 | 237 | 249 | 143 | 177 | 5.5 |
| 15-22kw | 188 | 305 | 322 | 209 | 187 | 6.5 |
| 30-37kw | 264 | 384 | 399 | 284 | 200 | 6.5 |
| 45-55kw | 235 | 485 | 510 | 320 | 218 | 8.5 |
| 75-110kw | 240 | 635.5 | 655 | 377 | 267 | 8.5 |
| 132-180kw | 320 | 730 | 750 | 495 | 325 | 13 |
| 200-280kw | 460 | 980 | 1005 | 632 | 440 | 13/16 |
| 315-500kw | 600 | 1210 | 1250 | 800 | 450 | 13/16 |
