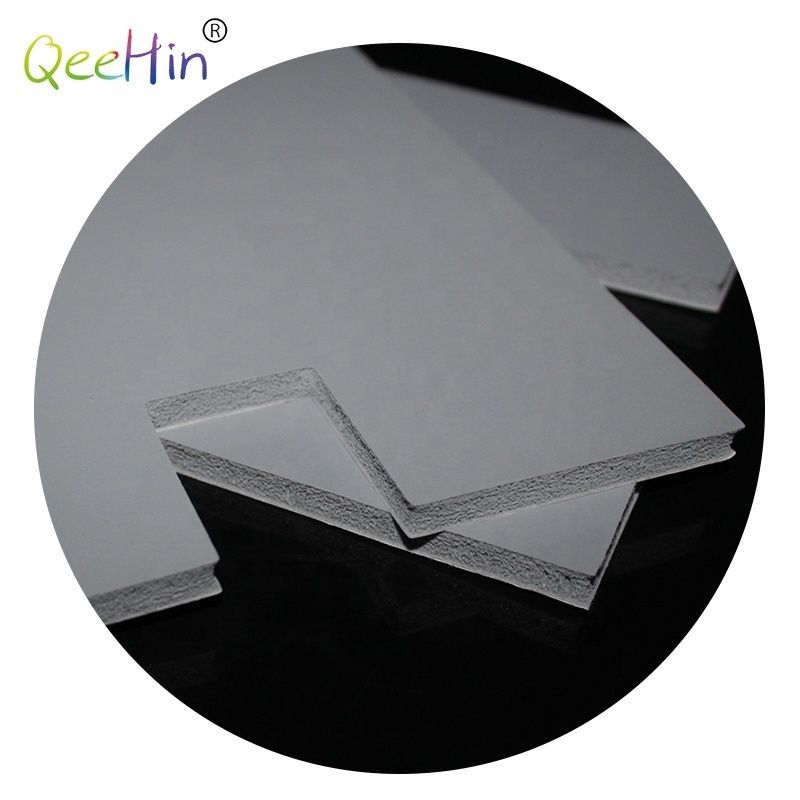

Liquid grey silicone foam rubber pads 7.5mm thickness high resilience low hardness soft self adhesive silicone foam sheet

Liquid grey silicone foam rubber pads 7.5mm thickness high resilience low hardness soft self adhesive silicone foam sheet

FOB Reference Price: Get Latest Price

≥20 Meters

US $18.8

≥100 Meters

US $14.5

≥500 Meters

US $12.98

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: QX-L032501

Product name:: Polished surface liquid silicone foam sheet

Material:: Liquid silicone foam

Color:: Gray

Width:: 600mm

Application:: Battery heat insulation

Temperature:: -50℃~+260℃

Character:: Flame retardant V0,low hardness

Dielectric constant:: 1.42

Volume resistivity/Ohm-mm:: 1013

Density:: 250(±30) kg/m³

Quick Details

Processing Service:: Rolling, Punching

Place of Origin:: Guangdong, China

Brand Name:: Qeehin

Model Number:: QX-L032501

Product name:: Polished surface liquid silicone foam sheet

Material:: Liquid silicone foam

Color:: Gray

Width:: 600mm

Application:: Battery heat insulation

Temperature:: -50℃~+260℃

Character:: Flame retardant V0,low hardness

Dielectric constant:: 1.42

Volume resistivity/Ohm-mm:: 1013

Density:: 250(±30) kg/m³

Liquid grey silicone foam rubber pads 7.5mm thickness high resilience low hardness soft self adhesive silicone foam sheet

Product Description

1.The size/hardness/color can be custom-made.
2.Such silicone foam material meets the inflaming retardant rate,such as V0.
3.Surface of silicone foam products is smooth one.

4.Provide samples,if be our stock size sample,be free;if be new one,sample cost depend on the product.
5.Our factory also can allocate the silicone raw material according to your application requirements or performance requirements.
6.The performance,such as elongation,tear and tensile strength,compression set,all can be customized.

Details Images

Performance of liquid silicone foam sheet.

Good impact resistance,high pressure resistance, shakeproof, buffering .

Excellent heat resistance, heat dissipation, ozone resistance, inflaming retarding, anti-aging .

Waterproof,dust-proof and insulation.

Non-toxic and tasteless,colorless.
Temperature ranges from -50℃ to 230℃.

Suitable for all kinds of environment.

Rolling forming production mode.

Flame retardant V0,low density,smooth surface.

Uniform thickness and foaming holes.
The hardness ranges from 5A to 30A.
Up to national tolerance standard.

Available for extrusion a variety of sealing strip, strip with strict requirements.

Material Parameter

Temperature range	-50℃~+280℃
Plasticity	170-400
Density g/㎤	1.07-1.22
Hardness(shore A)	3-30A
Stretching rate	≥0.00
Tensile strength(Mpa)	≥60
Elongation at break(%)	≥(150-700)
Tear strength(KN/M)	≥20.0
Tear permanent deformation(%)	≤5
The modulus of coefficient(100% elogation), MPa	1.19
_Features	Anti-vibration, cushioning, sealing, pressure relief, high temperature resistance, flame retardant,tear resistant
OEM/ODM Custom	Acceptance
