- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Living Room
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong China
-
Brand Name:
-
Zhongcan
-
Model Number:
-
Zhongcan
-
Table Size:
-
470-560(width) *410*455mm
-
Weight:
-
400 kg
-
Loading capacity:
-
120-160kg
-
Seat Color:
-
red, blue, grey
-
Rail material:
-
steel pipe or aluminium alloy
-
Lifting speed:
-
7.2m/min
-
Electricity consumption:
-
approx. 2-5 kWh/month
-
Drive:
-
350W DC motor
-
Battery:
-
2 x 12V 9Ah lead-acid batteries
-
Lift Drive / Actuation:
-
Lift Drive / Actuation
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Installation, Return and Replacement, Other
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others
-
Application:
-
Living Room
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong China
-
Brand Name:
-
Zhongcan
-
Model Number:
-
Zhongcan
-
Table Size:
-
470-560(width) *410*455mm
-
Weight:
-
400 kg
-
Loading capacity:
-
120-160kg
-
Seat Color:
-
red, blue, grey
-
Rail material:
-
steel pipe or aluminium alloy
-
Lifting speed:
-
7.2m/min
-
Electricity consumption:
-
approx. 2-5 kWh/month
-
Drive:
-
350W DC motor
-
Battery:
-
2 x 12V 9Ah lead-acid batteries
-
Lift Drive / Actuation:
-
Lift Drive / Actuation
|

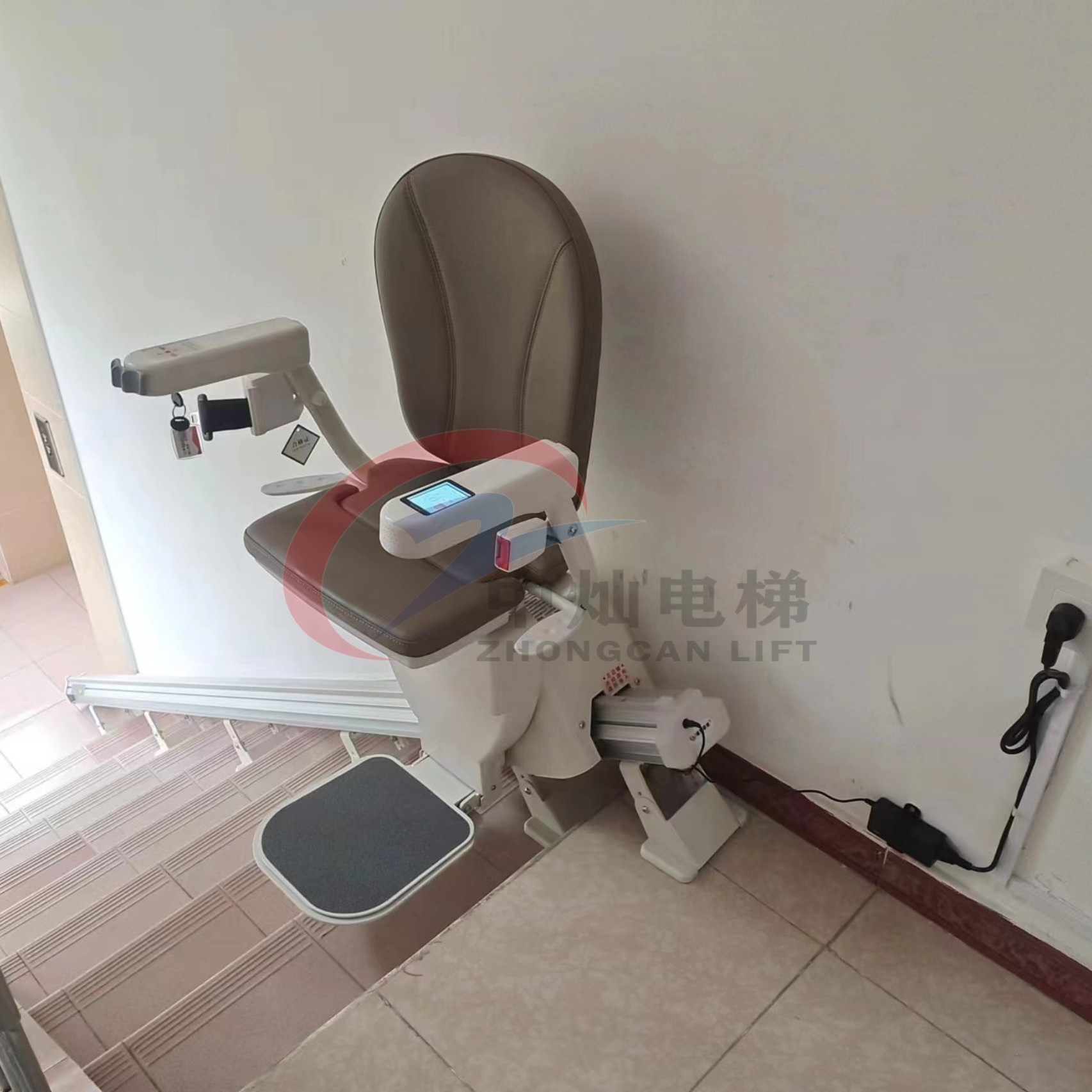

Product name
|
Zhongcan Stair lift
|
|
Speed
|
0.12 m/s
|
|
Driver
|
DC brush motor + self-locking gearbox
|
|
Drive motor power
|
350W
|
|
Operating voltage/current.
|
24V/ 0-18 A
|
|
Rail angle
|
25°-55°
|
|
Charging voltage / current
|
100-240V/ 1.2 A
|
|
Charging method
|
automatic charging at both ends of the rails
|
|
LED display on handrails
|
Display of operating status and fault codes
|
Comfortable and convenient
Every ride will be convenient, smooth and comfortable.
Folding seat and foot pedal can be folded, do not affect the use of stairs space.
Obstacle sensing stop device
Safety induction system. If obstacles are sensed during driving, the seat elevator will stop moving immediately to protect the
user's safety.
user's safety.
Customized track
According to the length of the stairs, make a suitable seat elevator for you.
Swivel seat, facing platform up and down, safe and convenient
When folded, it occupies only 39cm and does not interfere with building access.
Automatic speed change when running into corners, smooth and dizzy-free.
Automatic charging at both ends of the rails.
Choose from lead-acid or lithium batteries.
Manual/electric foot pedals are available.
Zhongcan Machinery Co., Ltd.
is a modern technology-based manufacturing enterprise specializing in the design, research and development, production, sales and after-sales service of lifting equipment. With more than 11 years of experience in the field of machinery and the strict implementation of CE and ISO 9001:2008 standards,the company adopts the international advanced level of automated production equipment,product quality and production capacity has been tested in a number of national project.
There are six series of more than fifty varieties in Zhongcan Machinery. The main products are wheelchair lifts, home lifts, self-propelled lifts, mobile lifts, fixed docking lamps, mobile docking lamps,fixed scissor lifts, rail hydraulic lift platforms,aluminum alloy lifts, car lifts, crank arm lifts, etc.
OUR PURPOSE is To help customers with best proper solutions of safe and durable lifting platforms together with outstanding service and support.
There are six series of more than fifty varieties in Zhongcan Machinery. The main products are wheelchair lifts, home lifts, self-propelled lifts, mobile lifts, fixed docking lamps, mobile docking lamps,fixed scissor lifts, rail hydraulic lift platforms,aluminum alloy lifts, car lifts, crank arm lifts, etc.
OUR PURPOSE is To help customers with best proper solutions of safe and durable lifting platforms together with outstanding service and support.
Advanced Production Line
Product Safety Test
On-line Installation Guide
Perfect After-sale Service
Professional Team
Careful Packing And Fast Shipping
Q: how long is your delivery date?
*The general specification of the product is about 14 days after receiving the advance payment.
*The general specification of the product is about 14 days after receiving the advance payment.
*Special requirements take about 25-30 days.
Q: Transportation security and payment security.
We choose a safe and reliable shipping company for our customers,with short shipping period and safe transportation.
Under the supervision of Alibaba, our account ensures timely delivery and good quality.
Q: which countries and regions have you exported?
We have exported to the United States, Canada, Brazil, Chile, Colombia and other United States countries. Britain, Russia and other European countries. Ukraine, Thailand, Myanmar, Vietnam, India and other Asian countries. South Africa, Cameroon, Ghana, Somalia and other African countries.
Our export experience, familiar with different market needs, can help customers avoid a lot of trouble.
