Quick Details
-
Model Number:
-
1.5kw
-
Warranty:
-
3 years
-
Certification:
-
ce/iec
-
Output Voltage:
-
24v-300v
-
rotor diameter:
-
2.5m/2.8m
-
Rated wind speed:
-
10m/s
-
Start up wind speed:
-
2m/s
-
Survival wind speed:
-
40m/s
-
Blades rotor diameter:
-
2.8m
-
Rated rotation speed:
-
350rpm
-
Rated working voltage:
-
24v 48v 96v 120v 240v 300v 360v
-
Working system:
-
grid tie, grid off, solar wind hybrid system
-
Wind turbine type:
-
horizontal axis, directly drive, 3 phase Ac
-
Tower height:
-
6m-15m
-
Blades:
-
3 pcs FRB with protection film
Quick Details
-
Rated Power:
-
1.5kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HLD
-
Model Number:
-
1.5kw
-
Warranty:
-
3 years
-
Certification:
-
ce/iec
-
Output Voltage:
-
24v-300v
-
rotor diameter:
-
2.5m/2.8m
-
Rated wind speed:
-
10m/s
-
Start up wind speed:
-
2m/s
-
Survival wind speed:
-
40m/s
-
Blades rotor diameter:
-
2.8m
-
Rated rotation speed:
-
350rpm
-
Rated working voltage:
-
24v 48v 96v 120v 240v 300v 360v
-
Working system:
-
grid tie, grid off, solar wind hybrid system
-
Wind turbine type:
-
horizontal axis, directly drive, 3 phase Ac
-
Tower height:
-
6m-15m
-
Blades:
-
3 pcs FRB with protection film
HOT SALES! Home 1.5kw small wind turbine, mini wind power generator 1500w, windmill generator 1.5k
- Wind turbine type: Fixed blades pitch, horizontal type, directly drive, C.W rotation wind power generator
on grid system
off grid system

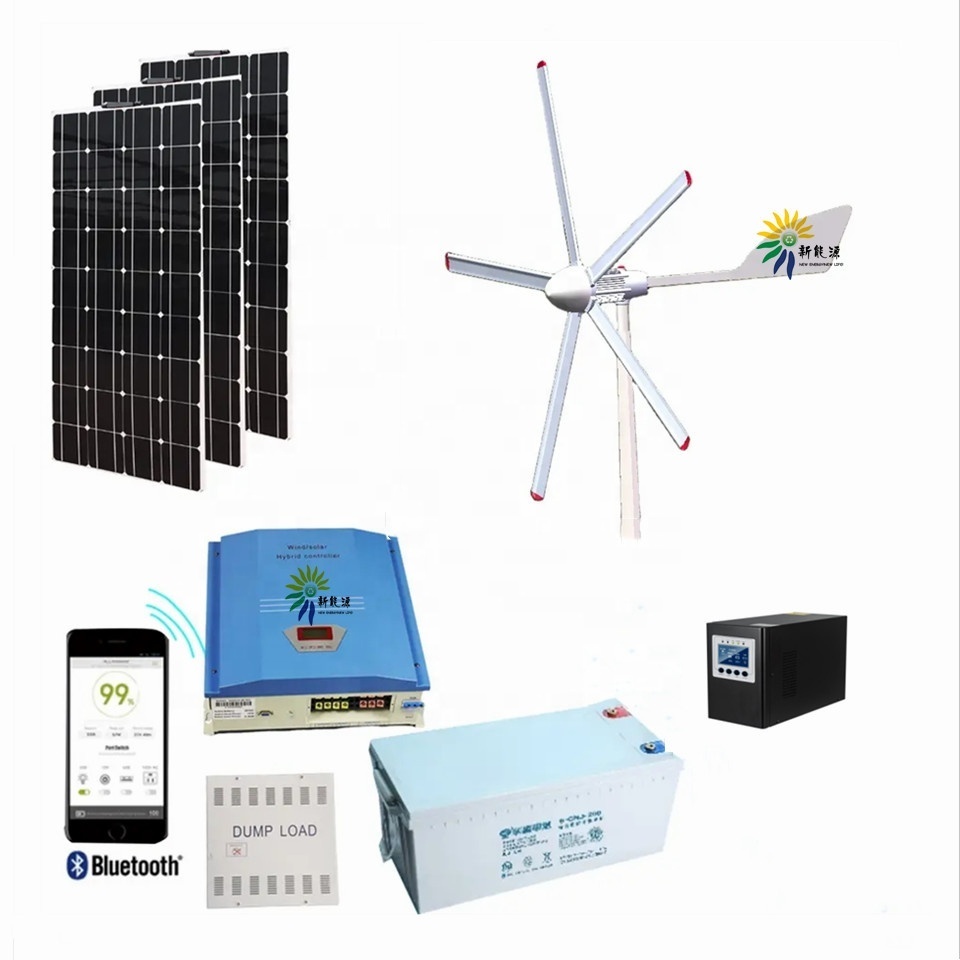

wind solar hybrid on/off grid system (grid power/diesel power as backup power)
Used for the home, farm, signal station,garden, island, rooftop...
3. Wind turbine technical data
FD3.2-1.5kw wind turbine normal data:
Model: FD3.2-1500W
Rotor Diameter: 3.2m
Number of Blades: 3pcs
Material of Blades: FRB
Cut-in wind speed: 2m/s
Working wind speed: 3-25m/s
Survival wind speed: 40m/s
Rated wind speed: 9m/s
Rated rotate speed: 350r/min
Rated output power: 1500w
Max output power: 2000w
Type of tower: Guy wire tower, tilting up tower (optional)
Type of generator: Permanent-magnet 3 Phase AC
Speed regulation method: Yaw auto brake
Working voltage: 12v 24V/DC48v/DC120V/240V/360V or special request
Operating Temperature: -40---+60
Tower height: 6m,8m,9m,12m or special request
Wind turbine main body weight: 90kg
Life span: WTG 20 years;
Warranty: 3years.
__________________________________________
Note:
1. Tower type, tower height can be special requested;
2. working voltage can be special requested;
3.Ce,ccc,iso,IEC approved;
4. We have blades rotor diameter 2.8m, 3.2m for different wind place.
4. 1.5kw wind turbine Output power curve
5. Wind turbine freatures/advantage
| 1.) Blade: Manufacturing according to the airscrew structure principle and techniques. |
| Optimal wide TSR & High L/D ratio. With protection film on the edge, long work life. |
| Select blade type by wind tunnel testing. |
| With high efficiency, low noise. |
|
2. ) Blades rotor: Hub adopts casting molding; Blades rotor and generator adopt universal connection, directly driven. |
| Connection is reliable, durable, smooth operation without vibration. |
| 3.) Generator |
|
Rotor: Nd-Fe-B permanent magnet. Prefabricated tangential magnetic circuit rotor; High magnetic flux density, small |
| cubage, good manufacturing process and high performance. |
| Adopt SKF, NSK bearing. |
| Close transmission slip ring, the cable will not enlace. |
| 4.) Speed regulation: yaw. Simple, reliable and safety. |
|
5.) Anti-corrosion treatment: All the outside parts are designed to anti-salt, anti-fog, anti-atmospheric |
| anti-sandstorm corrosion design. |
|
6.) Tower: guy wire tower, tilting up tower, standalone tower, hydraulic tower… It can be designed according to your request. |
| 7.) 300w-2.5kw auto braking; 3kw-30kw auto braking system and manual braking system. |
| 8. ) Wind turbine design principle is simple, safety, reliable, maintenance free. |
| 9.) Provide low wind place, rich wind place solution. Wind turbine OEM service, customized service. |
6. Main market: US, Canada, Australia, New Zealand, European...
7. Testing Machinery:
Generator platform test
Blade balance adjustment instrument
Blade weight center test platform
Turbine turn-to-turn test system
8. Application
Home, farm, signal station, island, garden...
9.Blades,pma
Vacuum mould blades with protection film
C.W blades, low noise level, high efficiency
FRB material, 3 pcs blades per set
Adjust blades rotor balance before delivery
Rare earth material, high efficiency, low start up torque 2.67N.m
Aluminum generator housing and nacelle
11. Tower type: guy wire tower, stand lone tower, tilting up tower, hydraulic tower (optional)
Tower height can be manufacture according to user's request.
The tower with hot-galvanize.
We provided the tower foundation drawing after confirm the tower type, tower height.
12. Matched controller
Controller converts 3 phase AC power to Dc and charge to the battery group or feed to the grid tie inverter.
Controller with auto brake function, PWM voltage stablization function.
Matched with off grid single phrase/ 3 phrase pure sine wave inverter.
On grid system grid tie inverter ABB power one inverter, our provided grid tie inverter.
|
Power of the equipped wind turbine (W) |
1.5K |
|
Operating mode |
Continuous |
|
Function |
Commutation, control |
|
Operating environment |
Temperature -30~60℃, humidity≤80% |
|
PWM unloading voltage (DCV) |
≥220V |
|
brake voltage (DCV) |
260±5V |
|
brake delay time (min) |
10-20 minutes |
|
Low voltage indicator (V) |
≤130V |
|
Self-provided connecting wire of the brake (mm²) |
>2.5mm² |
|
Self-provided connecting wire of the PWM dump load(mm²) |
>2.5mm² |
|
PWM unloading fuse (A) |
10A |
|
DC output fuse (A) |
10A |
14. Matched grid tie inverter 2k, pure sine wave inverter single phase 2kva/3kva
Inverter output voltage, frequency can be manufactured according to different countries request.
Off grid controller with dump load, tilting up tower, BEL storage battery, inverter
On grid controller with dump load +grid tie inverter
1. 48v off grid system wind turbine main body + controller with dump load: 0.32cbm, 90 kgs. 1 plywood case
2. 380v on grid system wind turbine main body + controller with dump load:0.39cbm, 105kgs.
Delivery by sea. FOB/C&F, CIF
Delivery by air or express.
Packing details:
| Item# | Product description | Spec | Unit | Q'ty | Remark |
| 1 | main body | FD3.2-1.5kw 56v | set | 1 | |
| hex nut | M20*1.5 | pcs | 1 | 8.8 grade | |
| flat washer | φ20 | pcs | 1 | ||
| hexagon bolt | M10*25 | pcs | 4 | ||
| hexagon bolt | M10*80 | pcs | 4 | ||
| hex nut | M10 | pcs | 4 | ||
| flat washer | φ10 | pcs | 8 | ||
| 2 | Blades | FD3.2 L=1.56m | pcs | 6 | |
| 3 | hub | FD3.2 | set | 2 | |
| hexagon bolt | M12*80 | pcs | 18 | 8.8 grade | |
| hex nut | M12 | pcs | 18 | ||
| flat washer | φ12 | pcs | 18 | ||
| elastic pin | φ5*25 | pcs | 6 | ||
| hexagon bolt | M6*20 | pcs | 6 | 8.8 grade | |
| flat washer | φ6 | pcs | 6 | ||
| 4 | nose cone | FD3.2 | pcs | 1 | |
| 5 | tail vane | 1.5kw | set | 1 | |
| 6 | tail rod | 1.5kw | pcs | 1 | |
| hexagon bolt | M10*70 | pcs | 2 | 8.8 grade | |
| self lock nut | M10 | pcs | 2 | ||
| flat washer | φ10 | pcs | 2 |
Provide professional technical support;
Provide system design;
Wind turbine type, model, capacity selection professional support;
Tower design, foundation design support;
Completely system provider and designer;
Support paypal payment, TT payment;
