100v-277v PIR Sensor Switch, Ceiling Mounted Occupancy Sensor with Relay factory price

100v-277v PIR Sensor Switch, Ceiling Mounted Occupancy Sensor with Relay factory price

FOB Reference Price: Get Latest Price

≥1 Pieces

US $39

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Output:: Wireless

Brand:: Daylight PIR Occupancy Motion Sensor

Operating Temperature:: -20 - 50 degree

Mounting Type:: on Ceiling or wall

Voltage Rating:: 100-277V

Sensing Distance:: 30meter

Key Word:: 100v-277v PIR Sensor Switch, Ceiling Mounted Occupancy Sensor

Wireless Technology:: ZigBee 2.4GHz

Transmitting power:: ≤0.2mW

Detection range:: max (diameter x height) 30m x 15m

Input power:: AC100-277V

Size:: Standard Size

Application:: Industrial Automation

Quick Details

Model Number:: AHOS934-Z

Place of Origin:: Guangdong, China

Brand Name:: PIR Sensor Switch, Occupancy Sensor

Output:: Wireless

Brand:: Daylight PIR Occupancy Motion Sensor

Operating Temperature:: -20 - 50 degree

Mounting Type:: on Ceiling or wall

Voltage Rating:: 100-277V

Sensing Distance:: 30meter

Key Word:: 100v-277v PIR Sensor Switch, Ceiling Mounted Occupancy Sensor

Wireless Technology:: ZigBee 2.4GHz

Transmitting power:: ≤0.2mW

Detection range:: max (diameter x height) 30m x 15m

Input power:: AC100-277V

Size:: Standard Size

Application:: Industrial Automation

100v-277v PIR Sensor Switch, Ceiling Mounted Occupancy Sensor with Relay factory price

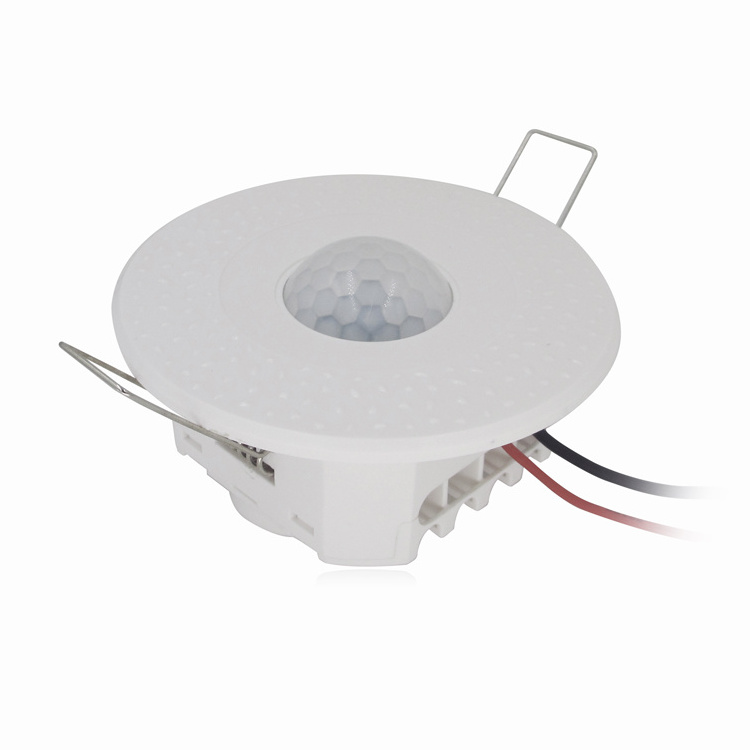

Multi-functional Zigbee 3.0 standalone AC sensor AHOS934.

2 models available, occupancy+daylight+temperature humidity sensor, and PIR+daylight+temperature humidity sensor.

Advantages:

1. Real Occupancy sensor. 110°/75° detecting range, 4m installation height on ceiling .

A real occupancy sensor is to detect the presence of people, even there's no movement at all.

Eg.: When somebody is sitting in a chair, listening to music or attending a conference call, with very little/no movement, the lights above keep on 100% because the occupancy sensor tells the lights not to dim down. It's used for sitting areas, mostly commercial, such as office, hospital, library, bank, etc..

2. When used as a PIR sensor , it supports max 10m installation height, 90° detecting range. It means, besides commercial projects, it is also applicable to industrial cases, wall or ceiling mounting.

3. Two Daylight Sensor Modes .

a. Daylight constant illuminance mode: daylight harvesting for lamps in an area with equivalent ambient light, lamps on/off/dim automatically to keep at a target lux. Detect range: 0-65528lux

b. Daylight threshold mode: To on/off the lamps according to a preset threshold value (range from 10-8000 LUX).

4. Temperature humidity Sensor integrated.

5. Power metering, for lamps in the same circuit ahead of the sensor.

FAQ

1. WHY ZigBee control ?

Compare to WiFi control, more secure & larger node network. Compare to DALI, wireless and Over The Air update.

2. Which standard?

Led drivers& controllers : ZigBee 3.0 standard (compatible Alexa/homekit for smart home),

iLightsIn Pro system : private secure protocol , support customize.

3. Control distance?

30meter/100meter, between 2 lamps or 2 Zigbee devices (Sensor, switch, controller, driver or bridge).

4.Support commercial&industrial lighting project?

Yes, iLightsIn Pro system offer Lighting solution for commercial&industrial field.

5. Android, ios App available?

Yes, free Android, ios App - iLightsIn Pro. Support local control&remote control in phone or Pad.

6. PC server local control &remote control?

Yes, support PC server APP local control without internet access, cloud server remote control with internet access.

Part no. AHOS934-Z-XX-IA-R-OTA-3.0
AHOS934	project name/ index
Z	ZigBee
XX	Sensor option	OS	Occupancy sensor
XX	Sensor option	PIR	PIR motion sensor
IA	internal antenna
R	Relay
OTA	over the air upgrade
3.0	ZigBee 3.0

Parameter
Model	AHOS934-Z-OS-IA-R-OTA-3.0	AHOS934-Z-PIR-IA-R-OTA-3.0
Max installation Height	4m	10m
Detect Range	110°/75°	90°
Operating Temperature	-20 ℃ to 30 ℃	-20 ℃ to 50 ℃
Installation	Ceiling	Ceiling/Wall
Input Voltage	100-277V ac 50/60Hz
Control Range	30m
Hole size (Ceiling mount)	105mm
N.W.	163g
G.W.	183g
Size	113.7mm(D)x50.2mm(H)
Package Size	12126.5mm
Package	1PCS/ Package
Housing Material	PC
