Quick Details
-
Model Number:
-
HT-8GF--HT1000GF
-
Rated Voltage:
-
400/230V
-
Rated Current:
-
14.4A-1800A
-
Speed:
-
1500/1800 rpm
-
Frequency:
-
50/60Hz
-
start method:
-
electric start
-
cooling method:
-
water cooled
-
gas mixer formation:
-
Pre-Mix
-
module:
-
GU641B
-
regulator:
-
AVR
-
noise level:
-
65dBA
-
protechtion class:
-
IP23
-
Insulation class:
-
H
-
Certificate:
-
ISO,CE
Quick Details
-
Warranty:
-
1year, 12 months
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HIGH TECH
-
Model Number:
-
HT-8GF--HT1000GF
-
Rated Voltage:
-
400/230V
-
Rated Current:
-
14.4A-1800A
-
Speed:
-
1500/1800 rpm
-
Frequency:
-
50/60Hz
-
start method:
-
electric start
-
cooling method:
-
water cooled
-
gas mixer formation:
-
Pre-Mix
-
module:
-
GU641B
-
regulator:
-
AVR
-
noise level:
-
65dBA
-
protechtion class:
-
IP23
-
Insulation class:
-
H
-
Certificate:
-
ISO,CE
Advantages of our technical spcifications:
1. An advanced high-energy ignition system, the engine ignition is reliable.
2. Using advanced electronic governor and gas regulator system, make the unit more stable and reliable.
3. Unit-specific components, convenient maintenance, low cost.
4. Good economy, low operating costs, long life unit.
5. Using high-profile cabinet, integrated treatment diagnostic techniques. explosion-proof integrated process control technology. unit to achieve multi-level protection, run more secure.
Techinical requirement of syngas power generator:
1. operation condition:
Ambient temperature: <45°c
sea level: < 1000m
Humidity ratio: <60%
2. Lubricating oil: 15w/40L-ECD suggested
3. Gas intake pressure: < 0.45 mpa
4. Impurity particle size: <5μm ,no free water
5. Content of sulfur: ≤ 250mg/Nm3
6. Metnane content(CH4): > 50%(>5500kcal)

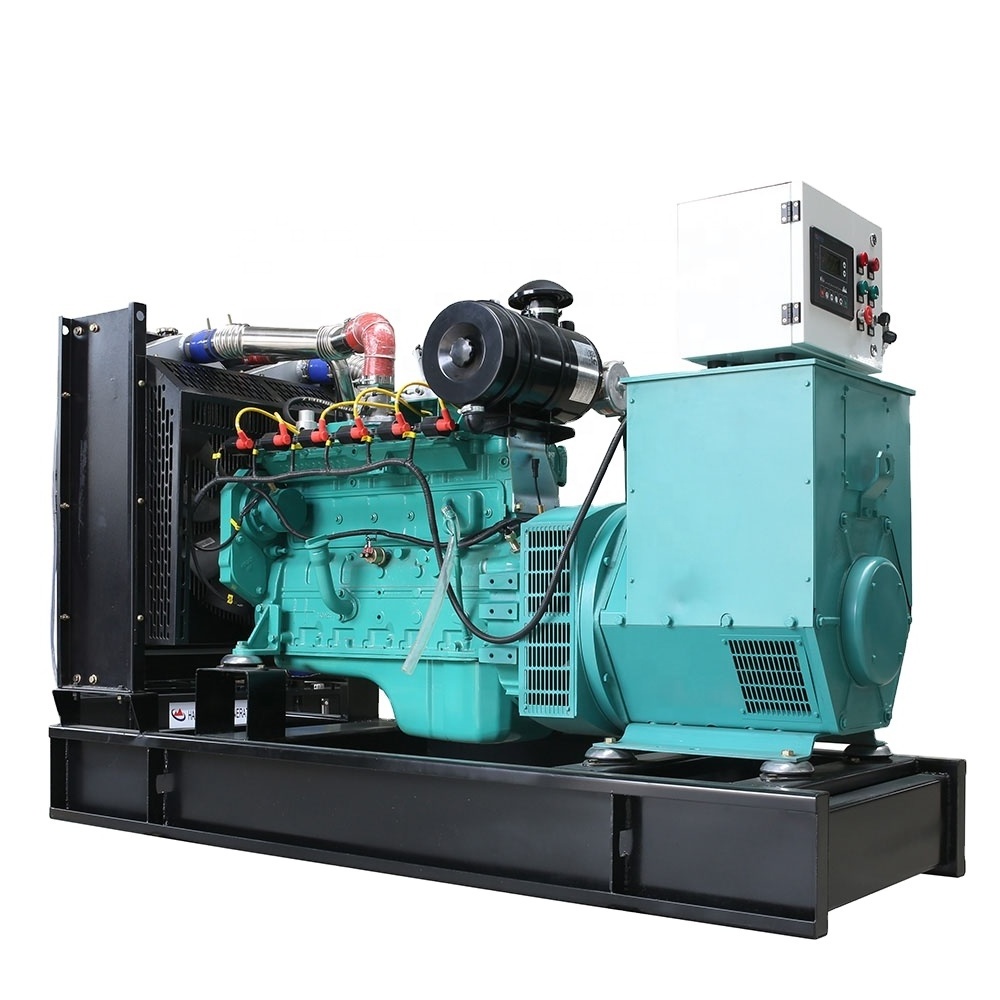

syngas power generator 10-1000kw for gasifier low/medium heating value wood gas/ straw gas/biomass/syngas
| Model | HT-8GF--HT-1000GF |
| Rated power | 8-1000kw |
| Phase No. | 3 phase or single phase |
| Rated voltage | 400/230,as your required |
| Rated frequency | 50Hz/60HZ |
| Rated current | 14.4-1800A |
| Voltage regulator | AVR |
| Start mode | 24V electrical starting |
| Speed regulation mode | Electronic Governor |
Engine datas
| Model | HT2100 | HT4100 | HT4105G | HT6105G | HT6140G | HT12V135G | HT12V138G | HT6190ZG | HT12V190ZG |
| Type | four-stroke,water cooled,electronic ignition | ||||||||
| Cylinder No. | 2 | 4 | 4 | 6 | 6 | 12 | 12 | 6 | 12 |
| Bore(mm) | 100 | 100 | 105 | 105 | 140 | 135 | 138 | 190 | 190 |
| Stroke(mm) | 115 | 115 | 125 | 125 | 160 | 150 | 150 | 210 | 210 |
| Displacement (L) | 1.81 | 3.62 | 4.5 | 6.5 | 14.78 | 25 | 26.9 | 35.7 | 71.5 |
| Rated power (kw) | 14 | 28 | 38 | 58 | 132 | 170 | 236 | 330 | 550 |
| Rated speed | 1500/1800 rpm | 1000/1200rpm | |||||||
| Gas con. | biogas<0.55 m³/kw.h,natural gas<0.3 m³/kw.biomass <1.8 m³/kw | ||||||||
The brushless alternator
| Compliance with GB755,BS5000,VDE0530,NEMA MG1-22,IEC-34,CSA C22-100and AS1359 standards | |||||||
| Brand | The brand you may choice Stamford,marathon, leroy somer,Chinese brand,etc. | ||||||
| Excitation type | brushless | ||||||
|
Number of Bearing |
1 | ||||||
| Rated current | 14.4-1800A | ||||||
| Insulation class |
H |
||||||
| Protection class | IP23 | ||||||
| Voltage regulator | AVR | ||||||
Main system configuration:
1).ALTRONIC Ignition System
-Altronic is the world biggest gas engine ignition system manufacturer,the leader of gas engine ingnition sysytem.
-Altronic iignition system can transfer low voltage to high voltage reliably,and ignite in arranged sequence and time.
2).SLITT spark plug
-SLITT is the world main industrial special spark plug manufacturer, expert in gas engine spark plug.
---The spark plug is powerful
---Reduse the repetive use of spark plug extending parts with the same cost .
---High voltage circuit insulated with surroundings.
3).Engine governing system
--High work reliablity
--High precision ,quick reaction
--Easy to operate ,rudeuce human mistakes
4)IMPCO Gas mixer
The value gas mixer could mix gases in ratio strictly according to requirements and could automatic adjust the mix ratio according to work conditions to realize rare combustion.
The control system:
| Automatic Control digital system of 24 hours monitor provides various speciations showing & protection. | |||||||||
Main function of control system:
1. Display function: loading power, voltage, currencies, frequency, speed, temperature, oil pressure, running time etc.
2. Protection function: over-current, under-voltage, auto-regulate voltage, reverse power etc.
3. optional system: AMF & ATS
Performance feature:
*Built-in damper for anti-vibration .
*Small size ,low weight, easy to operating,installation and maintenance.
*World most famous brand diesle engine .
*Advanced and reliable AC alternator :Stamford,Marathon,Leroy Somer ,MVC.
*Full range protect function and alarm shutdown feature.
Our factory:
To be the best partner of electric power equipment.
Please contact us for more information about syngas power generator.
