Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Donghe
-
Warranty:
-
1 year
-
Certificate:
-
CE,GB/T19001-2000,ISO9001:2000
-
rotary encoder:
-
analog output sensor 38mm shaft sensor 6mm incremental encoder
-
Option:
-
cable radial
-
Output circuit:
-
voltage/line driver/open collector/push pull
-
Protection Class:
-
encoder rotary IP67 IP65 IP54
-
pulse:
-
encoder 600ppr,various pulse for choice
-
shaft:
-
6mm shaft encoder
-
outer dia:
-
38mm encoder
-
signal:
-
ABZ rotary encoder
Quick Details
-
Mounting Type:
-
rotary encoder
-
Description:
-
rotary knob encoder, omron encoder
-
Model Number:
-
PIB-600-G05L
-
Place of Origin:
-
China
-
Brand Name:
-
Donghe
-
Warranty:
-
1 year
-
Certificate:
-
CE,GB/T19001-2000,ISO9001:2000
-
rotary encoder:
-
analog output sensor 38mm shaft sensor 6mm incremental encoder
-
Option:
-
cable radial
-
Output circuit:
-
voltage/line driver/open collector/push pull
-
Protection Class:
-
encoder rotary IP67 IP65 IP54
-
pulse:
-
encoder 600ppr,various pulse for choice
-
shaft:
-
6mm shaft encoder
-
outer dia:
-
38mm encoder
-
signal:
-
ABZ rotary encoder
|
Protection class
|
IP54(Standard)
|
Output frequency
|
0-200KHz
|
|
Rise/Fall time
|
≤1μS
|
Starting torque
|
1.5×10
-3
N·m (25°C)
|
|
Working temperature
|
10°C~+70°C
|
Max.shaft load radial
|
20N
|
|
Supply voltage
|
DC+5V or 5V-24V
|
Max.shaft load axial
|
10N
|
|
Storage temperature
|
-20°C~+70°C
|
Max.speed
|
6000r/min
|
|
Current consumption
|
100mA
|
Weight
|
0.1kg(without cable)
|
|
Shock resistance
|
980m/S²
|
Cable Length
|
Optional
|
|
Vibration resistance
|
50m/S²(10-200Hz)
|
Warranty
|
12 month
|
Specifications

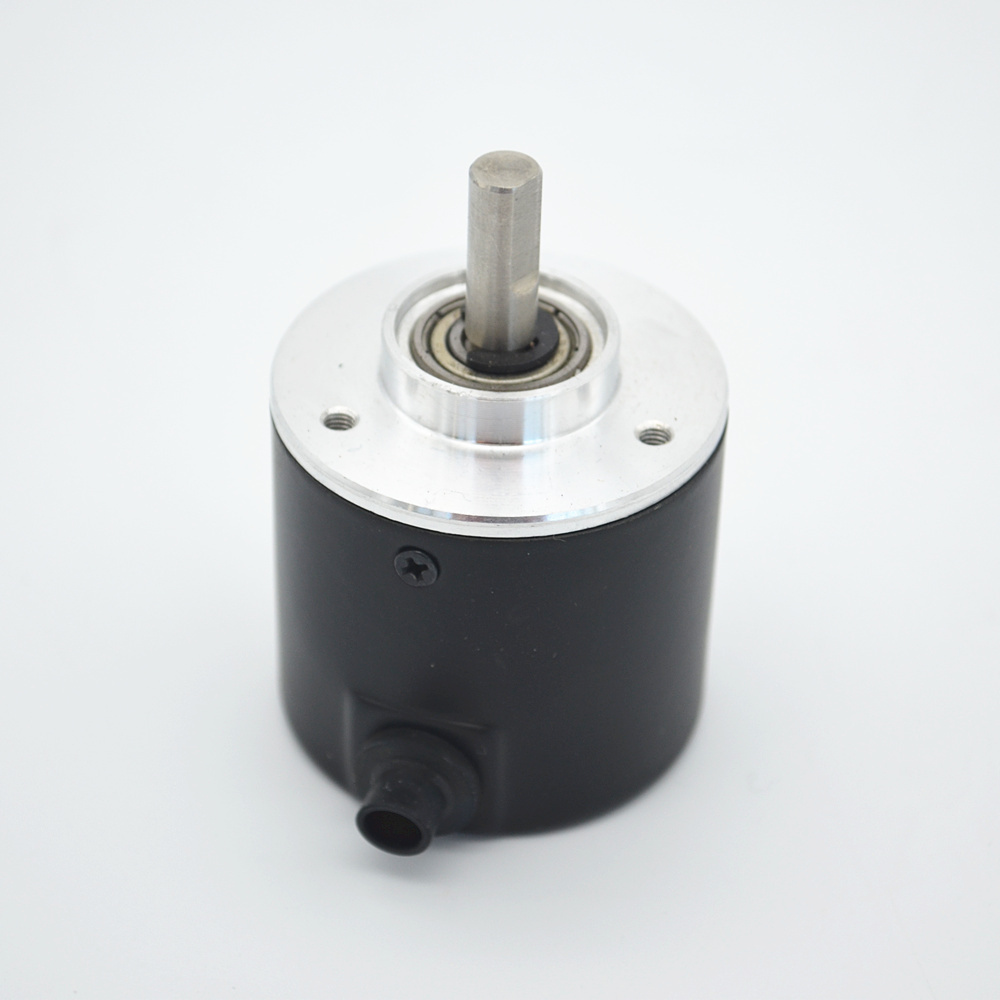

E6B2 CWZ5G Incremental Photoelectric Rotary Omron Encoder Same CWZ5B CWZ3E CWZ1X 5G
● The use of high quality components guarantees a long life cycle and high operational reliability.
● Certification:GB/T19001-2000,ISO9001:2000.
● Feature: sturdy and durable, easy to install, optional various output mode, etc.
● Manufacturer:better quality control, better delivery control and better cost control.
Changchun Donghe Optics & Electronics Co., Ltd
Changchun Donghe Optics & Electronics Co., Ltd. was established in June 1992. It has been in the field of encoder for 25 years. It engaged in product development, manufacturing, sales and after-sales services, is the leading manufacturer of encoder in China. The company focuses on the development of new products and has a professional R & D team of 20 technicians, who will continue to develop high-tech encoders. Meanwhile, customized encoders are also available.
The company manufactures hundreds of encoders. The LF, LMA, LEC, PKT and PAW series are widely used on CNC, electric motor, lift, textile equipment and etc. The products have passed the certification of GB/T19001-2000 and ISO9001:2000.
Donghe has been the domestic supplier for over 20 years for many famous companies such as Shenyang Machine Tools, SIGMA elevator, Suzhou Fuji precision elevator and so on.
Hoping to establish a friendly and long term cooperation with friends from all over the world.
1. The questions about the encoder will be answered within 24 hours.
2. One-stop solution will offer to meet all your requirements on budget, designing and shipment.
3. Update the procession of manufacturing.
4. Warranty 12 months: Free replacement of defective products within 12 months.
We produce encoder,optical encoder,magnetic encoder,motor encoder,encoder wheel,incremental encoder,rotary encoder,photoelectric encoder,absolute encoder,handwheel encoder,hollow shaft encoder,solid shaft encoder,optical encoder disk,encoder sensor,mini rotary encoder,servo motor encoder,absolute rotary encoder,quadrature encoder,dc motor encoder,elevator encoder, cnc spindle encoder , motorized rotary encoder and etc.
Q1:Can I have a sample for testing?
A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you.
Q2:Can I add my logo on the encoder ?
A:Yes,OEM and customized encoder are available for us.
Q3:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us. If it is the men-made problems,we also send the spare parts,but you should pay.
Q4 :Do you have inspection procedures for encoder ?
A:100% self-inspection before packing
Q5:Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Here is our factory address: No. 1906 04D Nanhu Road,Changchun City ,Jinlin Province.
We can pick you up in the airport.
